129415 Series
Manufacturer: Ledex Dormeyer Saia, a Division of Johnson Electric
Beta
⌘K

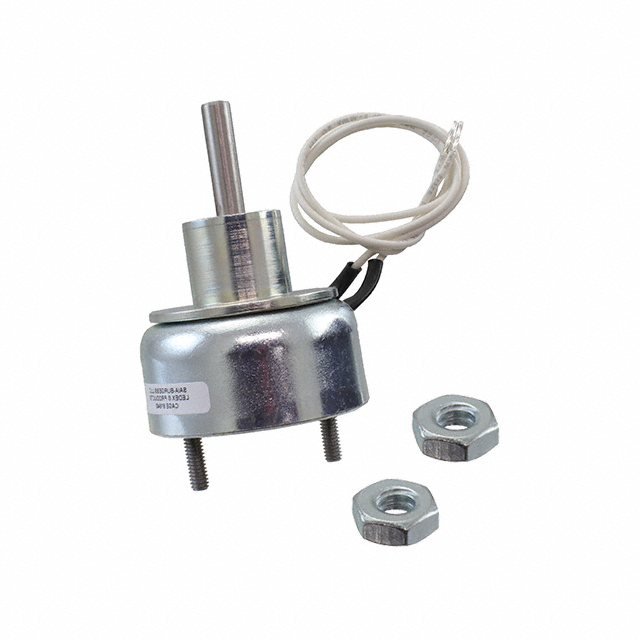

LOW PROFILE SOLENOID - 5EC 12 VD
| Part | Power (Watts) | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type | Stroke Length [x] | Stroke Length [x] | Termination Style | Technology | Duty Cycle | Shaft Detail | DC Resistance (DCR) | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Mounting Type | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ledex Dormeyer Saia, a Division of Johnson Electric | 21 W | 0.25 in | 6.35 mm | Closed Frame (Pull) Tubular | 10.16 mm | 0.4 in | Wire Leads | Electromechanical | Continuous | Round | 10.3 Ohm | 1.035 in | 47.63 mm | 26.29 mm | 1.875 in | Chassis Mount | 14 V |
