THS4513 Series

1.6-GHz, min gain 1-V/V, low-noise, low distortion fully differential amplifier

Catalog

1.6-GHz, min gain 1-V/V, low-noise, low distortion fully differential amplifier

Part	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Current - Supply	Amplifier Type	-3db Bandwidth	Voltage - Supply Span (Min) [Min]	Slew Rate	Mounting Type	Output Type	Number of Circuits	Package / Case	Supplier Device Package	Gain Bandwidth Product	Operating Temperature [Max]	Operating Temperature [Min]	Supplied Contents	Board Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Utilized IC / Part	Channels per IC	Current - Supply (Main IC)	Current - Output / Channel [custom]
Texas Instruments THS4513RGTTG4	8 µA	5.5 V	1 mV	37.7 mA	Differential	1.6 GHz	3 V	5100 V/µs	Surface Mount	Differential	1	16-VFQFN Exposed Pad	16-VQFN (3x3)	2.8 GHz	85 °C	-40 °C
Texas Instruments THS4513RGTR	8 µA	5.5 V	1 mV	37.7 mA	Differential	1.6 GHz	3 V	5100 V/µs	Surface Mount	Differential	1	16-VFQFN Exposed Pad	16-VQFN (3x3)	2.8 GHz	85 °C	-40 °C

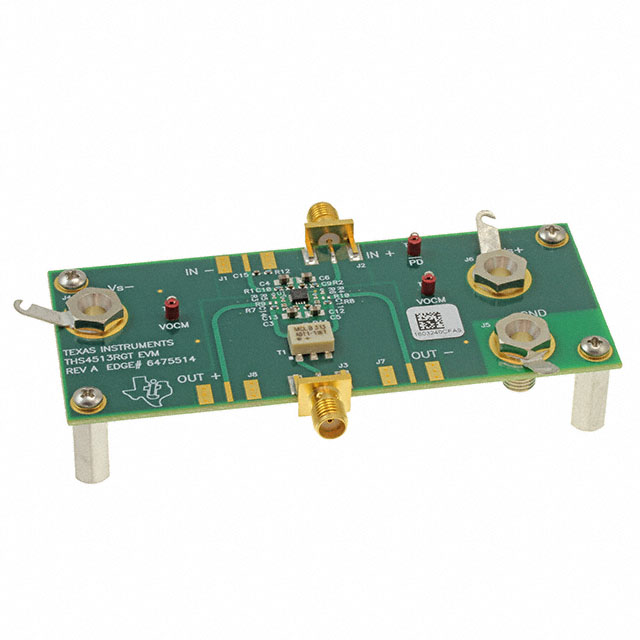

Texas Instruments THS4513EVM					Differential	1.6 GHz		5100 V/µs		Differential							Board(s)	Fully Populated	-1.5 V 3 V	2.75 V 5.5 V	THS4513	1 - Single	37.7 mA	96 mA
Texas Instruments THS4513RGTT	8 µA	5.5 V	1 mV	37.7 mA	Differential	1.6 GHz	3 V	5100 V/µs	Surface Mount	Differential	1	16-VFQFN Exposed Pad	16-VQFN (3x3)	2.8 GHz	85 °C	-40 °C								96 mA

Catalog

1.6-GHz, min gain 1-V/V, low-noise, low distortion fully differential amplifier

Key Features

• Fully-Differential ArchitectureCentered Input Common-Mode RangeMinimum Gain of 1 V/V (0 dB)Bandwidth: 1600 MHzSlew Rate: 5100 V/µs1% Settling Time: 2.9 nsHD2: –75 dBc at 70 MHzHD3: –86 dBc at 70 MHzOIP2: 77 dBm at 70 MHzOIP3: 42 dBm at 70 MHzInput Voltage Noise: 2.2 nV/√Hz(f > 10 MHz)Noise Figure: 19.8 dBOutput Common-Mode ControlPower Supply:Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)Current: 37.7 mAPower-Down Capability: 0.65 mAAPPLICATIONS5-V Data Acquisition Systems, High Linearity ADC AmplifierWireless CommunicationMedical ImagingTest and MeasurementAll trademarks are the property of their respective owners.Fully-Differential ArchitectureCentered Input Common-Mode RangeMinimum Gain of 1 V/V (0 dB)Bandwidth: 1600 MHzSlew Rate: 5100 V/µs1% Settling Time: 2.9 nsHD2: –75 dBc at 70 MHzHD3: –86 dBc at 70 MHzOIP2: 77 dBm at 70 MHzOIP3: 42 dBm at 70 MHzInput Voltage Noise: 2.2 nV/√Hz(f > 10 MHz)Noise Figure: 19.8 dBOutput Common-Mode ControlPower Supply:Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)Current: 37.7 mAPower-Down Capability: 0.65 mAAPPLICATIONS5-V Data Acquisition Systems, High Linearity ADC AmplifierWireless CommunicationMedical ImagingTest and MeasurementAll trademarks are the property of their respective owners.

Description

The THS4513 is a wideband, fully-differential op amp designed for 3.3-V to 5-V data acquisition systems. It has very low noise at 2.2 nV/√Hz, and extremely low harmonic distortion of –75 dBc HD2and –86 dBc HD3at 70 MHz with 2-VPPoutput, G = 0 dB, and 200-load. Slew rate is very high at 5100 V/μs and with settling time of 2.9 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for a minimum gain of 0 dB. To allow for dc-coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 5-mV offset (typ) from the set voltage, when set within 0.5 V of midsupply, with less than 4-mV differential offset voltage. The common-mode set point is set to midsupply by internal circuitry, which may be overdriven from an external source. The input and output are optimized for best performance with their common-mode voltages set to midsupply. Along with high performance at low power-supply voltage, this design makes it ideal for extremely high-performance, single-supply 5-V data acquisition systems. The THS4513 is offered in a quad, leadless QFN-16 package (RGT), and is characterized for operation over the full industrial temperature range from –40°C to +85°C. The THS4513 is a wideband, fully-differential op amp designed for 3.3-V to 5-V data acquisition systems. It has very low noise at 2.2 nV/√Hz, and extremely low harmonic distortion of –75 dBc HD2and –86 dBc HD3at 70 MHz with 2-VPPoutput, G = 0 dB, and 200-load. Slew rate is very high at 5100 V/μs and with settling time of 2.9 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for a minimum gain of 0 dB. To allow for dc-coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 5-mV offset (typ) from the set voltage, when set within 0.5 V of midsupply, with less than 4-mV differential offset voltage. The common-mode set point is set to midsupply by internal circuitry, which may be overdriven from an external source. The input and output are optimized for best performance with their common-mode voltages set to midsupply. Along with high performance at low power-supply voltage, this design makes it ideal for extremely high-performance, single-supply 5-V data acquisition systems. The THS4513 is offered in a quad, leadless QFN-16 package (RGT), and is characterized for operation over the full industrial temperature range from –40°C to +85°C.
