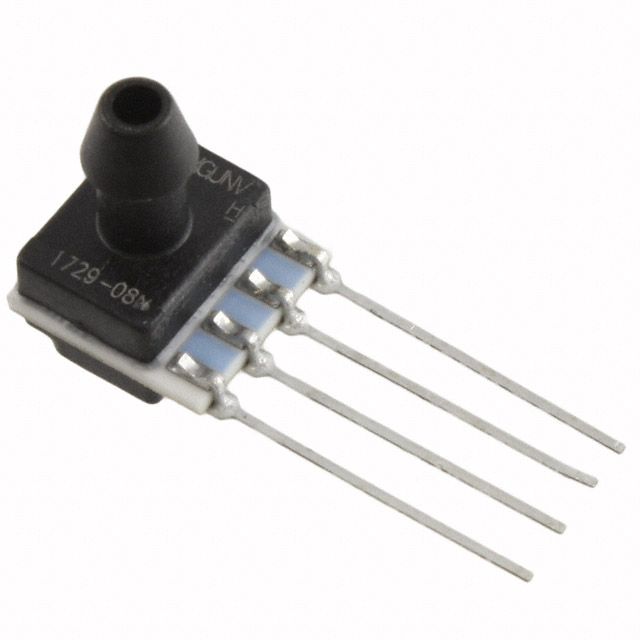

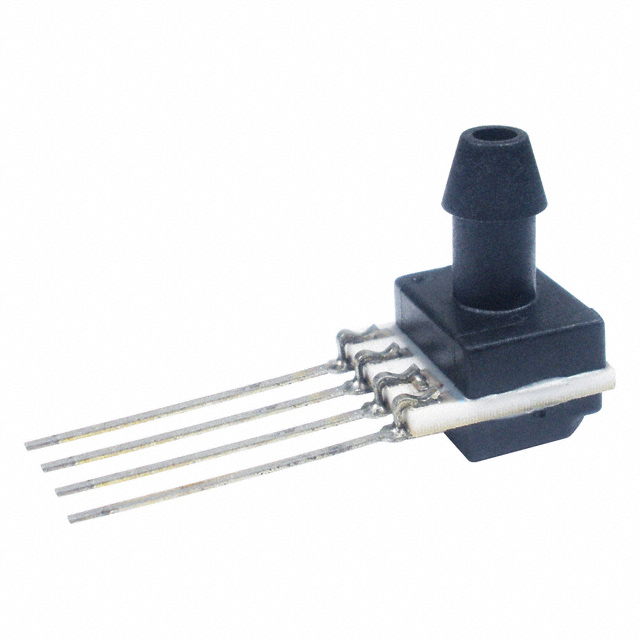

NSCSANN Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 0.87PSIG 0.19" .0285V SIP
| Part | Output [Max] | Output [Min] | Port Size | Port Size | Pressure Type | Maximum Pressure [Max] | Maximum Pressure [Max] | Port Style | Operating Temperature [Max] | Operating Temperature [Min] | Operating Pressure | Operating Pressure | Termination Style | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Accuracy | Supplier Device Package | Mounting Type | Applications | Output Type | Maximum Pressure | Maximum Pressure | Maximum Pressure | Maximum Pressure | Output | Operating Pressure [custom] | Operating Pressure [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 28.5 mV | 0 mV | 4.93 mm | 0.19 " | Vented Gauge | 12.33 PSI | 85 kPa | Barbed | 85 °C | -40 °C | 6 kPa | 0.87 PSI | PC Pin | 4-SIP Side Port | 6.5 V | 2.7 V | 0.25 % | 4-SIP | Through Hole | Board Mount | Wheatstone Bridge | |||||||
 Honeywell Sensing and Productivity Solutions | 75 mV | 0 mV | 4.93 mm | 0.19 " | Vented Gauge | Barbed | 85 °C | -40 °C | 34.47 kPa | 5 PSI | PC Pin | 4-SIP Side Port | 12 V | 1.5 V | 0.25 % | 4-SIP | Through Hole | Board Mount | Wheatstone Bridge | 20 PSI | 137.9 kPa | |||||||
Honeywell Sensing and Productivity Solutions | 155 mV | 0 mV | 4.93 mm | 0.19 " | Differential | Barbed | 85 °C | -40 °C | 103.42 kPa | 15 PSI | PC Pin | 4-SIP Side Port | 12 V | 1.5 V | 0.25 % | 4-SIP | Through Hole | Board Mount | Wheatstone Bridge | ±30PSI | ±206.84kPa | 5 V | ||||||
 Honeywell Sensing and Productivity Solutions | 45 mV | 0 mV | 4.93 mm | 0.19 " | Vented Gauge | 29.88 PSI | 206 kPa | Barbed | 85 °C | -40 °C | 60 kPa | 8.7 PSI | PC Pin | 4-SIP Side Port | 12 V | 1.5 V | 0.25 % | 4-SIP | Through Hole | Board Mount | Wheatstone Bridge | |||||||
Honeywell Sensing and Productivity Solutions | 55 mV | 0 mV | 4.93 mm | 0.19 " | 246.56 PSI | 1700 kPa | Barbed | 85 °C | -40 °C | 600 kPa | 87.02 PSI | PC Pin | 4-SIP Side Port | 12 V | 1.5 V | 0.25 % | 4-SIP | Through Hole | Board Mount | Wheatstone Bridge | ||||||||
Honeywell Sensing and Productivity Solutions | 77.5 mV | 0 mV | 4.93 mm | 0.19 " | Vented Gauge | 30 PSI | 206.84 kPa | Barbed | 85 °C | -40 °C | PC Pin | 4-SIP Side Port | 12 V | 1.5 V | 0.25 % | 4-SIP | Through Hole | Board Mount | Wheatstone Bridge | 15 PSI | 103.42 kPa |
