110-S Series

Catalog

SWITCH TOGGLE SPST 6A 125V

Part	Voltage Rating - DC	Bushing Thread	Termination Style	Voltage Rating - AC	Mounting Type	Switch Function	Actuator Type	Panel Cutout Diameter	Panel Cutout Shape	Illumination	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Circuit	Actuator Length	Electrical Life (Cycles)

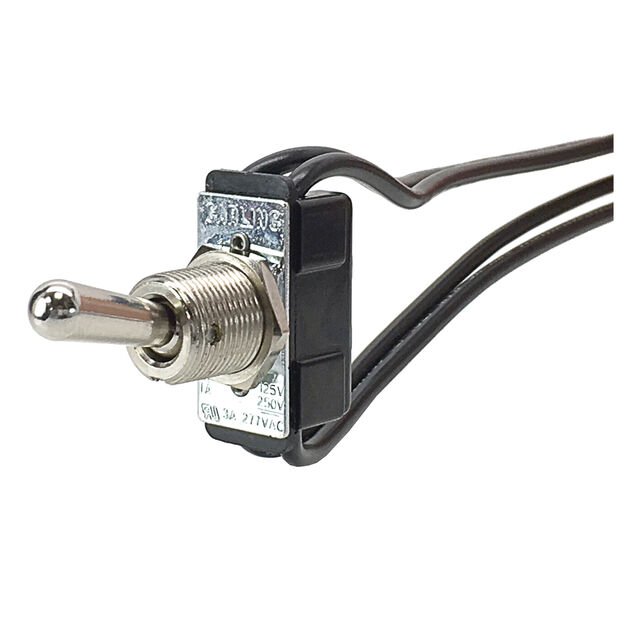

Carling Technologies 110-S-78	125 V	15/32-32	Screw Terminal	125 V	Panel Mount	On-Off	Standard Round	12.7 mm	Circular	Non-Illuminated	6 A	-17.8 °C	65.6 °C	SPST	17.45 mm	25000
Carling Technologies 110-S-25	125 V	15/32-32	Screw Terminal	125 V	Panel Mount	On-Off	Standard Round	12.7 mm	Circular	Non-Illuminated	6 A	-17.8 °C	65.6 °C	SPST	9.53 mm	25000
Carling Technologies 110-S-73/HDW ASSM	125 V	15/32-32	Screw Terminal	125 V	Panel Mount	On-Off	Standard Round	12.7 mm	Circular	Non-Illuminated	6 A	-17.8 °C	65.6 °C	SPST	17.45 mm	25000
Carling Technologies 110-S-67	125 V	15/32-32	Screw Terminal	125 V	Panel Mount	On-Off	Standard Round	12.7 mm	Circular	Non-Illuminated	6 A	-17.8 °C	65.6 °C	SPST	0.5 in	25000
Carling Technologies 110-S-25/HDW ASSM	125 V	15/32-32	Screw Terminal	125 V	Panel Mount	On-Off	Standard Round	12.7 mm	Circular	Non-Illuminated	6 A	-17.8 °C	65.6 °C	SPST	9.53 mm	25000
