S8AW Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 15A 125V
| Part | Electrical Life | Actuator Material | Panel Cutout Dimensions [diameter] | Actuator Type | Voltage Rating - AC | Mounting Type | Illumination | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Termination Style | Bushing Thread | Current Rating (Amps) | Ingress Protection | Circuit | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

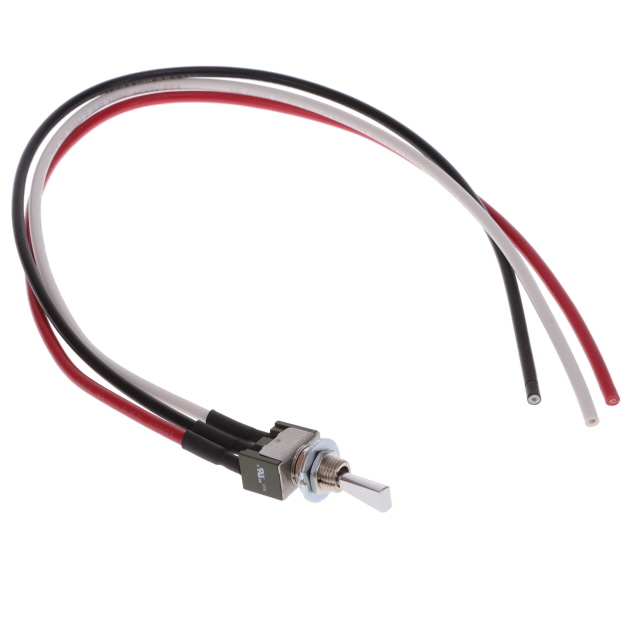

 NKK Switches | 25000 Steps | Brass Chrome Plated | 12.5 mm | Standard Round | 125 V | Panel Mount | Non-Illuminated | Mom-Off-Mom | -30 ░C | 70 °C | 30 V | Wire Leads | M12 x 1 | 15 A 20 A | IP67 - Dust Tight Waterproof | SPDT | 17.5 mm |
 NKK Switches | 25000 Steps | Brass Chrome Plated | 12.5 mm | Standard Round | 125 V | Panel Mount | Non-Illuminated | Mom-Off-Mom | -30 ░C | 70 °C | 30 V | Quick Connect - 0.250" (6.3mm) | M12 x 1 | 15 A 20 A | IP67 - Dust Tight Waterproof | SPDT | 17.5 mm |
