RL78/L1x Series

Compact LCD Microcontrollers with Low Power Consumption, Suitable for Small Appliances and Healthcare Devices

Manufacturer: Renesas Electronics Corporation

Catalog

Compact LCD Microcontrollers with Low Power Consumption, Suitable for Small Appliances and Healthcare Devices

...

Part	Peripherals	Mounting Type	Core Processor	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Program Memory Type	RAM Size	Supplier Device Package	EEPROM Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Speed	Oscillator Type	Data Converters	Number of I/O	Core Size	EEPROM Size	RAM Size	Data Converters [custom]	Data Converters [custom]	Supplier Device Package [x]	Supplier Device Package [y]
Renesas Electronics Corporation R5F111PHAFB#70	LCD LVD POR PWM WDT	Surface Mount	RL78	100-LQFP	85 °C	-40 °C	CSI I2C LINbus UART/USART	FLASH	16 K	100-LFQFP (14x14)	8 K	1.6 V	3.6 V	192 KB	24 MHz	Internal	A/D 13x8/12b D/A 2x8b	73	16-Bit
Renesas Electronics Corporation R5F10RF8AFP#X0	DMA LCD LVD POR PWM WDT	Surface Mount	RL78	44-LQFP	85 °C	-40 °C	CSI I2C LINbus UART/USART	FLASH	1 K	44-LQFP (10x10)		1.6 V	5.5 V		24 MHz	Internal	10b 7x8	29	16-Bit	2K x 8
Renesas Electronics Corporation R5F110PEGFB#50	LCD LVD POR PWM WDT	Surface Mount	RL78	100-LQFP	105 °C	-40 °C	CSI I2C LINbus UART/USART USB	FLASH	8 K	100-LFQFP (14x14)	8 K	2.4 V	5.5 V	64 KB	24 MHz	Internal	A/D 13x8/12b D/A 2x8b	69	16-Bit
Renesas Electronics Corporation R5F110PJGFB#50	LCD LVD POR PWM WDT	Surface Mount	RL78	100-LQFP	105 °C	-40 °C	CSI I2C LINbus UART/USART USB	FLASH	16 K	100-LFQFP (14x14)	8 K	2.4 V	5.5 V	256 KB	24 MHz	Internal	A/D 13x8/12b D/A 2x8b	69	16-Bit
Renesas Electronics Corporation R5F111MEAFB#50	LCD LVD POR PWM WDT	Surface Mount	RL78	80-LQFP	85 °C	-40 °C	CSI I2C LINbus UART/USART	FLASH	8 K		8 K	1.6 V	3.6 V	64 KB	24 MHz	Internal	A/D 11x8/12b D/A 2x8b	55	16-Bit
Renesas Electronics Corporation R5F10WLCGFB#70	DMA LCD LVD POR PWM WDT	Surface Mount	RL78	64-LQFP	105 °C	-40 °C	CSI I2C LINbus UART/USART	FLASH	1.5 K	64-LFQFP (10x10)		1.6 V	5.5 V	32 KB	24 MHz	External Internal	10b 9x8	44	16-Bit	4K x 8
Renesas Electronics Corporation R5F10WMEAFB#70	DMA LCD LVD POR PWM WDT	Surface Mount	RL78	80-LQFP	85 °C	-40 °C	CSI I2C LINbus UART/USART	FLASH		80-LFQFP (12x12)		1.6 V	5.5 V	64 KB	24 MHz	External Internal	12x8/10b	60	16-Bit	4K x 8	4K x 8
Renesas Electronics Corporation R5F110MEGFB#50	LCD LVD POR PWM WDT	Surface Mount	RL78	80-LQFP	105 °C	-40 °C	CSI I2C LINbus UART/USART USB	FLASH	8 K		8 K	2.4 V	5.5 V	64 KB	24 MHz	Internal		51	16-Bit			A/D 9x8/12b	D/A 2x8b
Renesas Electronics Corporation R5F10WMFAFA#50	DMA LCD LVD POR PWM WDT	Surface Mount	RL78	80-LQFP	85 °C	-40 °C	CSI I2C LINbus UART/USART	FLASH	6 K	80-LQFP		1.6 V	5.5 V	96 KB	24 MHz	Internal	12x8/10b	58	16-Bit	4K x 8				14	14
Renesas Electronics Corporation R5F111MGAFB#50	LCD LVD POR PWM WDT	Surface Mount	RL78	80-LQFP	85 °C	-40 °C	CSI I2C LINbus UART/USART	FLASH	12 K		8 K	1.6 V	3.6 V	128 KB	24 MHz	Internal	A/D 11x8/12b D/A 2x8b	55	16-Bit

Catalog

Compact LCD Microcontrollers with Low Power Consumption, Suitable for Small Appliances and Healthcare Devices

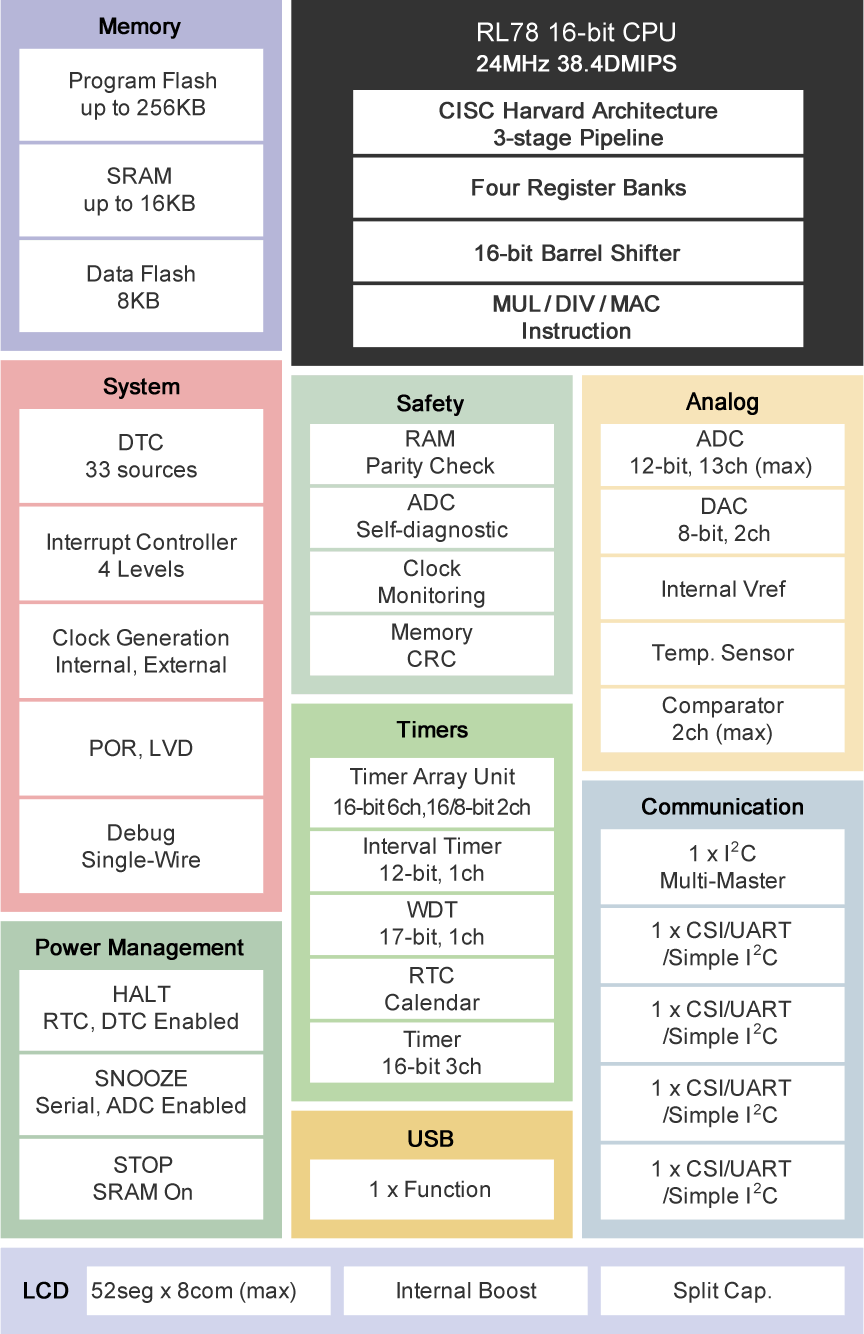

Description

RL78/L12 microcontrollers have a built-in segment LCD driver. Three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. They realize low current consumptionNote 1: external resistance division: 1.60 μANote 2, internal voltage boost: 1.19 μA, and capacitive split: 0.68 µA. With a lineup of 32 to 64-pin products supporting up to 280 segments, these microcontrollers are perfect for small devices with built-in LCD panels such as small appliances and healthcare devices. Note 1: Current (typ.) at 1/3 bias, subclock operation, HALT mode, and RTC operation. Note 2: Resistance value for external resistance division = 1000 kΩ.
