TA45 Series

Circuit Breakers CBE TA45-A146L050C0

Manufacturer: SCHURTER Inc.

Catalog

Circuit Breakers CBE TA45-A146L050C0

Catalog

Circuit Breakers CBE TA45-A146L050C0

...

Part	Breaker Type	Actuator Type	Mounting Type	Current Rating (Amps)	Voltage Rating - DC	Approval Agency	Voltage Rating - AC	Number of Poles	Illumination Voltage (Nominal)	Illumination
SCHURTER Inc. 4430.0012	Thermal	Rocker	Panel Mount	6 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2
SCHURTER Inc. 4430.3321	Thermal	Rocker	Panel Mount	15 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2
SCHURTER Inc. 4430.0385	Thermal	Rocker	Panel Mount	10 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2	220 V	Clear
SCHURTER Inc. 4430.4053

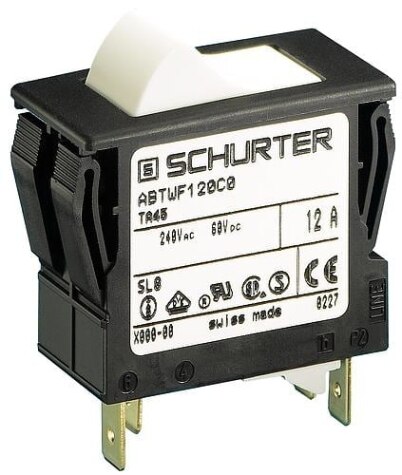

SCHURTER Inc. 4430.3790	Thermal	Rocker	Panel Mount	10 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2	110 V	Clear

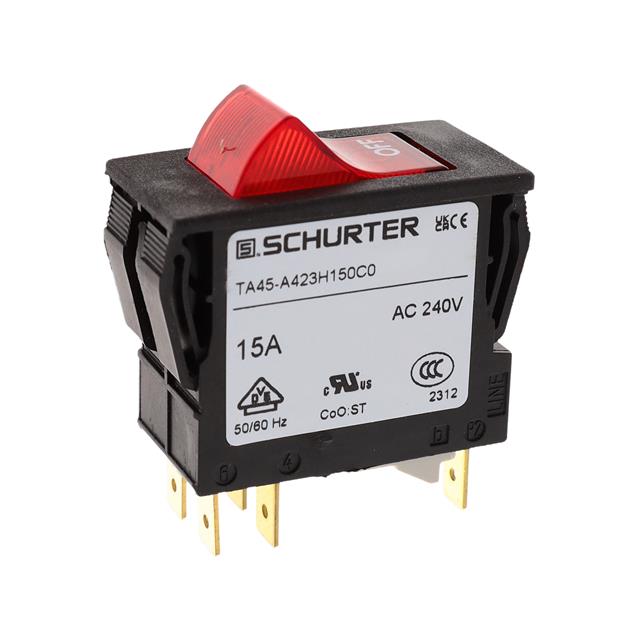

SCHURTER Inc. 4430.3709	Thermal	Rocker	Panel Mount	15 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2	220 V	Red
SCHURTER Inc. 4430.1404	Thermal	Rocker	Panel Mount	5 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2	220 V	Red
SCHURTER Inc. 4430.2132	Thermal	Rocker	Panel Mount	1.6 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2
SCHURTER Inc. 4430.1220	Thermal	Rocker	Panel Mount	9 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2
SCHURTER Inc. 4430.2806	Thermal	Rocker	Panel Mount	18 A	60 VDC	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	240 V	2	110 V	Clear
