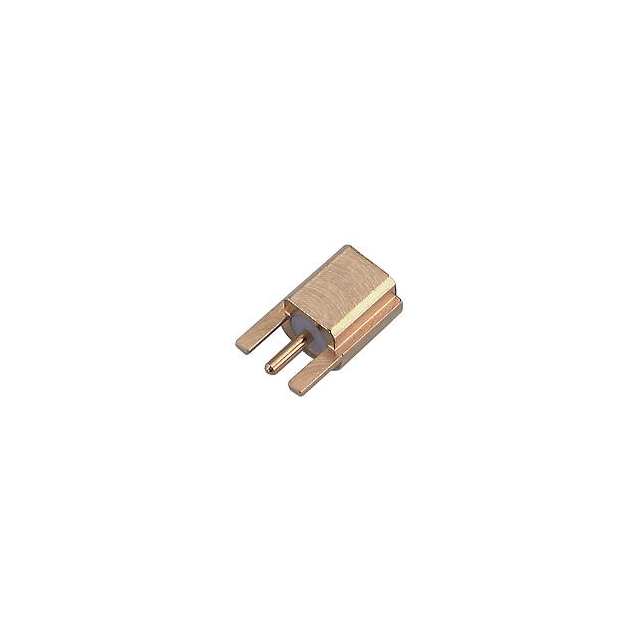

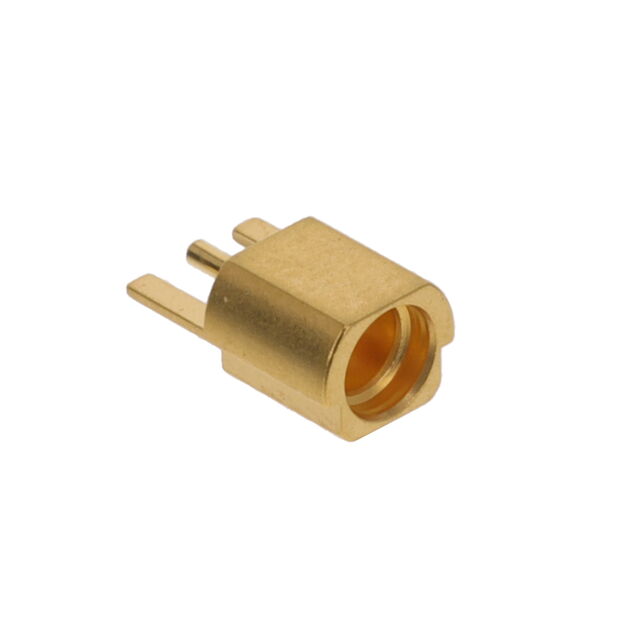

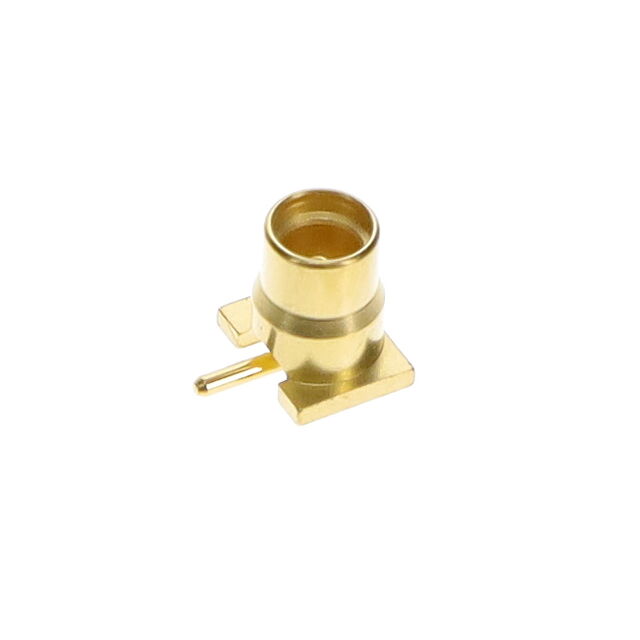

82_MMCX Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Center Contact Plating | Body Finish | Body Material | Voltage Rating | Dielectric Material | Contact Termination | Center Contact Material | Shield Termination | Housing Color | Number of Ports | Fastening Type | Connector Style | Impedance | Mounting Type | Connector Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 155 C | -55 C | 500 | Gold | Gold | Brass | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Solder | Gold | 1 | Snap-On | MMCX | 50 Ohms | Through Hole | Female Socket Jack | 6000 MHz |
 Huber+Suhner, Inc. | 90 °C | -40 C | 500 | Gold | Gold | Liquid Crystal Polymer (LCP) | 170 V | Solder | Bronze | Solder | Gold | 1 | Snap-On | MMCX | 50 Ohms | Surface Mount | Female Socket Jack | 6000 MHz | |
 Huber+Suhner, Inc. | 155 C | -55 C | 500 | Gold | Gold | Brass | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Solder | Gold | 1 | Snap-On | MMCX | 50 Ohms | Board Edge Cutout Surface Mount | Female Socket Jack | 6000 MHz |
 Huber+Suhner, Inc. | 155 C | -55 C | 500 | Gold | Gold | Brass | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Solder | Gold | 1 | Snap-On | MMCX | 50 Ohms | Board Edge Cutout Through Hole | Female Socket Jack | 6000 MHz |
 Huber+Suhner, Inc. | 155 C | -55 C | 500 | Gold | Gold | Brass | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Solder | Gold | 1 | Snap-On | MMCX | 50 Ohms | Surface Mount | Female Socket Jack | 6000 MHz |
 Huber+Suhner, Inc. | 155 C | -55 C | 500 | Gold | Gold | Brass | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Solder | Gold | 1 | Snap-On | MMCX | 50 Ohms | Surface Mount Through Hole | Female Socket Jack | 6000 MHz |
Huber+Suhner, Inc. | 155 C | -55 C | 500 | Gold | Gold | Brass | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Solder | Gold | 1 | Snap-On | MMCX | 50 Ohms | Board Edge Cutout Surface Mount | Female Socket Jack | 6000 MHz |
