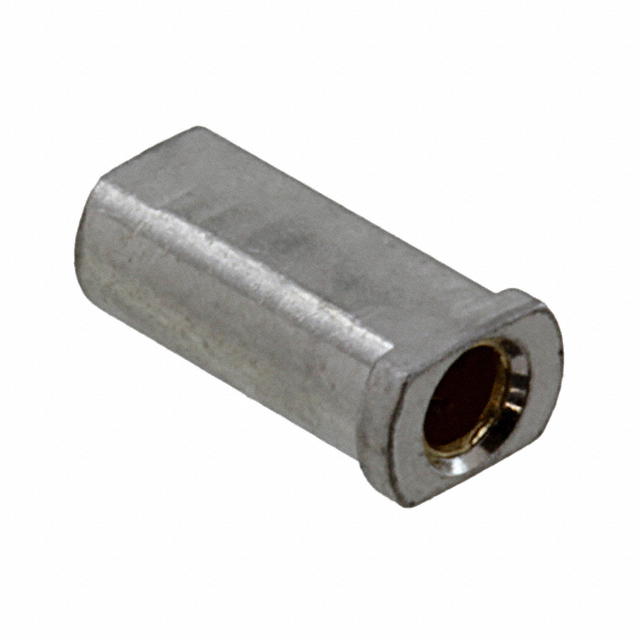

6628-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Tail Type
Mill-Max Manufacturing Corp. 6628-0-18-15-18-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Gold	0.043 in	1.09 mm	0.94 mm	0.037 in	1.37 mm	0.054 in	Beryllium Copper	0.2 in	5.08 mm	2.67 mm	0.105 in	Surface Mount	No Tail
Mill-Max Manufacturing Corp. 6628-0-18-80-18-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Gold	0.043 in	1.09 mm	0.94 mm	0.037 in	1.37 mm	0.054 in	Beryllium Copper	0.2 in	5.08 mm	2.67 mm	0.105 in	Surface Mount	No Tail
Mill-Max Manufacturing Corp. 6628-0-18-01-18-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Gold	0.043 in	1.09 mm	0.94 mm	0.037 in	1.37 mm	0.054 in	Beryllium Copper	0.2 in	5.08 mm	2.67 mm	0.105 in	Surface Mount	No Tail
Mill-Max Manufacturing Corp. 6628-0-18-80-18-80-10-0	-55 C	125 °C	5.08 Ám	200 Áin	Tin	0.043 in	1.09 mm	0.94 mm	0.037 in	1.37 mm	0.054 in	Beryllium Copper	0.2 in	5.08 mm	2.67 mm	0.105 in	Surface Mount	No Tail
Mill-Max Manufacturing Corp. 6628-0-18-15-18-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Gold	0.043 in	1.09 mm	0.94 mm	0.037 in	1.37 mm	0.054 in	Beryllium Copper	0.2 in	5.08 mm	2.67 mm	0.105 in	Surface Mount	No Tail
Mill-Max Manufacturing Corp. 6628-0-18-01-18-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Gold	0.043 in	1.09 mm	0.94 mm	0.037 in	1.37 mm	0.054 in	Beryllium Copper	0.2 in	5.08 mm	2.67 mm	0.105 in	Surface Mount	No Tail
