WP503 Series

Catalog

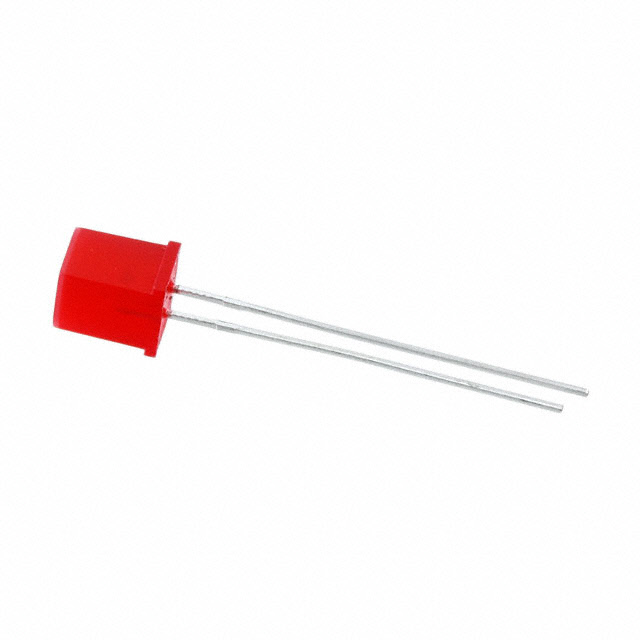

STANDARD LEDS - THROUGH HOLE RED DIFFUSED SQUARE

Part	Color	Lens Size	Wavelength - Peak	Package / Case	Height (Max) [z]	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Millicandela Rating	Lens Style	Configuration	Mounting Type	Viewing Angle	Current - Test	Supplier Device Package

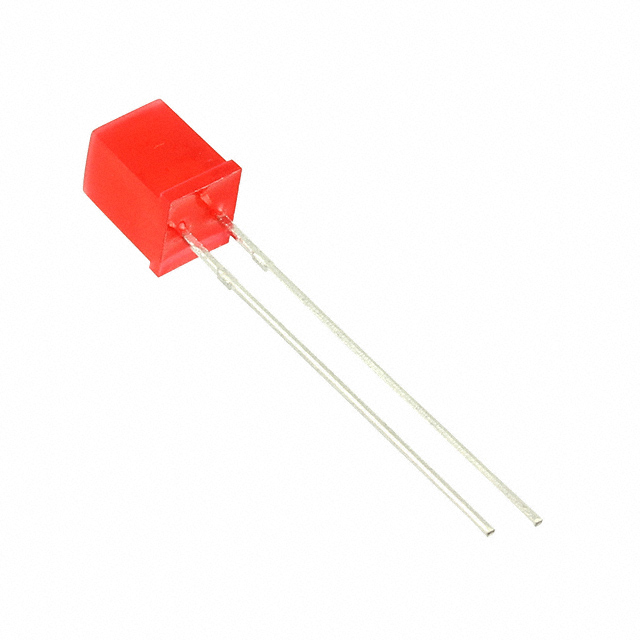

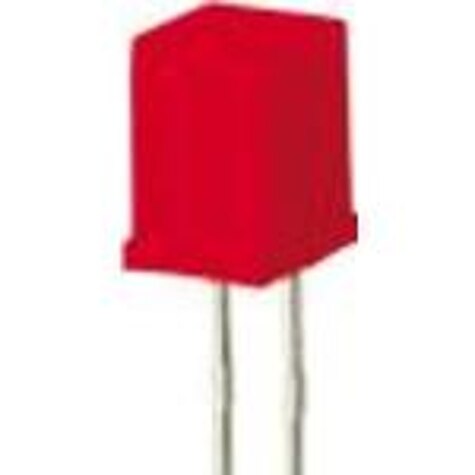

Kingbright WP503HDT	Red	5 mm	700 nm	Radial	7.2 mm	Diffused	6 mm	5 mm	Red	2.25 V	635 nm	0.8 mcd	Square with Flat Top	Standard	Through Hole	110 °	20 mA	Square Type LED

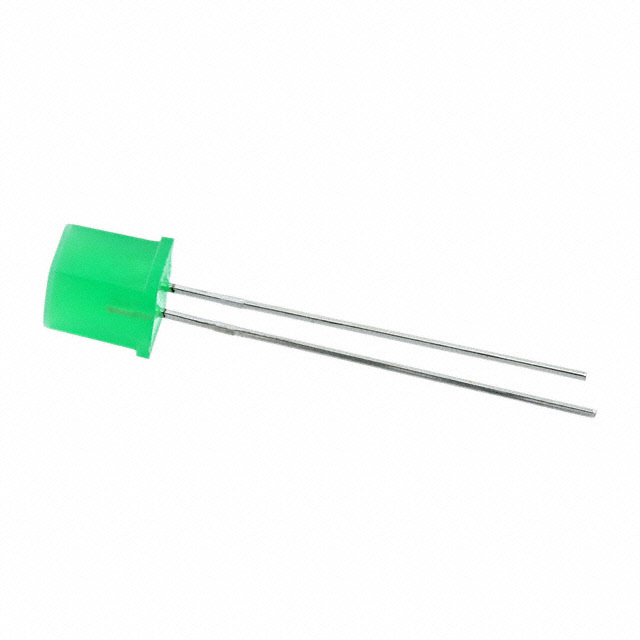

Kingbright WP503GDT	Green	5 mm	565 nm	Radial	7.2 mm	Diffused	6 mm	5 mm	Green	2.2 V	568 nm	3 mcd	Square with Flat Top	Standard	Through Hole	110 °	20 mA	Square Type LED

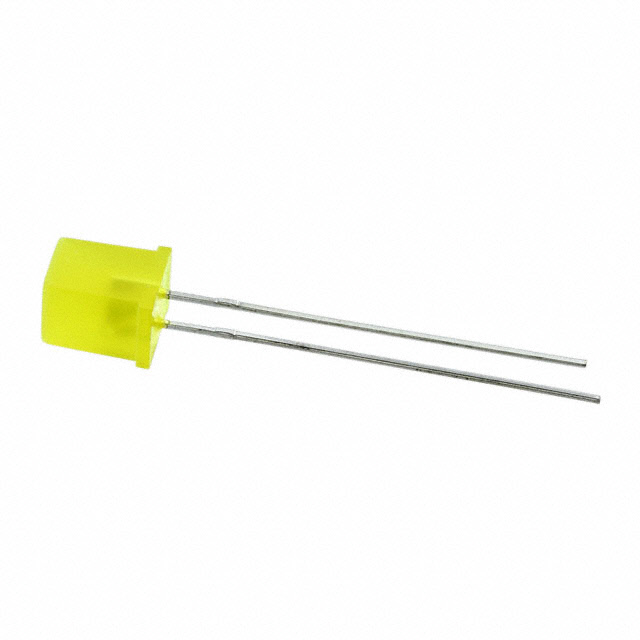

Kingbright WP503YDT	Yellow	5 mm	590 nm	Radial	7.2 mm	Diffused	6 mm	5 mm	Yellow	2.1 V	588 nm	3 mcd	Square with Flat Top	Standard	Through Hole	110 °	20 mA	Square Type LED
Kingbright WP503IDT	Red	5 mm	627 nm	Radial	7.2 mm	Diffused	6 mm	5 mm	Red	2 V	617 nm	2 mcd	Square with Flat Top	Standard	Through Hole	110 °	20 mA	Square Type LED
