M2013B2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Actuator Length [x]	Circuit	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Current Rating (Amps)	Voltage Rating - AC	Bushing Thread	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Features
NKK Switches M2013B2B1W01-VA-AT401S	25000 Steps	Brass Chrome Plated	17.5 mm	SPDT	Solder Lug	Panel Mount	85 °C	-30 ░C	Non-Illuminated	3 A 6 A	125 V	M12 x 1	On-Off-On	Standard Round with Cap	12.5 mm	30 V

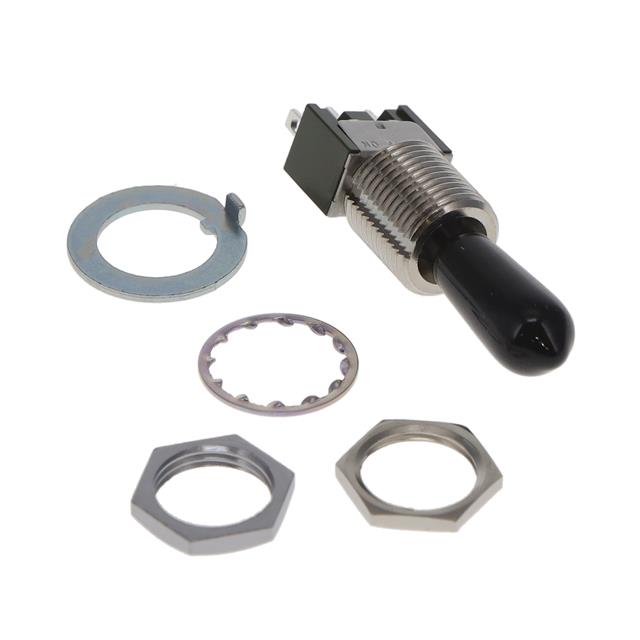

NKK Switches M2013B2B1W01-VA	25000 Steps	Brass Chrome Plated	17.5 mm	SPDT	Solder Lug	Panel Mount	85 °C	-30 ░C	Non-Illuminated	3 A 6 A	125 V	M12 x 1	On-Off-On	Standard Round with Cap	12.5 mm	30 V	Black Cap

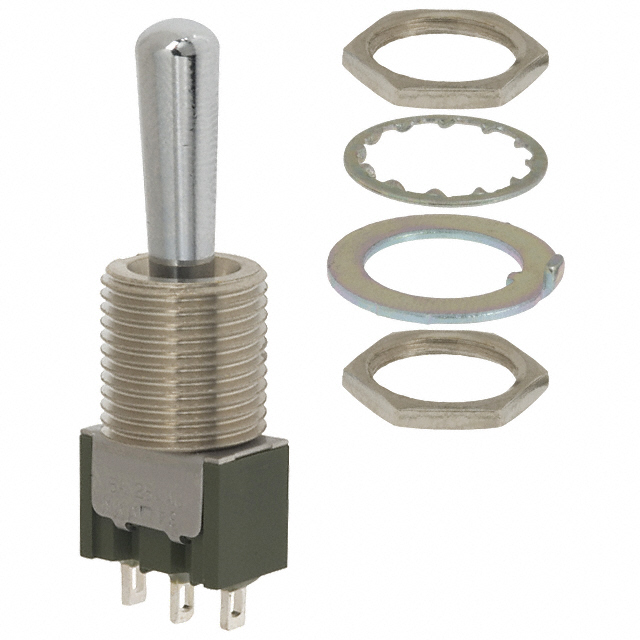

NKK Switches M2013B2B1W01	25000 Steps	Brass Chrome Plated	17.5 mm	SPDT	Solder Lug	Panel Mount	85 °C	-30 ░C	Non-Illuminated	3 A 6 A	125 V	M12 x 1	On-Off-On	Standard Round	12.5 mm	30 V	Epoxy Sealed Terminals
NKK Switches M2013B2B1A06	25000 Steps	Brass Chrome Plated	17.5 mm	SPDT	Wire Wrap	Panel Mount	85 °C	-30 ░C	Non-Illuminated	3 A 6 A	125 V	M12 x 1	On-Off-On	Standard Round	12.5 mm	30 V	Epoxy Sealed Terminals
NKK Switches M2013B2B1W03	25000 Steps	Brass Chrome Plated	17.5 mm	SPDT	PC Pin	Panel Mount	85 °C	-30 ░C	Non-Illuminated	3 A 6 A	125 V	M12 x 1	On-Off-On	Standard Round	12.5 mm	30 V	Epoxy Sealed Terminals
NKK Switches M2013B2B1W01-AT4181	25000 Steps	Brass Chrome Plated	17.5 mm	SPDT	Solder Lug	Panel Mount	85 °C	-30 ░C	Non-Illuminated	3 A 6 A	125 V	M12 x 1	On-Off-On	Standard Round	12.5 mm	30 V
NKK Switches M2013B2B1A06-AT401S	50000 Cycles	Brass Chrome Plated	17.5 mm	SPDT	Wire Wrap	Panel Mount	85 °C	-30 ░C	Non-Illuminated	0.4 VA	28 V	M12 x 1	On-Off-On	Standard Round	12.5 mm	28 V
