16505 Series
Manufacturer: Laird Thermal Systems, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
THERMOELECTRIC PELTIER MODULES 2SC-190-10-13-08-20-TAR-W6
| Part | Features | Voltage - Max | Size / Dimension Width | Size / Dimension Shape | Size / Dimension Length | Number of Stages | Height | Operating Temperature | Delta Tmax | Maximum Power Dissipation (Qmax) | Current - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|

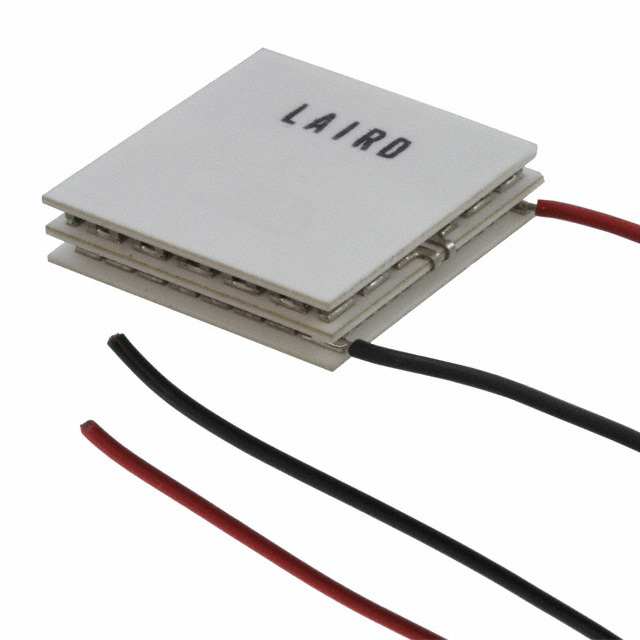

Laird Thermal Systems, Inc. | Lead Wires Sealed Silicone RTV | 15.6 V | 30 mm | Square | 30 mm | 3 | 6.04 mm | ||||

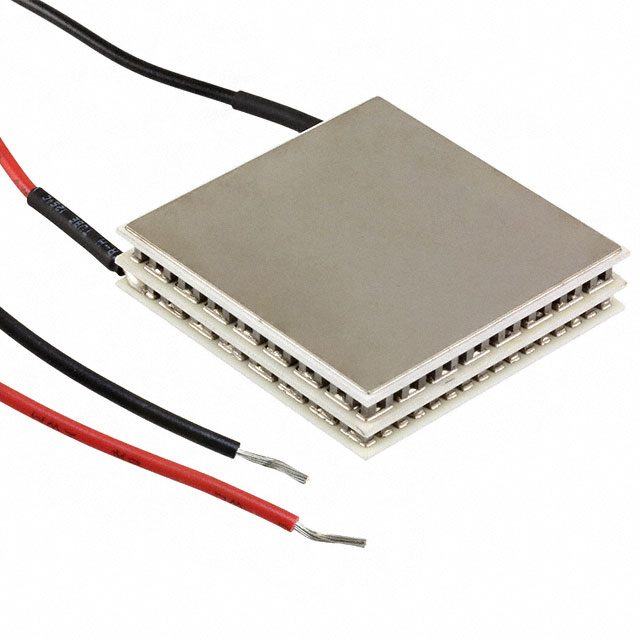

 Laird Thermal Systems, Inc. | Lead Wires Non-Sealed | 15.6 V | 30 mm | Square | 30 mm | 2 | 6.45 mm | 80 °C | 87 °C | 16.4 W | 2.8 A |
