97139 Series
Manufacturer: Pflitsch
Beta
⌘K

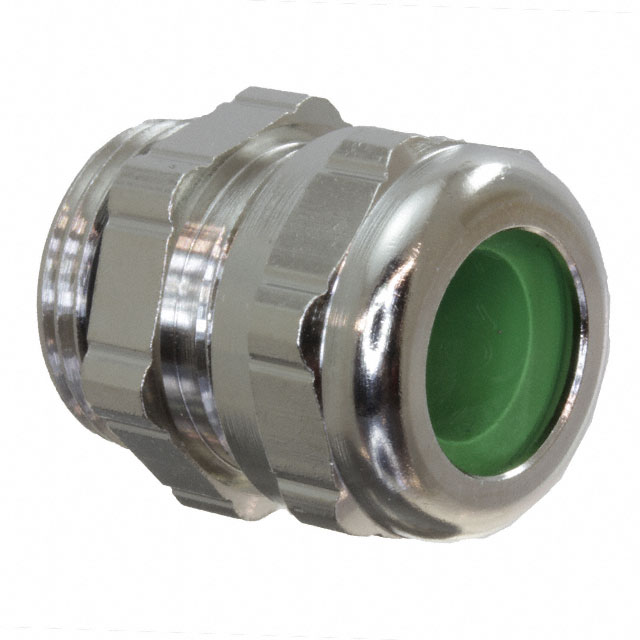

CABLE GLAND 6.86-10.41MM M20
| Part | Ingress Protection | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Max) | Outside Cable Diameter (Min) | Outside Cable Diameter (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Type | Includes | Thread Size | Thread Length | Thread Length | Panel Hole Size | Panel Hole Size | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | IP68 - Dust Tight Waterproof NEMA 4X | 0.41 in | 10.41 mm | 6.86 mm | 0.27 in | -40 C | 300 °C | Silver | Cable Gland | Sealing Ring | M20x1.5 | 6.1 mm | 0.24 in | 20.1 mm | 0.79 in | Brass Nickel Plated |
