ULV7 Series

Manufacturer: E-Switch

Catalog

PUSHBUTTON SWITCHES ANTI-VANDAL, 3A 250VAC, SPDT ON-(ON), PANEL MOUNT, FRONT DETACHABLE SOCKET W/ WIRE LEADS 500MM

Part	Switch Function	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Type	Mounting Type	Ingress Protection	Illumination Voltage (Nominal)	Current Rating (Amps)	Actuator Type	Circuit	Illumination Type, Color	Electrical Life	Mechanical Life	Termination Style	Actuator Marking
E-Switch ULV7FPB11345	On-Mom	Black	55 °C	-20 ░C	125 V	22.2 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	3 A	Button Flush Round	SPDT	Blue LED

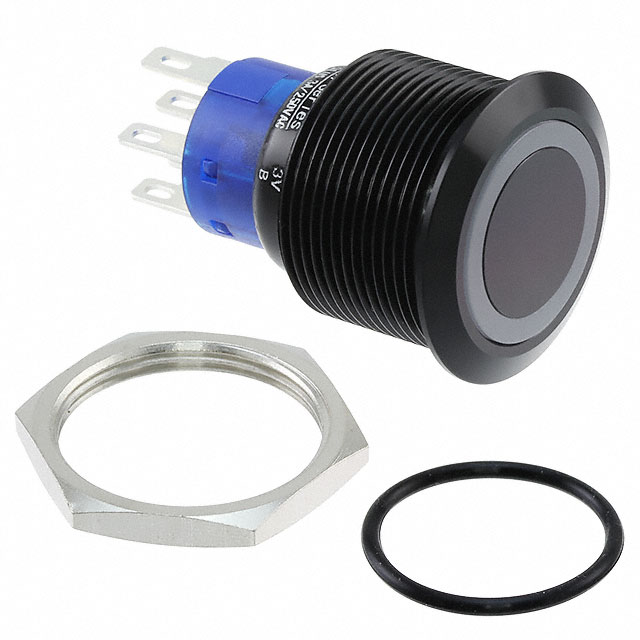

E-Switch ULV7F2H11341	On-Mom	Black	55 °C	-20 ░C	250 V	22.2 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	3 VDC	3 A	Button Flush Round	DPDT	Blue LED	50000 Cycles	1000000 Cycles	Solder Quick Connect - 0.110" (2.8mm)	No Marking

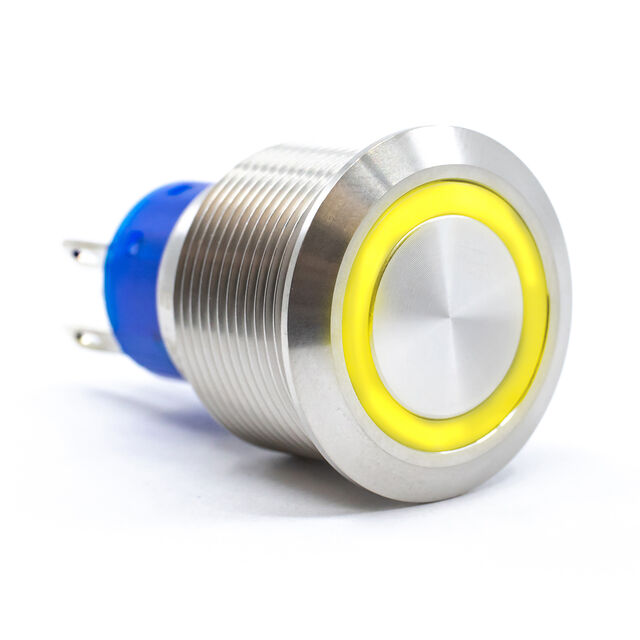

E-Switch ULV7F2BSS351	On-Mom	Silver	55 °C	-20 ░C	125 V	22 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	3 VDC	3 A	Button Flush Round	SPDT	LED Yellow	50000 Cycles	500000 Cycles	Solder Quick Connect - 0.110" (2.8mm)
E-Switch ULV7F2G11344	On-On	Black	55 °C	-20 ░C	125 V	22.2 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	12 VDC	3 A	Button Flush Round	DPDT	Blue LED			Solder Quick Connect - 0.110" (2.8mm)

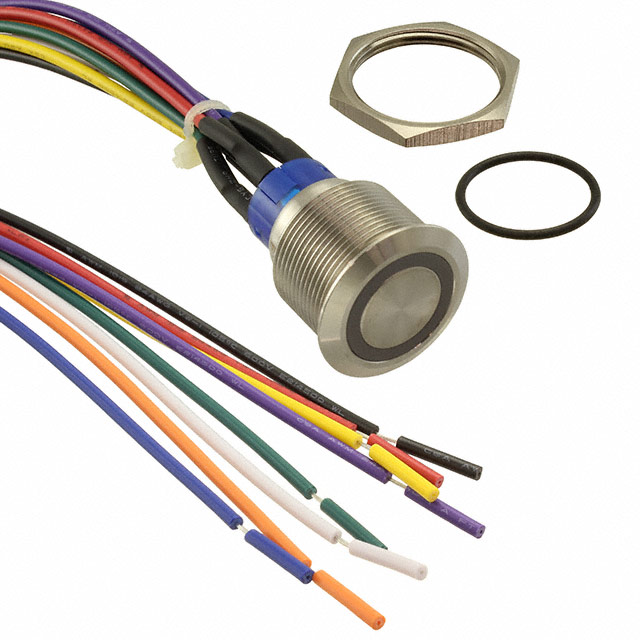

E-Switch ULV7FWGSS355	On-On	Silver	55 °C	-20 ░C	125 V	22.2 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	24 V	3 A	Button Flush Round	DPDT	LED Yellow			Wire Leads
E-Switch ULV7F2G11341	On-On	Black	55 °C	-20 ░C	250 V	22.2 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	3 VDC	3 A	Button Flush Round	DPDT	Blue LED	50000 Cycles	500000 Cycles	Solder Quick Connect - 0.110" (2.8mm)	No Marking

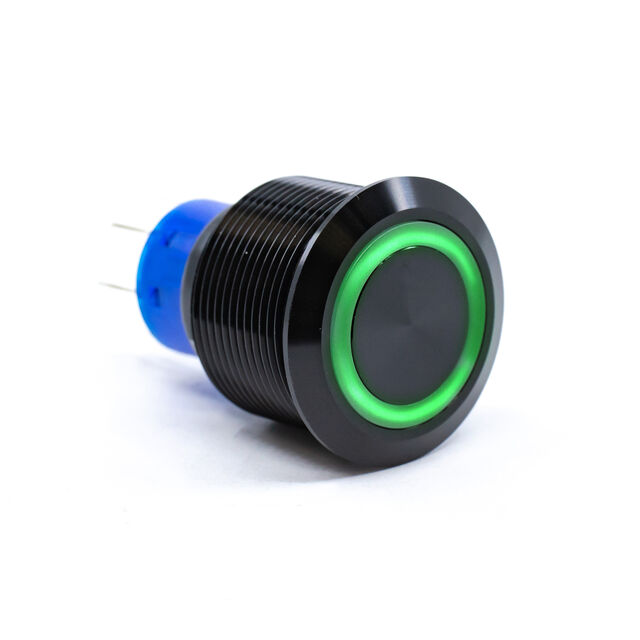

E-Switch ULV7F2G11331	On-On	Black	55 °C	-20 ░C	125 V	22 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	3 VDC	3 A	Button Flush Round	DPDT	Green LED	50000 Cycles	1000000 Cycles	Solder Quick Connect - 0.110" (2.8mm)
E-Switch ULV7F2HSLL16L21	On-Mom	Silver	55 °C	-20 ░C	125 V	22 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	110 VAC	3 A	Button Flush Round	DPDT	LED Red	50000 Cycles	1000000 Cycles	Solder Quick Connect - 0.110" (2.8mm)	No Marking
E-Switch ULV7F2HSLL37L22	On-Mom	Silver	55 °C	-20 ░C	125 V	22 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	220 VAC	3 A	Button Flush Round	DPDT	Green LED	50000 Cycles	1000000 Cycles	Solder Quick Connect - 0.110" (2.8mm)	No Marking

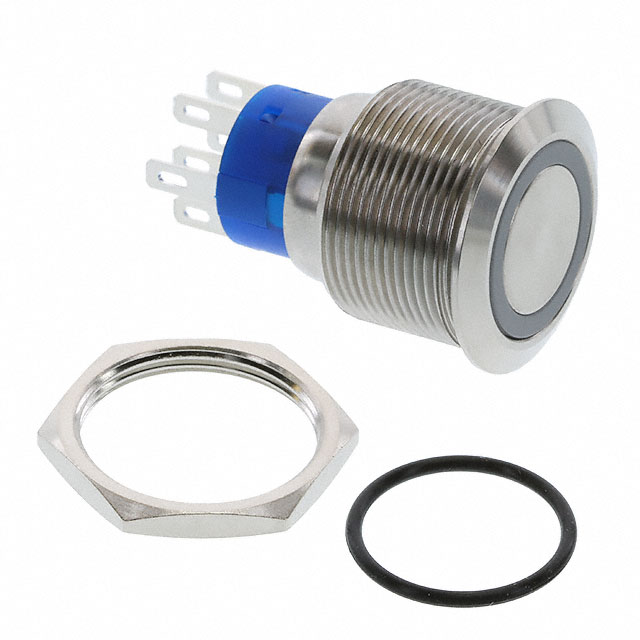

E-Switch ULV7F2GSS341	On-On	Silver	55 °C	-20 ░C	250 V	22.2 mm	Anti-Vandal Illuminated	Panel Mount Front	IP67 - Dust Tight Waterproof	3 VDC	3 A	Button Flush Round	DPDT	Blue LED	50000 Cycles	500000 Cycles	Solder Quick Connect - 0.110" (2.8mm)	No Marking
