JN2DS04F Series

Catalog

CONN PLUG FMALE 4P SOLDER CUP

Part	Connector Type	Orientation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Ingress Protection	Shell Material	Current Rating (Amps)	Features	Color	Insert Material	Primary Material	Mounting Type	Shell Finish	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Number of Positions	Backshell Material, Plating	Shell Size - Insert	Contact Finish - Mating	Voltage Rating	Cable Opening [Max]	Orientation [x]

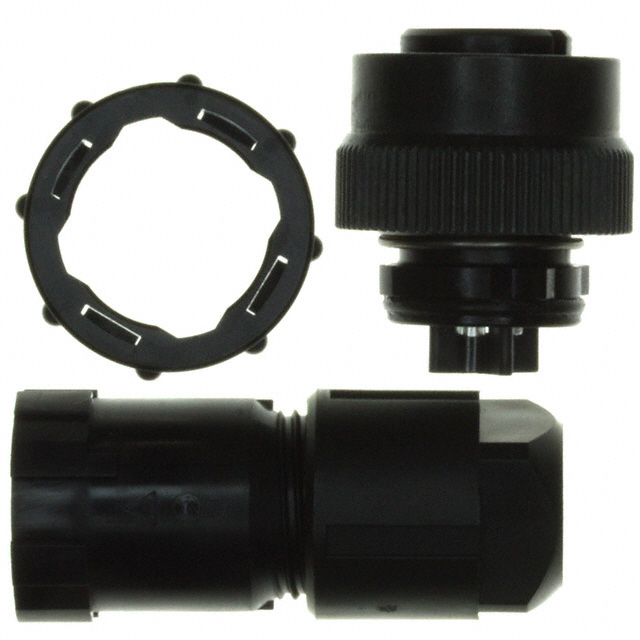

JAE Electronics JN2DS04FK2-R	Plug Female Sockets	N (Normal)	Copper Alloy	-20 ░C	100 °C	Push-Twist	IP67 - Dust Tight Waterproof	Zinc Alloy	5 A	Backshell Coupling Nut	Black	Synthetic Resin	Metal	Free Hanging (In-Line)	Zinc	0.315 in	6.5 mm	8 mm	0.256 in	4	Synthetic Resin	S	Silver	200 VAC

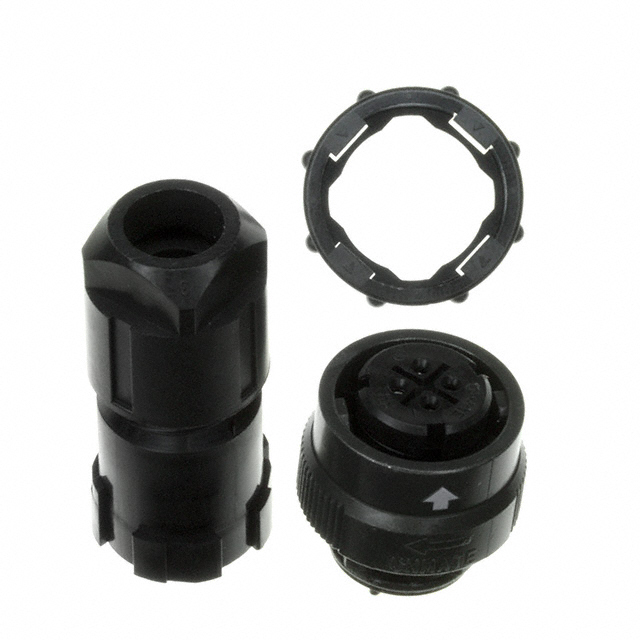

JAE Electronics JN2DS04FK1-R	Plug Female Sockets	N (Normal)	Copper Alloy	-20 ░C	100 °C	Push-Twist	IP67 - Dust Tight Waterproof	Zinc Alloy	5 A	Backshell Coupling Nut	Black	Synthetic Resin	Metal	Free Hanging (In-Line)	Zinc	0.287 "	5.7 mm		0.224 "	4	Synthetic Resin	S	Silver	200 VAC	7.3 mm
JAE Electronics JN2DS04FK1X-R	Plug Female Sockets		Copper Alloy	-20 ░C	100 °C	Push-Twist	IP67 - Dust Tight Waterproof	Zinc Alloy	5 A	Backshell Coupling Nut	Black	Synthetic Resin	Metal	Free Hanging (In-Line)	Zinc	0.287 "	5.7 mm		0.224 "	4	Synthetic Resin	S	Silver	200 VAC	7.3 mm	X

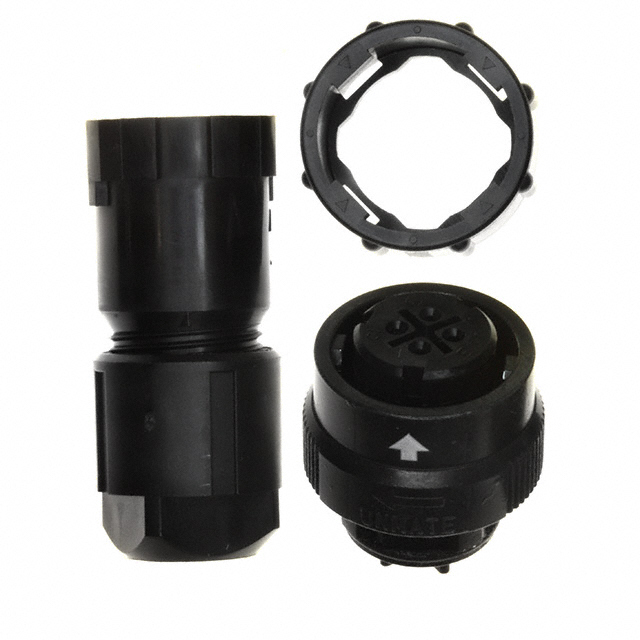

JAE Electronics JN2DS04FK2X-R	Plug Female Sockets		Copper Alloy	-20 ░C	100 °C	Push-Twist	IP67 - Dust Tight Waterproof	Zinc Alloy	5 A	Backshell Coupling Nut	Black	Synthetic Resin	Metal	Free Hanging (In-Line)	Zinc	0.315 in	6.5 mm	8 mm	0.256 in	4	Synthetic Resin	S	Silver	200 VAC		X
