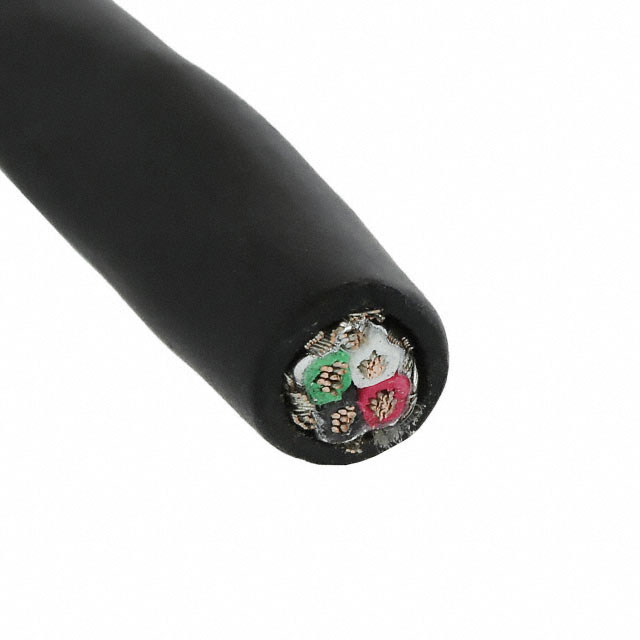

25164 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
XTRA-GUARD 2 /BULK FT /FT ROHS COMPLIANT: YES
| Part | Shield Coverage | Shield Material | Voltage | Ratings | Jacket Color | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Number of Conductors | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Cable Type | Wire Gauge | Conductor Material | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 300 VDC | ISO 10993 UL Style 20668 | Black | Polyurethane (PU) | -30 ░C | 90 °C | 0.813 mm | 0.032 in | 16 | 30 AWG | 304.8 m | 1000 ft | 4 | Poly-Vinyl Chloride (PVC) | 0.287 in | 7.29 mm | Biological Compatibility Drain Wire Rip Cord | Multi-Conductor | 18 AWG | Copper Tinned | Braid Foil | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 300 VDC | ISO 10993 UL Style 20668 | Black | Polyurethane (PU) | -30 ░C | 90 °C | 0.813 mm | 0.032 in | 16 | 30 AWG | 4 | Poly-Vinyl Chloride (PVC) | 0.287 in | 7.29 mm | Biological Compatibility Drain Wire Rip Cord | Multi-Conductor | 18 AWG | Copper Tinned | Braid Foil | 100 ft | 30.5 m |
