PKU411 Series

Catalog

DC DC CONVERTER 30V 99W

Part	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Control Features	Mounting Type	Applications	Voltage - Input (Max) [Max]	Voltage - Output 1	Supplier Device Package	Voltage - Isolation	Approval Agency	Type	Voltage - Input (Min) [Min]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Features	Efficiency	Current - Output (Max)

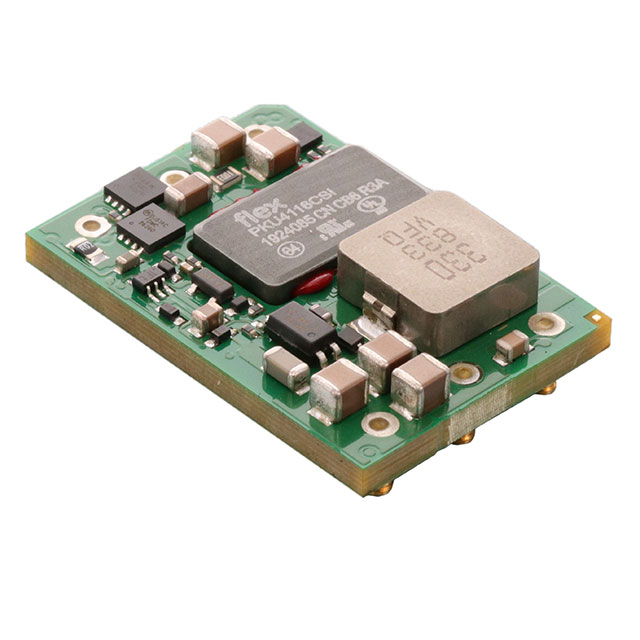

Flex Power Modules PKU4116CSI	Sixteenth Brick	3.3 A	99 W	1.3 "	33 mm	0.9 "	0.38 in	22.9 mm	9.6 mm	1	Active Low Enable	Surface Mount	ITE (Commercial)	75 V	30 V	Sixteenth Brick	1.5 kV	CB CSA IEC TUV UL	Isolated Module	36 V	62368-1	125 °C	-40 °C	Adjustable Output Remote On/Off

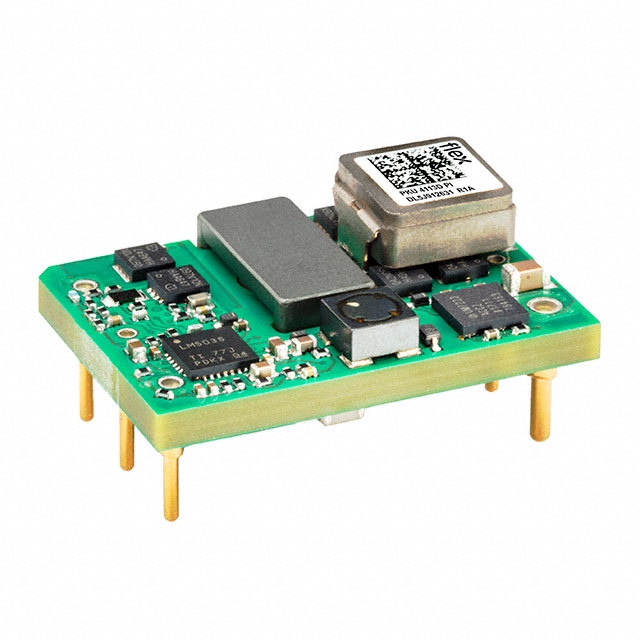

Flex Power Modules PKU4113DPI	Sixteenth Brick	10 A	120 W	1.3 "	33 mm	0.9 "	0.44 "	22.9 mm	11.3 mm	1	Active Low Enable	Through Hole	ITE (Commercial)	75 V	12 V	Sixteenth Brick	2250 VDC	CB CSA IEC TUV UL	Intermediate Bus Converter	36 V	62368-1	125 °C	-40 °C	Adjustable Output Remote On/Off Remote Sense	94.9 %

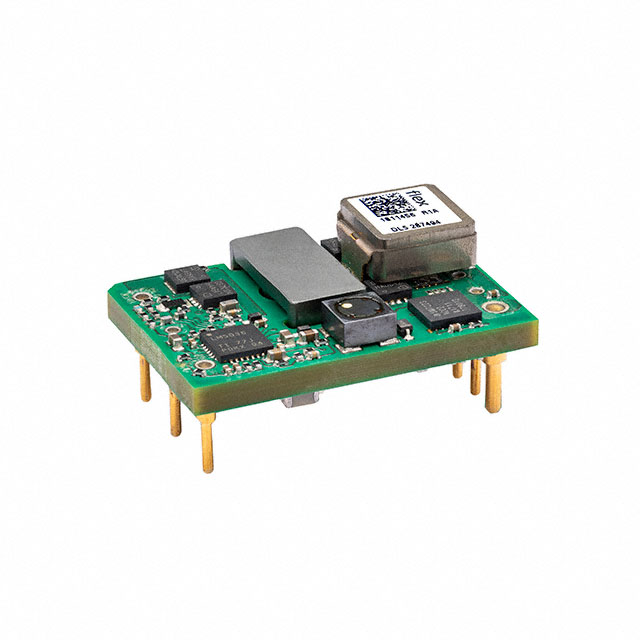

Flex Power Modules PKU4110DPI	Sixteenth Brick		100 W	1.3 "	33 mm	0.9 "	0.44 "	22.9 mm	11.3 mm	1	Active Low Enable	Through Hole	ITE (Commercial)	75 V	3.3 V	Sixteenth Brick	2250 VDC	CB CSA IEC TUV UL	Isolated Module	36 V	62368-1	125 °C	-40 °C	Adjustable Output Remote On/Off Remote Sense	93.7 %	30.3 A
Flex Power Modules PKU4111DPI	Sixteenth Brick		135 W	1.3 "	33 mm	0.9 "	0.44 "	22.9 mm	11.3 mm	1	Active Low Enable	Through Hole	ITE (Commercial)	75 V	5 V	Sixteenth Brick	2250 VDC	CB CSA IEC TUV UL	Isolated Module	36 V	62368-1	125 °C	-40 °C	Adjustable Output Remote On/Off Remote Sense	93.6 %
