RF55-25 Series

Manufacturer: Adam Tech

Catalog

FAKRA PLUG SMB TYPE: STRAIGHT, F

Part	Center Contact Plating	Body Finish	Body Material	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Frequency - Max [Max]	Impedance	Center Contact Material	Shield Termination	Connector Type	Housing Color	Fastening Type	Connector Style	Number of Ports	Mounting Type	Features
Adam Tech RF55-25F-T-00-50-G-SH	Gold	Gold	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-40 C	Solder	4 GHz	50 Ohms	Brass	Solder	Plug Male Pin	Brown	Locking Ramp	Fakra SMB	1	Through Hole	Code F

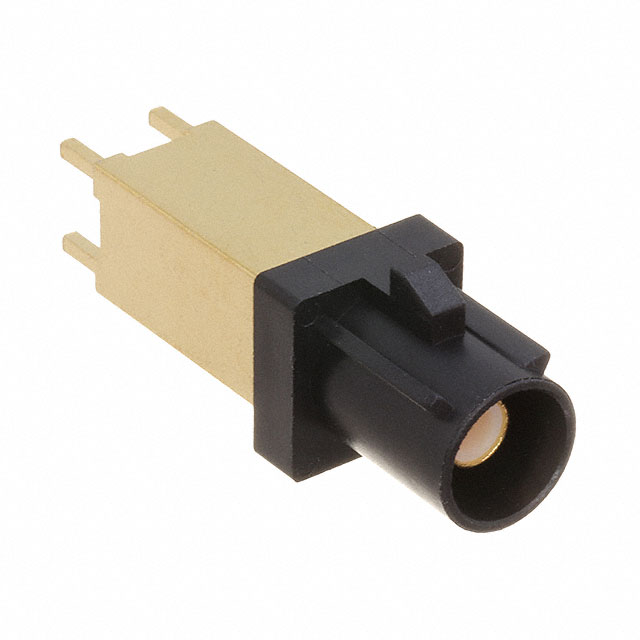

Adam Tech RF55-25A-T-00-50-G-SH	Gold	Gold	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-40 C	Solder	4 GHz	50 Ohms	Brass	Solder	Plug Male Pin	Black	Locking Ramp	Fakra SMB	1	Through Hole	Code A
Adam Tech RF55-25N-T-00-50-G-SH	Gold	Gold	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-40 C	Solder	4 GHz	50 Ohms	Brass	Solder	Plug Male Pin	Green Pastel	Locking Ramp	Fakra SMB	1	Through Hole	Code N
Adam Tech RF55-25L-T-00-50-G-SH	Gold	Gold	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-40 C	Solder	4 GHz	50 Ohms	Brass	Solder	Plug Male Pin	Carmine Red	Locking Ramp	Fakra SMB	1	Through Hole	Code L
Adam Tech RF55-25B-T-00-50-G-SH	Gold	Gold	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-40 C	Solder	4 GHz	50 Ohms	Brass	Solder	Plug Male Pin	White	Locking Ramp	Fakra SMB	1	Through Hole	Code B
Adam Tech RF55-25E-T-00-50-G-SH	Gold	Gold	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-40 C	Solder	4 GHz	50 Ohms	Brass	Solder	Plug Male Pin	Green	Locking Ramp	Fakra SMB	1	Through Hole	Code E
Adam Tech RF55-25G-T-00-50-G-SH	Gold	Gold	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-40 C	Solder	4 GHz	50 Ohms	Brass	Solder	Plug Male Pin	Gray	Locking Ramp	Fakra SMB	1	Through Hole	Code G
Adam Tech RF55-25H-T-00-50-G-SH	Gold	Gold	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-40 C	Solder	4 GHz	50 Ohms	Brass	Solder	Plug Male Pin	Violet	Locking Ramp	Fakra SMB	1	Through Hole	Code H
