M4633 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

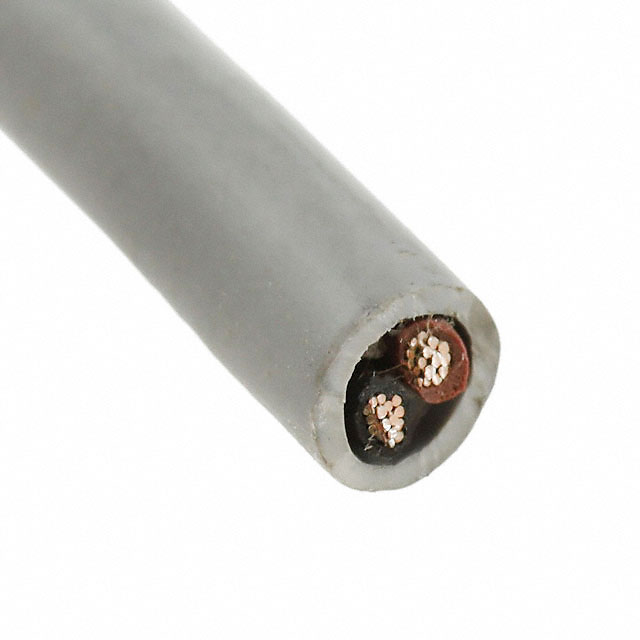

MULTI-CONDUCTOR CABLES 22 AWG 2 CONDUCTOR COMMUNICATION CABLES, FOIL, 1000 FT - SLATE
| Part | Shield Coverage | Shield Material | Voltage | Conductor Insulation | Features | Length | Length | Number of Conductors | Conductor Material | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | 304.8 m | 1000 ft | 2 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Multi-Conductor | 0.813 mm | 0.032 in | Foil | 22 AWG | 4.34 mm | 0.171 " | UL Style 2464 | Slate | 28 AWG | 7 |
