392-047 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 47POS 0.100
| Part | Termination Rows | Material - Insulation | Number of Rows | Pitch | Pitch | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Color | Mounting Type | Number of Positions | Termination | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Contact Type | Number of Positions/Bay/Row | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

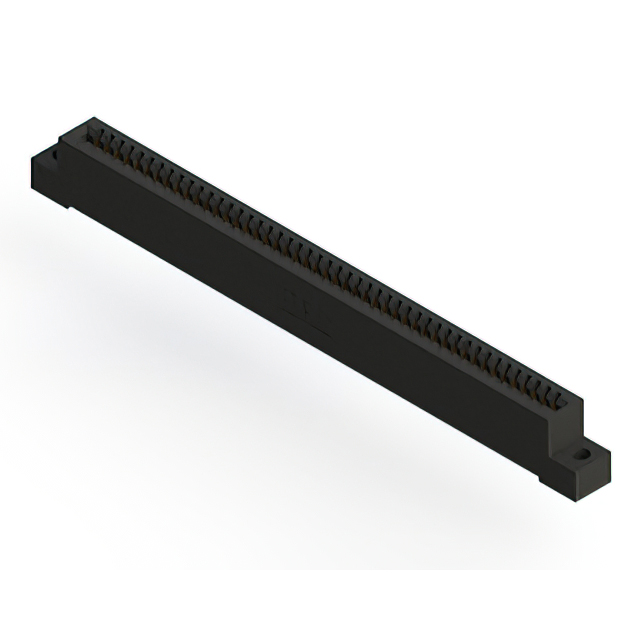

 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Wire Wrap | Female | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin |

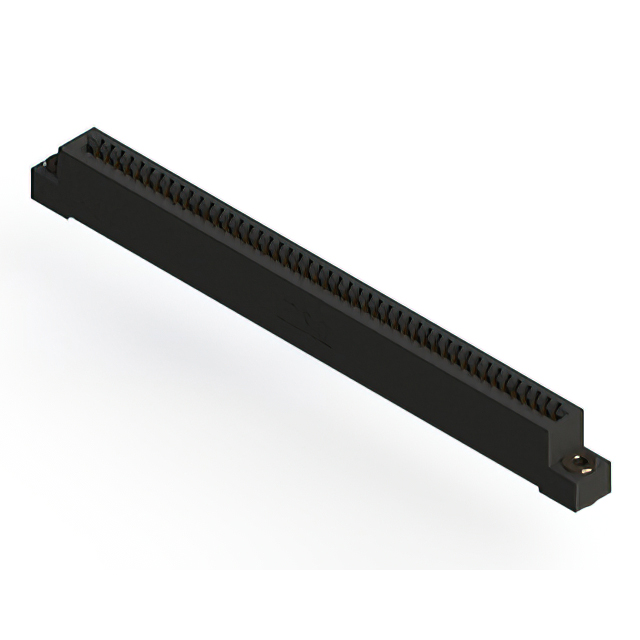

 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Solder | Female | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Wire Wrap | Female | -40 C | 105 ░C | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Solder | Female | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Wire Wrap | Female | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Solder | Female | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Solder | Female | -40 C | 105 ░C | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Solder | Female | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Solder | Female | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | 47 | Wire Wrap | Female | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Copper Alloy | Cantilever | 47 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin |
