831-93 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 12POS 0.079 GOLD SMD

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Fastening Type	Insulation Color	Connector Type	Material Flammability Rating	Contact Finish - Mating	Contact Finish - Post	Termination	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 831-93-012-30-002000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Surface Mount	0.079 "	2 mm	12	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder	0.228 "	5.8 mm	0.76 Ám	30 Áin	3 A
Mill-Max Manufacturing Corp. 831-93-039-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Surface Mount	0.079 "	2 mm	39	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder	0.228 "	5.8 mm	0.76 Ám	30 Áin	3 A

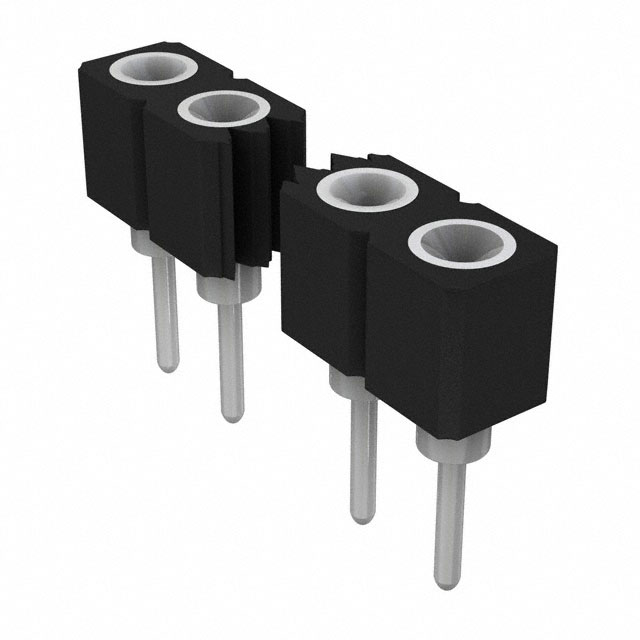

Mill-Max Manufacturing Corp. 831-93-007-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Through Hole	0.079 "	2 mm	7	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder			0.76 Ám	30 Áin	3 A	0.165 in	4.2 mm	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 831-93-030-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Surface Mount	0.079 "	2 mm	30	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder	0.228 "	5.8 mm	0.76 Ám	30 Áin	3 A
Mill-Max Manufacturing Corp. 831-93-050-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Through Hole	0.079 "	2 mm	50	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder			0.76 Ám	30 Áin	3 A	0.165 in	4.2 mm	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 831-93-015-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Through Hole	0.079 "	2 mm	15	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder			0.76 Ám	30 Áin	3 A	0.165 in	4.2 mm	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 831-93-028-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Surface Mount	0.079 "	2 mm	28	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder	0.228 "	5.8 mm	0.76 Ám	30 Áin	3 A
Mill-Max Manufacturing Corp. 831-93-020-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Surface Mount	0.079 "	2 mm	20	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder	0.228 "	5.8 mm	0.76 Ám	30 Áin	3 A
Mill-Max Manufacturing Corp. 831-93-037-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Through Hole	0.079 "	2 mm	37	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder			0.76 Ám	30 Áin	3 A	0.165 in	4.2 mm	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 831-93-043-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Female Socket	-55 C	125 °C	Through Hole	0.079 "	2 mm	43	All	Push-Pull	Black	Receptacle	UL94 V-0	Gold	Tin-Lead	Solder			0.76 Ám	30 Áin	3 A	0.165 in	4.2 mm	0.125 in	3.18 mm
