9340002 Series

Catalog

MS2,107,10,10,12,12,11,RT,W8

Part	Height [z]	Number of Stages	Operating Temperature	Features	Voltage - Max [Max]	Qmax @ Th	Delta Tmax @ Th	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]

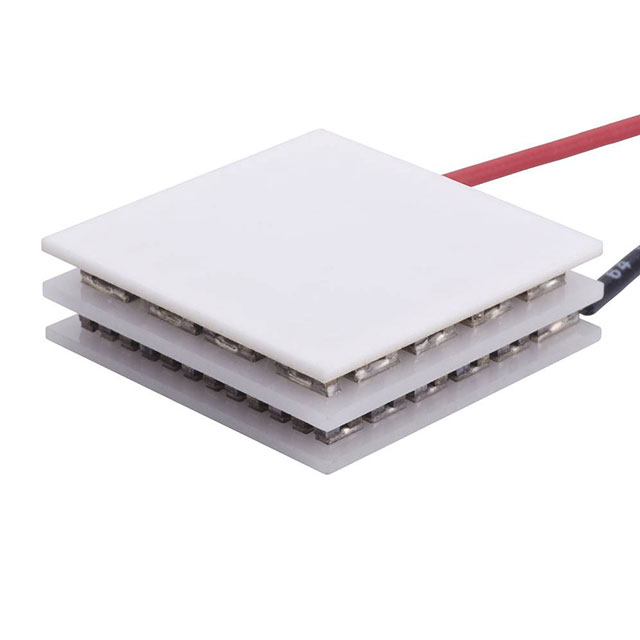

Laird Thermal Systems, Inc. 9340002-302	6.25 mm	2	80 °C	Lead Wires Sealed - Silicone RTV	9.1 V	9.6 W	87 °C	2.9 A	22.6 mm	22.6 mm

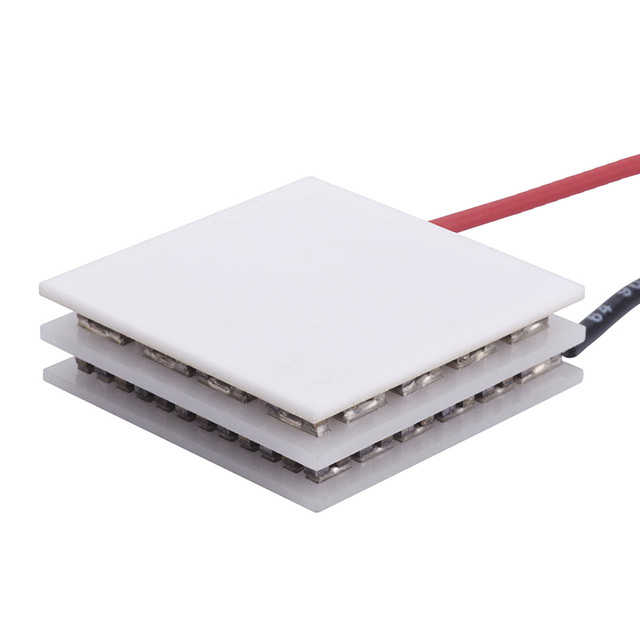

Laird Thermal Systems, Inc. 9340002-304	6.45 mm	2	80 °C	Lead Wires Non-Sealed	9.1 V	9.6 W	87 °C	2.9 A	22.6 mm	22.6 mm
Laird Thermal Systems, Inc. 9340002-301	6.25 mm	2	80 °C	Lead Wires Non-Sealed	9.1 V	9.6 W	87 °C	2.9 A	22.6 mm	22.6 mm
