121496 Series

Catalog

CONN RCPT 100POS 0.05 GOLD PCB

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Voltage Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Height	Insulation Height	Termination	Connector Type	Number of Rows [custom]	Contact Type	Mounting Type	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights	Contact Finish - Post	Number of Positions

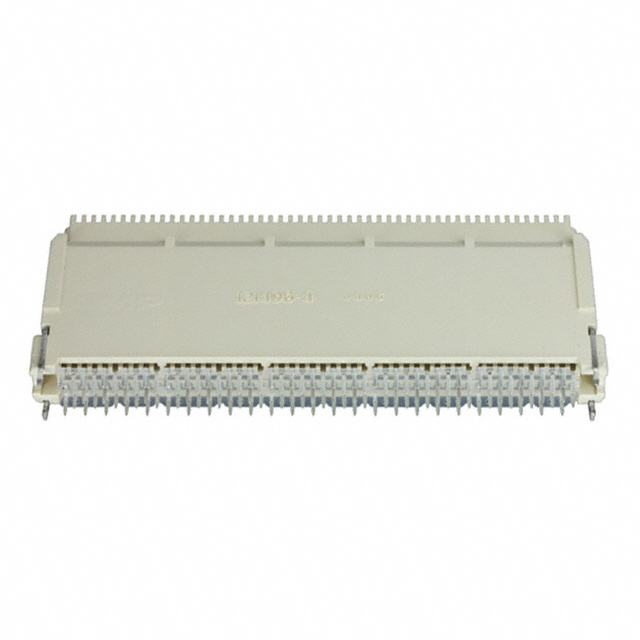

TE Connectivity AMP Connectors 121496-4	Phosphor Bronze	Thermoplastic	Square	2.54 µm	100 µin	Natural	30 VAC	1.27 mm	0.05 in	0.1 in	2.54 mm	-65 ░C	125 °C	Board Guide	27.31 mm	1.075 in	Solder	Receptacle	2	Female Socket	Through Hole	All	Gold	Push-Pull	0.76 Ám	30 Áin	31.12 mm 38.94 mm	Tin-Lead	100
