082-641 Series
Manufacturer: Amphenol RF
Beta
⌘K

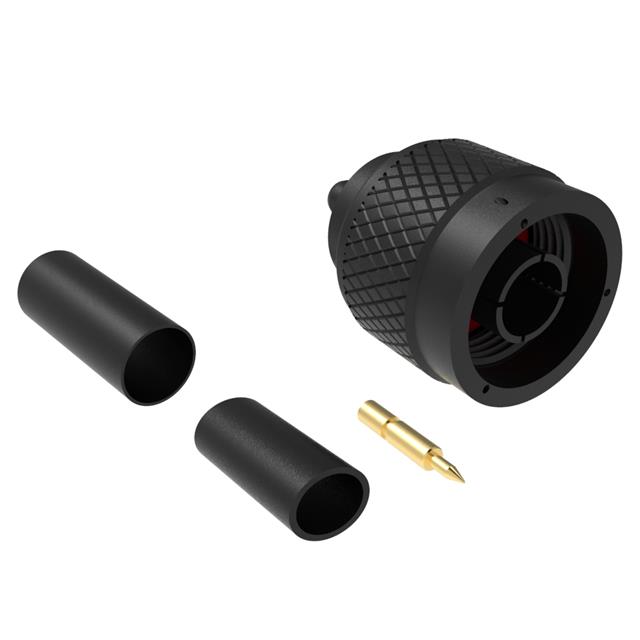

RF / COAXIAL CONNECTOR, N COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG141A/U, BRASS
| Part | Cable Group | Number of Ports | Voltage Rating | Body Finish | Dielectric Material | Housing Color | Center Contact Plating | Center Contact Material | Impedance | Contact Termination | Connector Style | Connector Type | Shield Termination | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | 141A RG-141 | 1 | 500 V | Chromate Black | Polytetrafluoroethylene (PTFE) | Black | Gold | Brass | 50 Ohms | Solder | N Type | Male Pin Plug | Crimp | -65 ░C | 165 °C | Brass | 500 | Free Hanging (In-Line) | 11 GHz |
