845-055 Series
Manufacturer: EDAC Inc.
Beta
⌘K

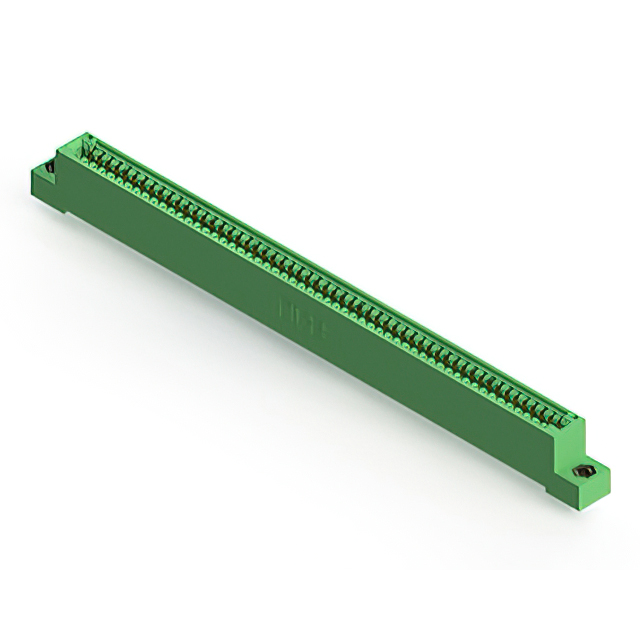

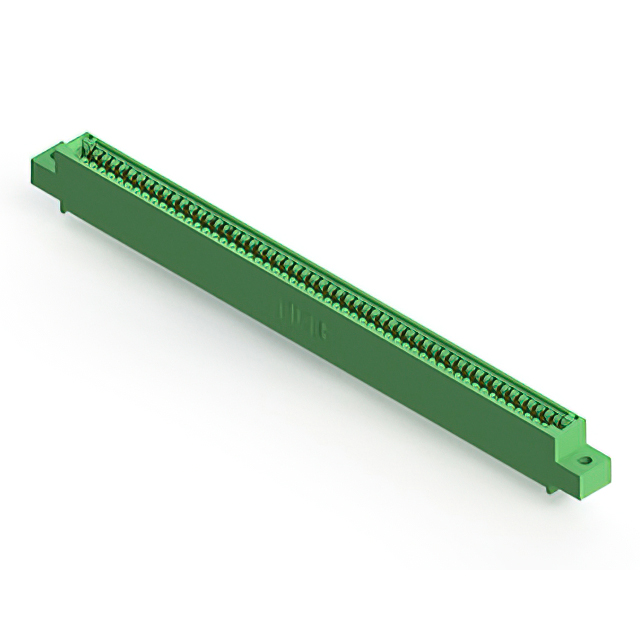

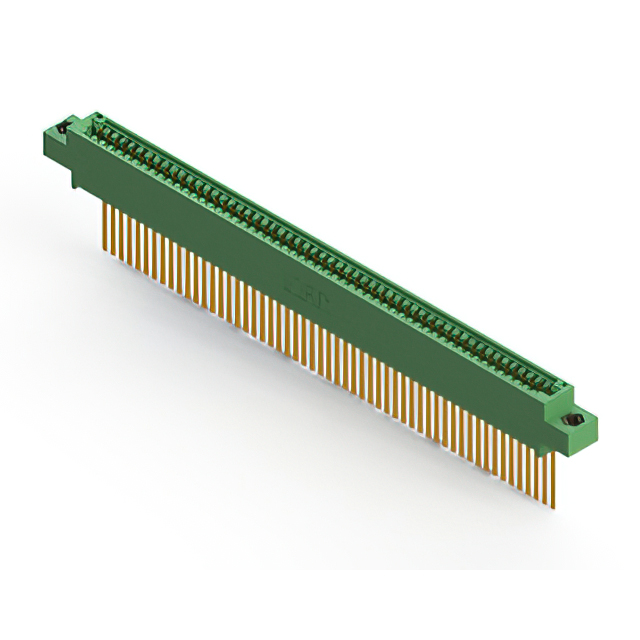

CONN EDGE SINGLE FML 55POS 0.100
| Part | Material - Insulation | Termination Rows | Gender | Flange Feature | Number of Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Card Type | Number of Positions/Bay/Row | Read Out | Contact Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | M3 Threaded Insert Top Mount Opening | 1 | Copper Alloy | 125 °C | -40 C | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Flush Mount M3 Threaded Insert Top Opening | 1 | Copper Alloy | 125 °C | -40 C | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | 1 | Copper Alloy | 125 °C | -40 C | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green | 3.25 mm | 0.128 " | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | 1 | Copper Alloy | 125 °C | -40 C | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green | 3.96 mm | 0.156 " | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Floating Bobbin Top Mount Opening | 1 | Copper Alloy | 125 °C | -40 C | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green | 2.95 mm | 0.116 " |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | M3 Threaded Insert Top Mount Opening | 1 | Copper Alloy | 125 °C | -40 C | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | 1 | Copper Alloy | 125 °C | -40 C | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green | 3.25 mm | 0.128 " | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Side Mount Opening Unthreaded | 1 | Copper Alloy | 125 °C | -40 C | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Right Angle Through Hole | 0.25 Ám | 10 Áin | 55 | Green | 3.25 mm | 0.128 " |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | 4-40 Threaded Insert Top Mount Opening | 1 | Copper Alloy | 125 °C | -40 C | Solder Eyelet(s) | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | 4-40 Threaded Insert Top Mount Opening | 1 | Copper Alloy | 125 °C | -40 C | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Non Specified - Single Edge | 55 | Single | Cantilever | Through Hole | 0.25 Ám | 10 Áin | 55 | Green |
