82-5551 Series
Manufacturer: EAO
Beta
⌘K
SWITCH PB SPDT 3A 240V
| Part | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Actuator Type | Electrical Life | Color - Actuator/Cap | Type | Mounting Type | Mechanical Life | Ingress Protection | Termination Style | Termination Style | Termination Style | Illumination Voltage (Nominal) | Current Rating (Amps) | Actuator Marking | Switch Function | Voltage Rating - AC | Voltage Rating - DC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO | 19 mm | 70 °C | -30 ░C | LED Red | Button Flush Round | 50000 Cycles | Silver | Illuminated Standard | Panel Mount Front | 1000000 Cycles | IP65 IP67 | 0.11 in | Quick Connect Solder | 2.8 mm | 24 VAC/DC | 3 A | No Marking | On-Mom | 240 V | 240 V | SPDT |

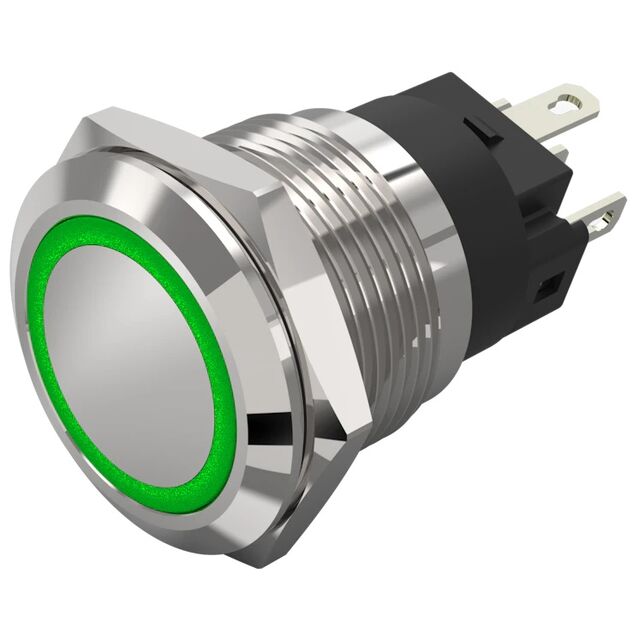

 EAO | 19 mm | 70 °C | -30 ░C | Green LED | Button Flush Round | 50000 Cycles | Silver | Illuminated Standard | Panel Mount Front | 1000000 Cycles | IP65 IP67 | 0.11 in | Quick Connect Solder | 2.8 mm | 24 VAC/DC | 3 A | No Marking | On-Mom | 240 V | 240 V | SPDT |
EAO | 19 mm | 70 °C | -30 ░C | LED Yellow | Button Flush Round | 50000 Cycles | Silver | Illuminated Standard | Panel Mount Front | 1000000 Cycles | IP65 IP67 | 0.11 in | Quick Connect Solder | 2.8 mm | 24 VAC/DC | 3 A | No Marking | On-Mom | 240 V | 240 V | SPDT |
