9004-1213 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

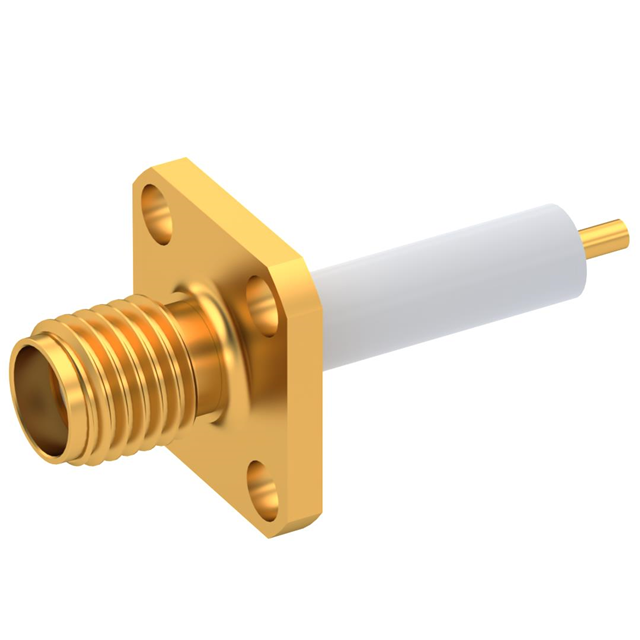

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Dielectric Material | Mounting Type | Connector Style | Contact Termination | Frequency - Max [Max] | Features | Shield Termination | Center Contact Material | Number of Ports | Mounting Feature | Impedance | Fastening Type | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | 500 | -65 ░C | 165 °C | Gold | Gold | Polytetrafluoroethylene (PTFE) | Panel Mount Through Hole | SMA | Solder | 18 GHz | Extended Insulation | Solder | Beryllium Copper | 1 | Flange | 50 Ohms | Threaded | Female Socket Jack | Gold |
