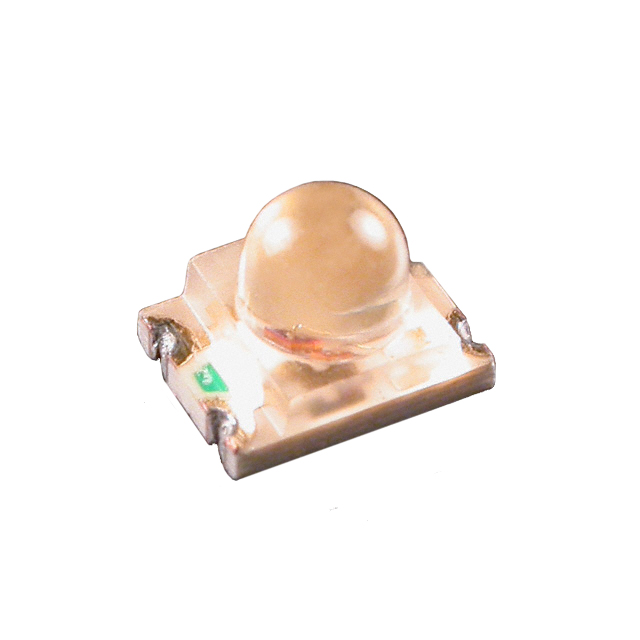

APBD3224 Series

Catalog

LED GREEN/RED CLEAR CHIP SMD

Part	Viewing Angle	Current - Test [custom]	Current - Test [custom]	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Supplier Device Package	Wavelength - Peak	Package / Case	Configuration	Lens Color	Mounting Type	Lens Style	Lens Size [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Color	Current - Test	Wavelength - Dominant	Height (Max) [z]	Millicandela Rating [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Package / Case	Millicandela Rating	Current - Test	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Kingbright APBD3224SURKCGKC-F01	20 °	20 mA	20 mA	2.4 mm	3.2 mm	2.4 mm	Clear	Chip LED	574 nm 645 nm	4-SMD No Lead	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia	280 mcd	400 mcd	570nm Green 630nm Red	1.95 V 2.1 V	Green Red
Kingbright APBD3224LSURKSYKC	20 °				3.2 mm	2.4 mm	Clear	4-SMD		1209	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia		30 mcd		1.8 V 1.9 V	Red Yellow	2mA Red 2mA Yellow	590 nm 630 nm	2.5 mm	50 mcd	645 nm	590 nm	3224 Metric
Kingbright APBD3224LVBDSYKJ3C	20 °				3.2 mm	2.4 mm	Clear	4-SMD	465 nm 590 nm	1209	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia			470nm Blue 590nm Yellow	1.9 V 2.7 V	Blue Yellow			2.5 mm				3224 Metric	100 mcd 100 mcd	2 mA 2 mA
Kingbright APBD3224LSURKQBDC	20 °				3.2 mm	2.4 mm	Clear	4-SMD	460 nm 645 nm	4-SMD No Lead	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia				1.8 V 2.7 V	Blue Red		465 nm 630 nm	2.5 mm					30 mcd 40 mcd	2 mA 2 mA
Kingbright APBD3224LQBDCGKC	20 °				3.2 mm	2.4 mm	Clear	4-SMD	460 nm 574 nm	4-SMD No Lead	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia			465nm Blue 570nm Green	1.9 V 2.7 V	Blue Green			2.5 mm					30 mcd 30 mcd	2 mA
Kingbright APBD3224LVBDZGKC	20 °				3.2 mm	2.4 mm	Clear	4-SMD		4-SMD No Lead	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia				2.7 V 2.7 V	Blue Green		470 nm 525 nm	2.5 mm					100 mcd 250 mcd	2 mA	465nm Blue 515nm Green
Kingbright APBD3224LVBDSEKJ3C	20 °				3.2 mm	2.4 mm	Clear	4-SMD	465 nm 640 nm	1209	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia			470nm Blue 625nm Red	1.8 V 2.7 V	Blue Red			2.5 mm				3224 Metric	50 mcd 100 mcd	2 mA 2 mA
Kingbright APBD3224SYKCGKC-F01	20 °			2.4 mm	3.2 mm	2.4 mm	Clear	SMD		1210	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia	280 mcd				Green Yellow		570 nm 590 nm		800 mcd			3225 Metric		20 mA 20 mA	574nm Green 590nm Yellow	2.1 V	2 V
Kingbright APBD3224LZGKSYKC	20 °				3.2 mm	2.4 mm	Clear	4-SMD		1209	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia	150 mcd				Green Yellow		525 nm 590 nm	2.5 mm	50 mcd			3224 Metric		2 mA 2 mA	515nm Green 590nm Yellow
Kingbright APBD3224ESGC-F01	20 °	20 mA	20 mA	2.4 mm	3.2 mm	2.4 mm	Clear	SMD	565 nm 627 nm	1210	Independent	Colorless	Surface Mount	Round with Domed Top	1.8 mm Dia				2 V 2.2 V	Green Red		568 nm 617 nm					3225 Metric	40 mcd 55 mcd
