2823397 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

3P,2MM,SHRD HDR,SRVT,SMD,0.1AU,T

Part	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Voltage Rating	Contact Material	Contact Shape	Number of Positions Loaded	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Termination	Contact Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Features	Shrouding	Contact Finish - Post	Number of Rows	Number of Positions

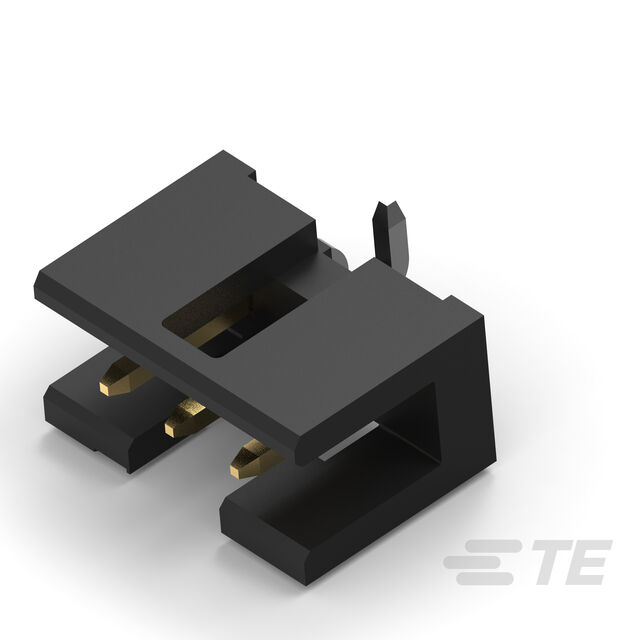

TE Connectivity Raychem Cable Protection 2823397-3	Thermoplastic	3.94 µin	0.1 µm	Gold	UL94 V-0	157.5 Áin	4 Ám	Black	125 VAC	Phosphor Bronze	Square	All	Header	5.51 mm	0.217 in	Surface Mount	125 °C	-40 °C	Detent Lock	Solder	Male Pin	4 mm	0.157 in	2 A	0.079 in	2 mm	Pick and Place	Shrouded - 2 Wall	Tin	1
TE Connectivity Raychem Cable Protection 2823397-5	Thermoplastic	3.94 µin	0.1 µm	Gold	UL94 V-0	157.5 Áin	4 Ám	Black	125 VAC	Phosphor Bronze	Square	All	Header	5.51 mm	0.217 in	Surface Mount	125 °C	-40 °C	Detent Lock	Solder	Male Pin	4 mm	0.157 in	2 A	0.079 in	2 mm	Pick and Place	Shrouded - 2 Wall	Tin	1

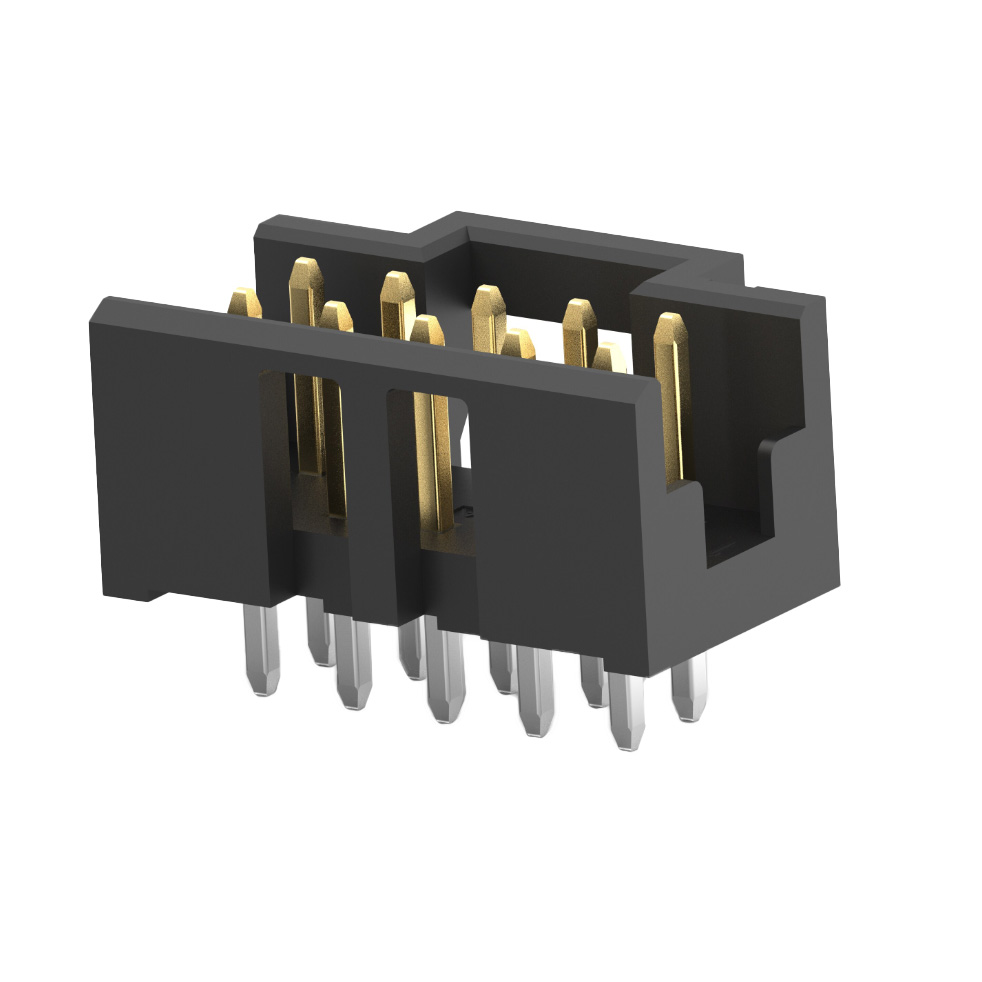

TE Connectivity Raychem Cable Protection 1-2823397-0	Thermoplastic	3.94 µin	0.1 µm	Gold	UL94 V-0	157.5 Áin	4 Ám	Black	125 VAC	Phosphor Bronze	Square	All	Header	5.51 mm	0.217 in	Surface Mount	125 °C	-40 °C	Detent Lock	Solder	Male Pin	4 mm	0.157 in	2 A	0.079 in	2 mm	Pick and Place	Shrouded - 2 Wall	Tin	1	10

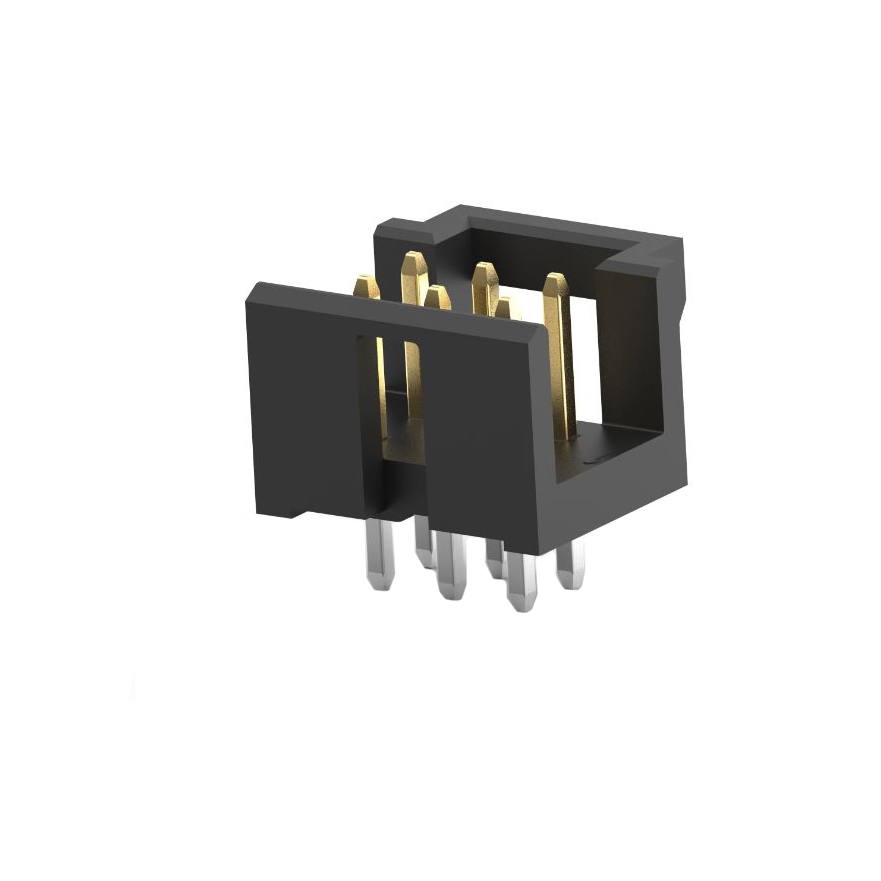

TE Connectivity Raychem Cable Protection 2823397-6	Thermoplastic	3.94 µin	0.1 µm	Gold	UL94 V-0	157.5 Áin	4 Ám	Black	125 VAC	Phosphor Bronze	Square	All	Header	5.51 mm	0.217 in	Surface Mount	125 °C	-40 °C	Detent Lock	Solder	Male Pin	4 mm	0.157 in	2 A	0.079 in	2 mm	Pick and Place	Shrouded - 2 Wall	Tin	1	6
