SC202 Series

Catalog

DC DC CONVERTER 0.8-3.3V

Part	Number of Outputs	Applications	Mounting Type	Type	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Features
Semtech Corporation SC202MLTRT	1	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module	500 mA	3 mm	0.1 in	0.12 inches	1 mm	2.5 mm	0.04 in	13-MLPQ	2.5	3	13-PowerVFQFN Module	3.3 V	0.8 V	2.9 V	85 °C	-40 C	5.5 V
Semtech Corporation SC202FMLTRT

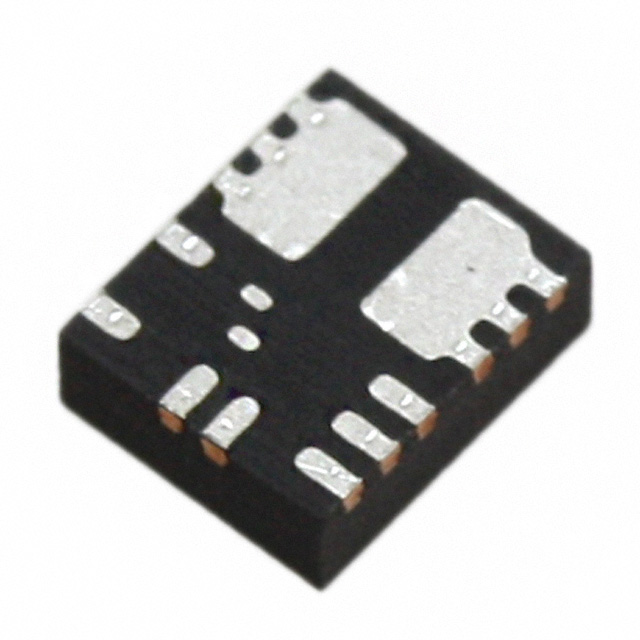

Semtech Corporation SC202AMLTRT	1	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module	500 mA	3 mm	0.1 in	0.12 inches	1 mm	2.5 mm	0.04 in	13-MLPQ	2.5	3	13-PowerVFQFN Module	3.3 V	0.8 V	2.9 V	85 °C	-40 C	5.5 V	OCP OTP OVP SCP UVLO
