627W13W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB PLUG 13P PNL MNT SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Color	Voltage Rating	Contact Material	Material Flammability Rating	Features	Connector Style	Flange Feature	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Current Rating (Amps)	Number of Rows [custom]	Contact Type	Ingress Protection	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Material, Finish	Current Rating (Amps)	Flange Feature	Contact Finish Thickness
EDAC Inc. 627W13W3324-3NA	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Grounding Indents Shielded	Combo D-Sub	Housing/Shell (M3)	Panel Mount Through Hole	10	3	Solder	0.38 µm	15 µin	Plug Male Pins	Gold	5 A 30 A	2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel
EDAC Inc. 627W13W3124-1N5	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Board Lock Grounding Indents Shielded	Combo D-Sub	Board Side (4-40)	Panel Mount Through Hole	10	3	Solder	0.127 µm	5 µin	Plug Male Pins	Gold		2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel	10A 5A
EDAC Inc. 627W13W3224-2N2	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Grounding Indents Shielded	Combo D-Sub	Housing/Shell	Panel Mount Through Hole	10	3	Solder			Plug Male Pins	Gold		2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel	20A 5A	4-40	Flash
EDAC Inc. 627W13W3622-3N2	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Grounding Indents Shielded	Combo D-Sub	Housing/Shell	Panel Mount Through Hole	10	3		0.76 Ám	30 Áin	Plug Male Pins	Gold	5 A 30 A	2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel		4-40
EDAC Inc. 627W13W3322-4N2	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Grounding Indents Shielded	Combo D-Sub	Housing/Shell	Panel Mount Through Hole	10	3		0.38 µm	15 µin	Plug Male Pins	Gold	5 A 40 A	2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel		4-40
EDAC Inc. 627W13W3224-4ND	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Board Lock Grounding Indents Shielded	Combo D-Sub	Board Side (M3)	Panel Mount Through Hole	10	3	Solder			Plug Male Pins	Gold	5 A 40 A	2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel			Flash
EDAC Inc. 627W13W3124-3N5	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Board Lock Grounding Indents Shielded	Combo D-Sub	Board Side (4-40)	Panel Mount Through Hole	10	3	Solder	0.127 µm	5 µin	Plug Male Pins	Gold	5 A 30 A	2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel

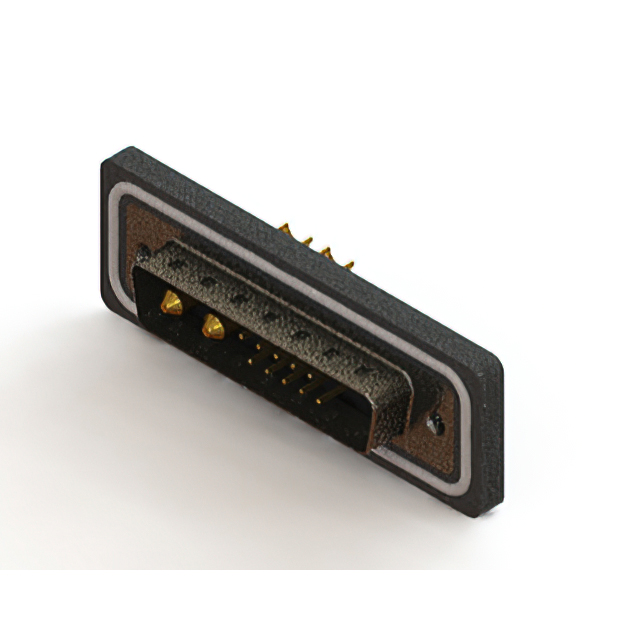

EDAC Inc. 627W13W3622-3NA	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Grounding Indents Shielded	Combo D-Sub	Housing/Shell (M3)	Panel Mount Through Hole	10	3		0.76 Ám	30 Áin	Plug Male Pins	Gold	5 A 30 A	2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel
EDAC Inc. 627W13W3322-3NA	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Grounding Indents Shielded	Combo D-Sub	Housing/Shell (M3)	Panel Mount Through Hole	10	3		0.38 µm	15 µin	Plug Male Pins	Gold	5 A 30 A	2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel

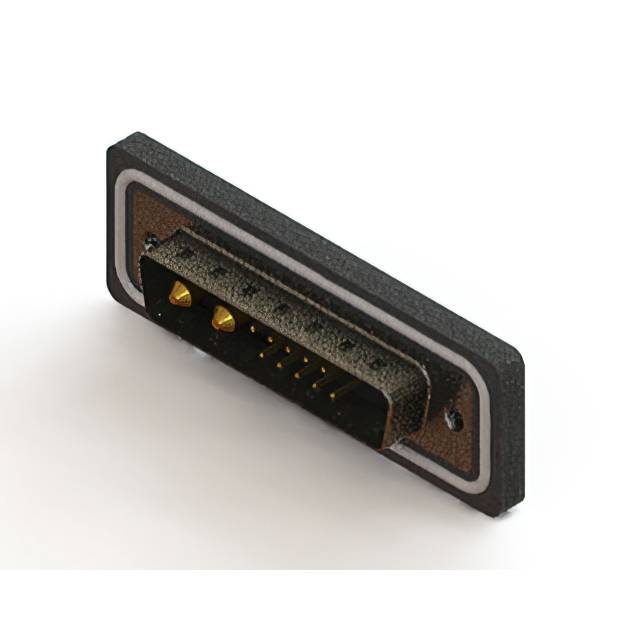

EDAC Inc. 627W13W3124-3NA	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	125 VDC	Copper Alloy	UL94 V-0	Grounding Indents Shielded	Combo D-Sub	Housing/Shell (M3)	Panel Mount Through Hole	10	3	Solder	0.127 µm	5 µin	Plug Male Pins	Gold	5 A 30 A	2	Signal and Power	IP67 - Dust Tight Waterproof	3	13C3 13W3	Nickel Plated Steel
