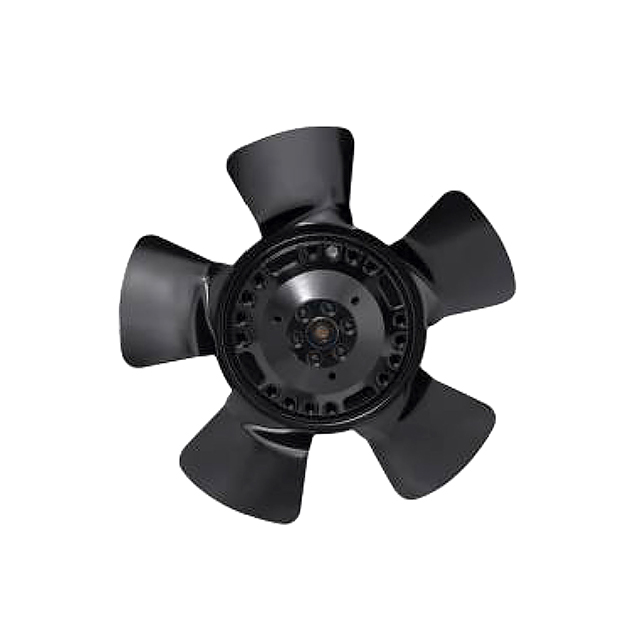

A2D200 Series

Catalog

AC AXIAL FAN

Part	Material - Blade	Current Rating (Amps)	Fan Type	Ingress Protection	Voltage - Rated [Max]	Voltage - Rated [Min]	Bearing Type	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Static Pressure	Static Pressure	Features	Width [x]	Power (Watts)	Size / Dimension	Size / Dimension [diameter]	Voltage - Rated	Termination	Approval Agency	Air Flow	Air Flow	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Termination
ebm-papst Inc. A2D200-AA02-01	Steel	0.24 A	3 Phase Tubeaxial	IP44	400 VAC	230 VAC	Ball	3.7 lbs	1.7 kg	70 °C	-25 °C	3150 RPM	1.204 in H2O	299.9 Pa	Dual Voltage	72.5 mm	70 W	Round	195 mm

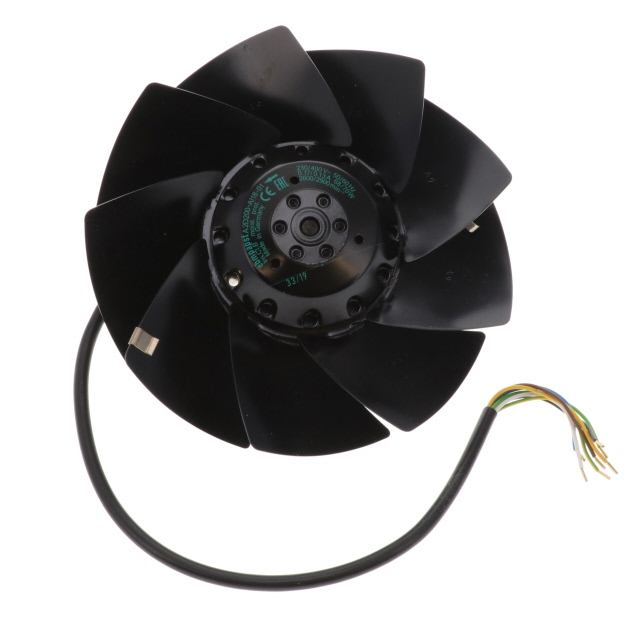

ebm-papst Inc. A2D200-AI18-01	Steel		3 Phase Tubeaxial	IP44			Ball			70 °C	-25 °C	2900 RPM	0.562 in H2O	140 Pa		73 mm	70 W	Round	195 mm	400 VAC	7 Wire Leads with Splice Terminals	CCC CE EAC	14.84 mł/min	530.1 CFM	68 dB

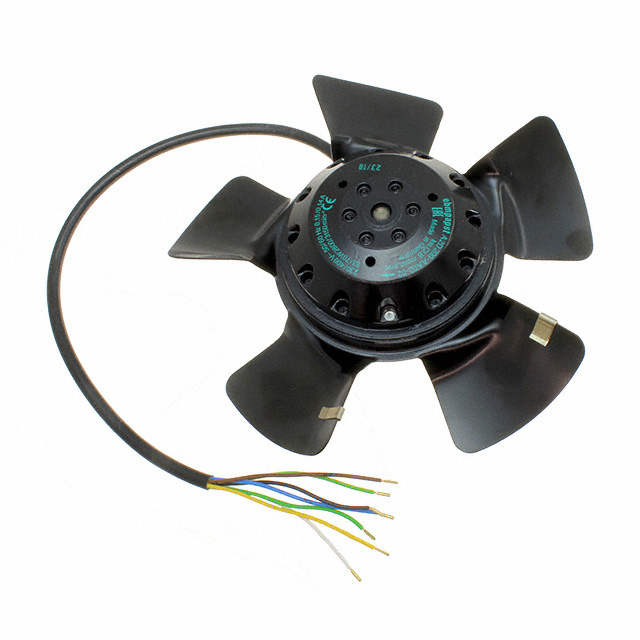

ebm-papst Inc. A2D200-AA02-02	Steel	140 mA	3 Phase Tubeaxial	IP44	400 VAC	230 VAC	Ball			75 ░C	-25 °C	3150 RPM	1.204 in H2O	300 Pa	Dual Voltage	73 mm	70 W	Round	195 mm		7 Wire Leads with Splice Terminals		14.68 m³/min	524.2 CFM	70 dB(A)
ebm-papst Inc. A2D200-AA04-15	Steel	110 mA	3 Phase Tubeaxial	IP44			Ball			90 °C	-25 °C	3150 RPM	0.333 in H2O	83 Pa		73 mm	70 W	Round	195 mm	500 VAC/DC	4 Wire Leads with Splice Terminals	CE				90 °C	-25 °C
ebm-papst Inc. A2D200-AA04-44	Steel		3 Phase Tubeaxial	IP44	400 VAC	230 VAC	Ball	3.5 lbs	1.6 kg	80 °C	-25 °C	3100 RPM			Dual Voltage	73 mm	65 W	Round	195 mm									0.19 A	0.11 A	1 6
ebm-papst Inc. A2D200-AA02-16	Steel		3 Phase Tubeaxial	IP54 - Dust Protected Water Resistant	400 VAC	230 VAC	Ball			75 ░C	-25 °C	3150 RPM	1.204 in H2O	300 Pa	Dual Voltage	73 mm	70 W	Round	195 mm		7 Wire Leads with Splice Terminals							0.24 A	0.14 A

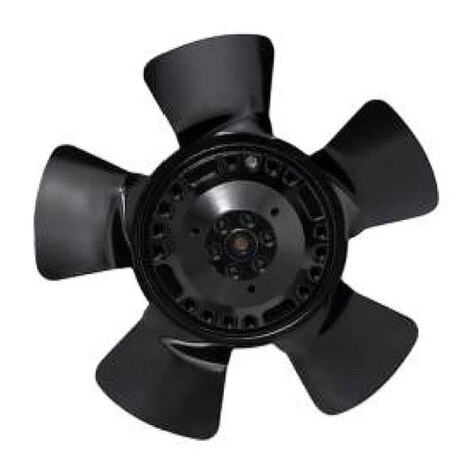

ebm-papst Inc. A2D200-AA04-29	Steel		3 Phase Tubeaxial	IP44	400 VAC	230 VAC									Dual Voltage		65 W	Round	195 mm
