EL02F Series
Manufacturer: WITHWAVE CO LTD
Beta
⌘K

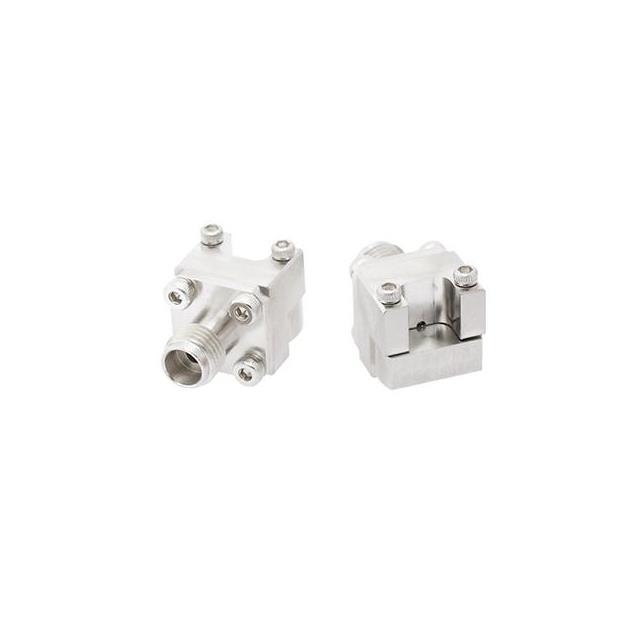

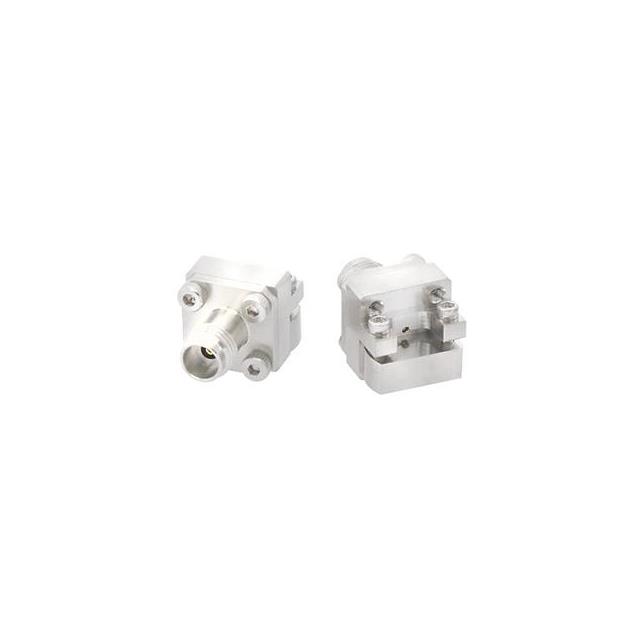

END LAUNCH 2.4 MM CONNECTOR(DC T
| Part | Body Material | Center Contact Plating | Connector Style [x] | Connector Style | Connector Style | Shield Termination | Center Contact Material | Frequency - Max [Max] | Contact Termination | Mounting Type | Number of Ports | Fastening Type | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WITHWAVE CO LTD | Stainless Steel | Gold | 2.4 mm | OS-50 | APC-2.4 | Screw | Beryllium Copper | 50 GHz | Compression | Board Edge End Launch | 1 | Threaded | 50 Ohms | Receptacle Female Socket |
 WITHWAVE CO LTD | Stainless Steel | Gold | 2.4 mm | OS-50 | APC-2.4 | Screw | Beryllium Copper | 50 GHz | Compression | Board Edge End Launch | 1 | Threaded | 50 Ohms | Receptacle Female Socket |
