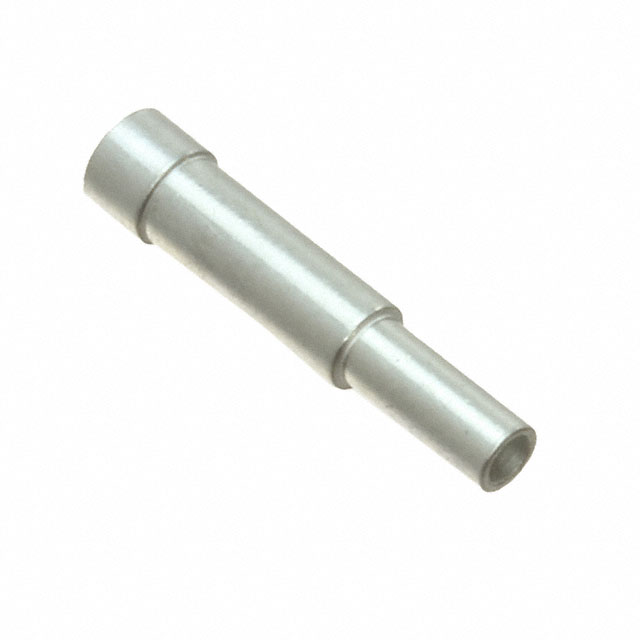

0370-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Tail Type	Length - Overall [x]	Length - Overall [x]	Socket Depth [z]	Socket Depth [z]
Mill-Max Manufacturing Corp. 0370-0-19-80-07-14-10-0	-55 C	125 °C	2.72 mm	0.107 in	0.25 Ám	10 Áin	Solder	0.144 in	3.66 mm	Gold	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	Crimp	17.53 mm	0.69 in	0.375 "	9.53 mm
Mill-Max Manufacturing Corp. 0370-0-19-80-07-80-10-0	-55 C	125 °C	2.72 mm	0.107 in	5.08 Ám	200 Áin	Solder	0.144 in	3.66 mm	Tin	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	Crimp	17.53 mm	0.69 in	0.375 "	9.53 mm

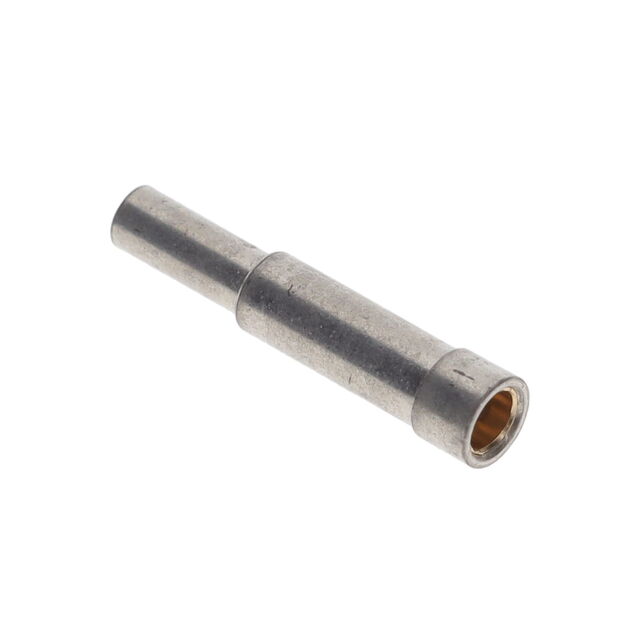

Mill-Max Manufacturing Corp. 0370-0-19-01-07-27-10-0	-55 C	125 °C	2.72 mm	0.107 in	0.76 Ám	30 Áin	Solder	0.144 in	3.66 mm	Gold	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	Crimp	17.53 mm	0.69 in	0.375 "	9.53 mm
Mill-Max Manufacturing Corp. 0370-0-19-01-07-14-10-0	-55 C	125 °C	2.72 mm	0.107 in	0.25 Ám	10 Áin	Solder	0.144 in	3.66 mm	Gold	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	Crimp	17.53 mm	0.69 in	0.375 "	9.53 mm
Mill-Max Manufacturing Corp. 0370-0-19-80-07-27-10-0	-55 C	125 °C	2.72 mm	0.107 in	0.76 Ám	30 Áin	Solder	0.144 in	3.66 mm	Gold	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	Crimp	17.53 mm	0.69 in	0.375 "	9.53 mm
