32S122 Series
Manufacturer: Rosenberger
Beta
⌘K

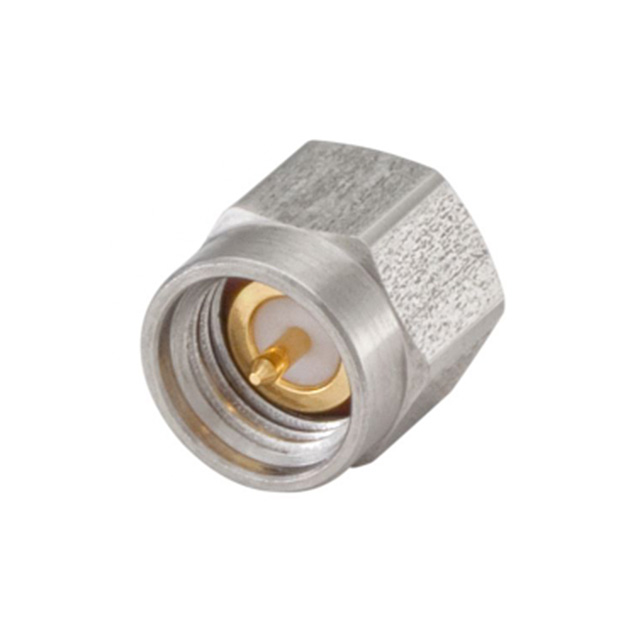

CONN SMA PLUG STR 50OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Center Contact Plating | Mating Cycles | Body Material | Connector Type | Contact Termination | Cable Group | Frequency - Max [Max] | Impedance | Center Contact Material | Number of Ports | Shield Termination | Housing Color | Fastening Type | Connector Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 480 V | Gold | 500 | Stainless Steel | Plug Male Pin | Solder | RG-405 (.085" Semi Rigid) | 18 GHz | 50 Ohms | Brass | 1 | Solder | Silver | Threaded | SMA | Free Hanging (In-Line) |
