DCNLEV50-BSN Series

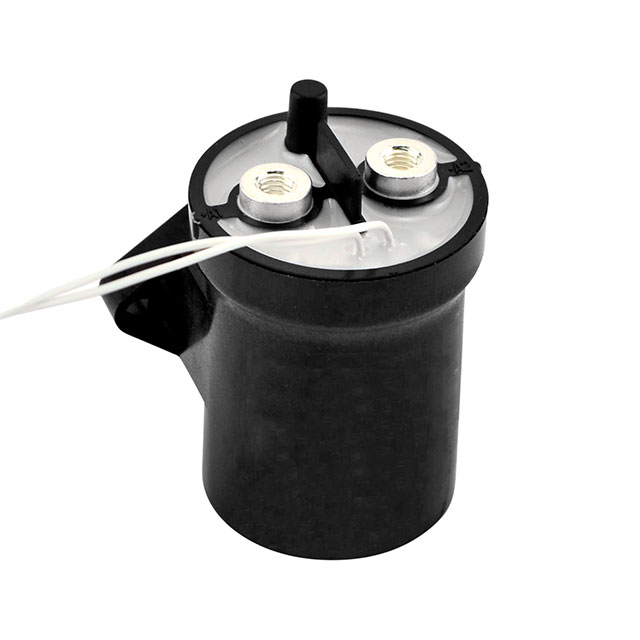

DCN 50A 900V 12V Coil SPST IP67 SMnt NP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

DCN 50A 900V 12V Coil SPST IP67 SMnt NP

Part	Must Operate Voltage	Coil Current	Coil Resistance	Switching Voltage	Operate Time	Contact Form	Contact Rating (Current)	Coil Power	Release Time	Termination Style	Mounting Type	Coil Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]
Littelfuse/Commercial Vehicle Products DCNLEV50-BSN	8 VDC	461 mA	26 Ohms	750 VDC	25 ms	SPST-NO (DM) (1 Form X)	50 A	5.5 W	10 ms	Stud Wire Leads	Chassis Mount	12 VDC	1.2 VDC	85 °C	-40 °C

Catalog

DCN 50A 900V 12V Coil SPST IP67 SMnt NP

Key Features

• High-voltage (750 V) contactor with a continuous current rating of 50 A for electric vehicle (EV) and eMobility applications

• 12 V dc (nominal), 8-16 V dc (working) coil voltage

• Non-polarized load terminals

• Side mounting style

Description

The DCNLEV50 Series 750 V 50 A High-Voltage DC Contactor Relay is designed for electric vehicle (EV) and eMobility applications, including battery power supply, charging station, motor control, circuit protection, and other switch controls as well as industrial machinery applications. The magnetic arc blowout design in an IP67 sealed, gas-filled chamber dissipates electrical arc between the contacts. This design allows the automotive relay to safely make/break higher voltages. This configuration of the DCNLEV50 series electric vehicle contactor (DCNLEV50-BSN) features a 12 V coil and non-polarized contacts. In addition, the 50 A relay has a side mounting style.
