1735480 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 120POS SMD GOLD

Part	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch	Pitch	Mated Stacking Heights	Number of Rows [custom]	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type
TE Connectivity AMP Connectors 5-1735480-5	120	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.203 çm	8 µin	Surface Mount

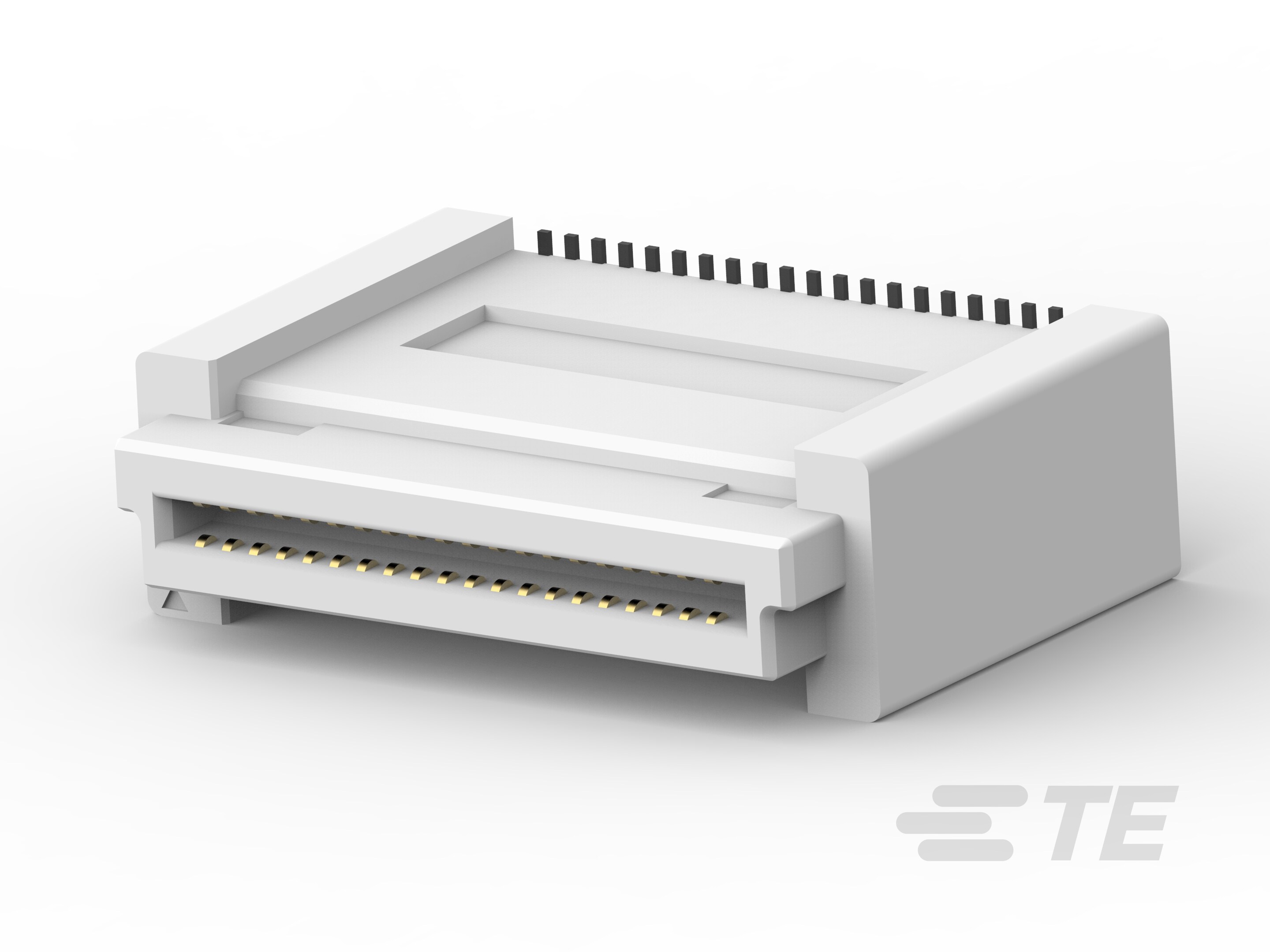

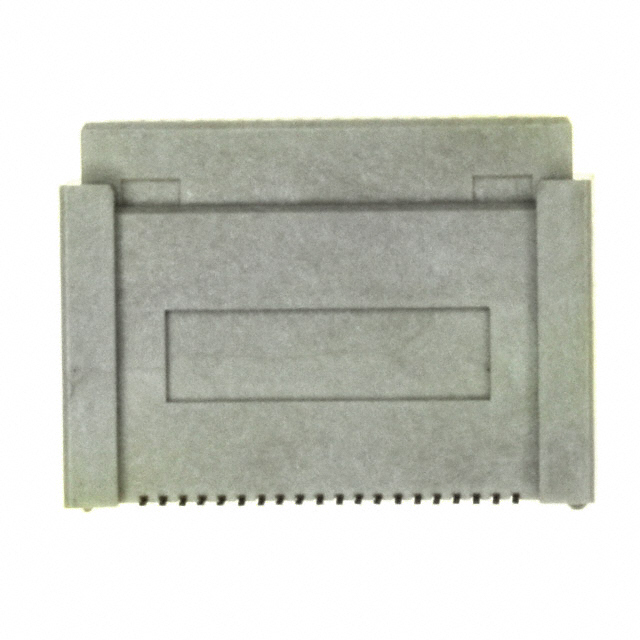

TE Connectivity AMP Connectors 5-1735480-1	40	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.203 çm	8 µin	Surface Mount

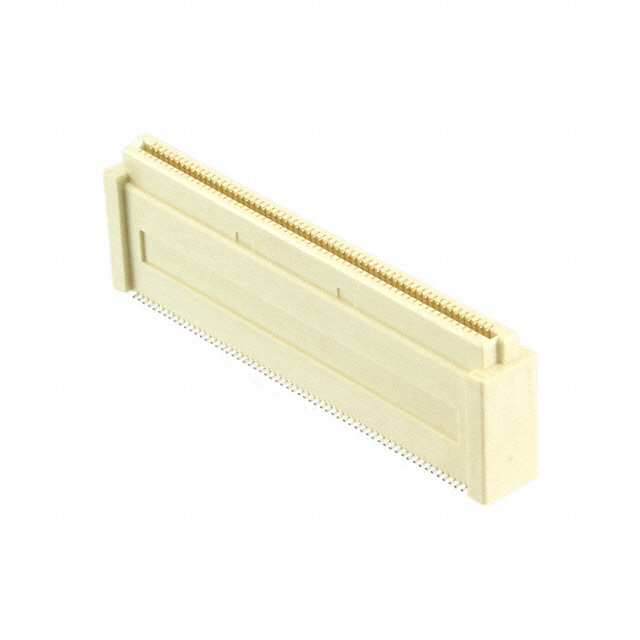

TE Connectivity AMP Connectors 7-1735480-5	120	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.76 Ám	30 Áin	Surface Mount

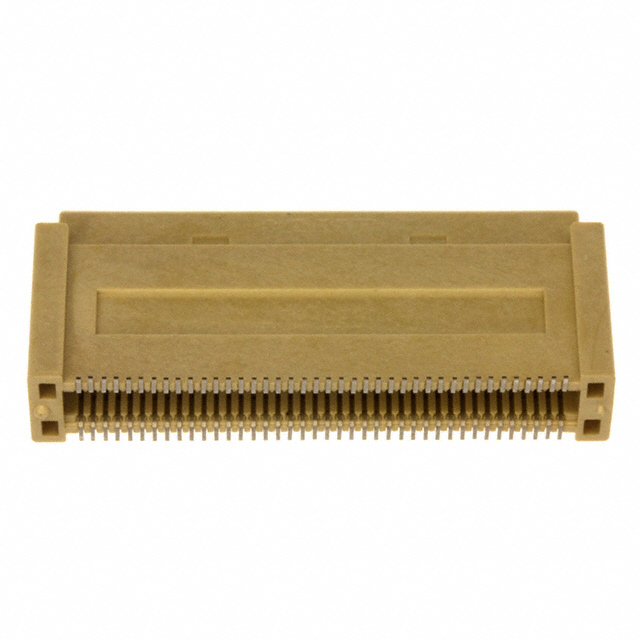

TE Connectivity AMP Connectors 5-1735480-3	80	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.203 çm	8 µin	Surface Mount
TE Connectivity AMP Connectors 5-1735480-9	180	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.203 çm	8 µin	Surface Mount
TE Connectivity AMP Connectors 7-1735480-2	60	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.76 Ám	30 Áin	Surface Mount

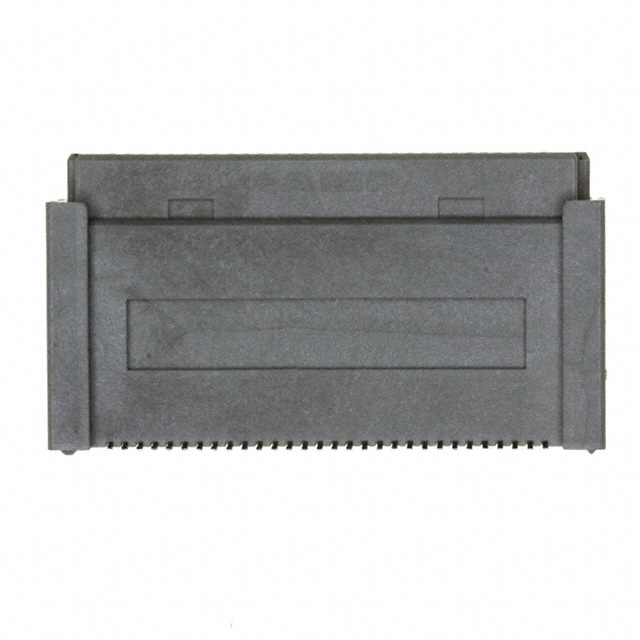

TE Connectivity AMP Connectors 5-1735480-2	60	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.203 çm	8 µin	Surface Mount

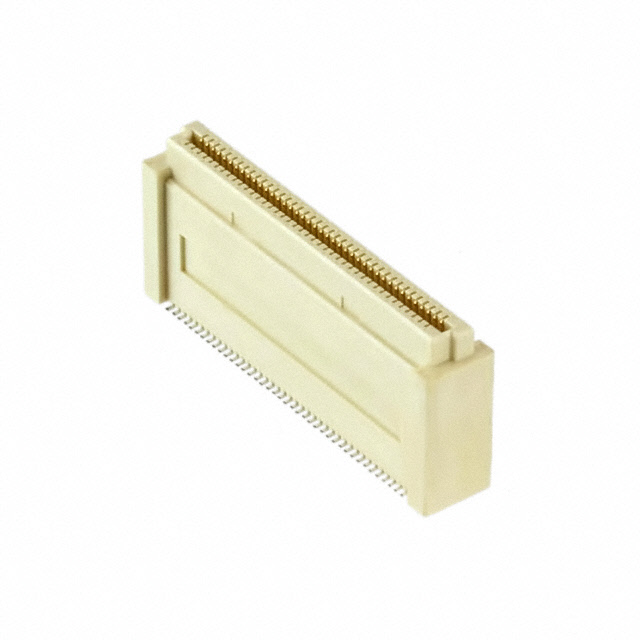

TE Connectivity AMP Connectors 7-1735480-3	80	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.76 Ám	30 Áin	Surface Mount

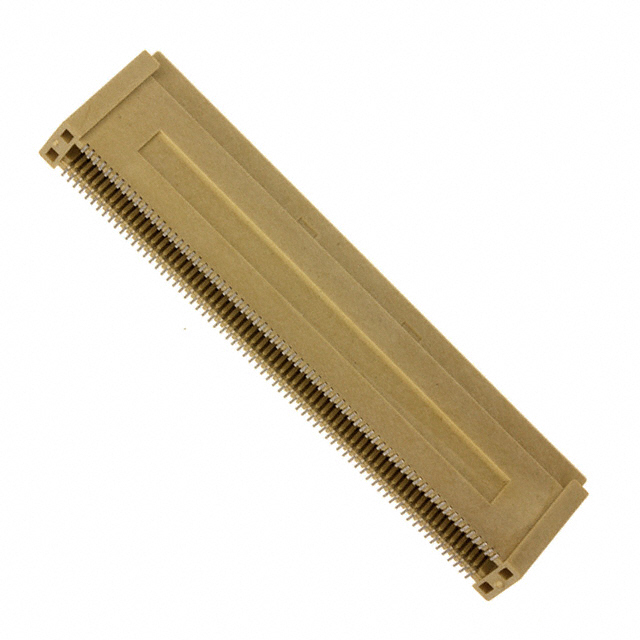

TE Connectivity AMP Connectors 5-1735480-6	140	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.203 çm	8 µin	Surface Mount

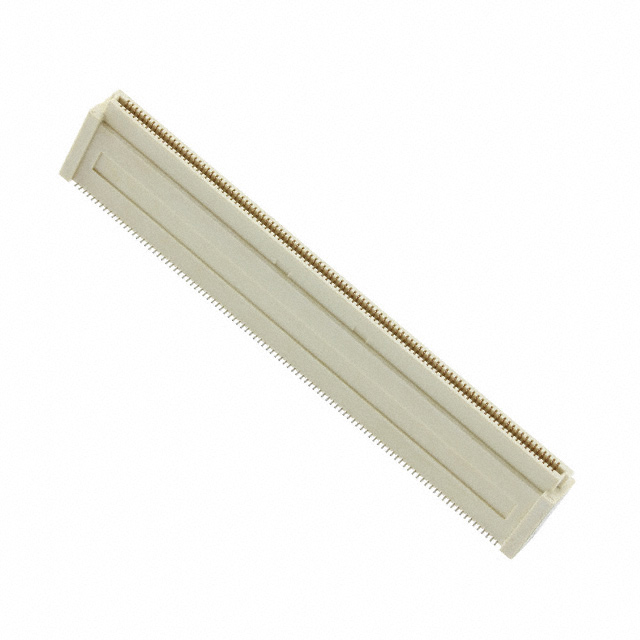

TE Connectivity AMP Connectors 8-1735480-0	200	15.75 mm	0.62 in	Gold	0.8 mm	0.031 in	17 mm	2	Receptacle Outer Shroud Contacts	Board Guide	0.76 Ám	30 Áin	Surface Mount
