ESS010W Series

Catalog

LED DRIVER CC AC/DC 6-12V 750MA

Part	Mounting Type	Efficiency	Current - Output (Max) [Max]	Dimming	Type	Number of Outputs	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Topology	Voltage - Input (Min) [Min]	Ratings	Voltage - Output [Max]	Voltage - Output [Min]	Features	Power (Watts)	Termination Style	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature
ERP Power, LLC ESS010W-0750-12	Chassis Mount	87 %	750 mA	Analog ELV TRIAC	Constant Current	1	CB CCC CE cRUcs CSA ENEC FC KC NEMKO SA UL	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	277 VAC	AC DC Converter	120 VAC	IP64	12 V	6 V	OCP OTP SCP	9 W	Wire Leads
ERP Power, LLC ESS010W-0200-42	Chassis Mount	87 %	200 mA	Analog ELV TRIAC	Constant Current	1	CB CE cRUcs cUL FC UL	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	277 VAC	AC DC Converter	120 VAC	IP64 NEMA 410	42 V	28 V	OCP OTP SCP	8 W	Wire Leads	154 g	0.34 lb	-30 ░C	90 °C
ERP Power, LLC ESS010W-0180-42	Chassis Mount	87 %	180 mA	Analog ELV TRIAC	Constant Current	1	CB CE cRUcs cUL FC UL	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	277 VAC	AC DC Converter	120 VAC	IP64 NEMA 410	42 V	28 V	OCP OTP SCP	8 W	Wire Leads	154 g	0.34 lb	-30 ░C	90 °C
ERP Power, LLC ESS010W-0500-12	Chassis Mount	87 %	500 mA	Analog ELV TRIAC	Constant Current	1	CB CCC CE cRUcs CSA ENEC FC KC NEMKO SA UL	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	277 VAC	AC DC Converter	120 VAC	IP64	12 V	6 V	OCP OTP SCP	6 W	Wire Leads
ERP Power, LLC ESS010W-0350-24	Chassis Mount	87 %	350 mA	Analog ELV TRIAC	Constant Current	1	CB CE cRUcs cUL FC UL	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	277 VAC	AC DC Converter	120 VAC	IP64 NEMA 410	24 V	14 V	OCP OTP SCP	8 W	Wire Leads	154 g	0.34 lb	-30 ░C	90 °C
ERP Power, LLC ESS010W-0250-42-Z1	Chassis Mount	87 %	250 mA	Analog ELV TRIAC	Constant Current	1	CE cURus	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	277 VAC	AC DC Converter	120 VAC	IP64	42 V	28 V	OCP OTP SCP	11 W	Wire Leads					194 °F

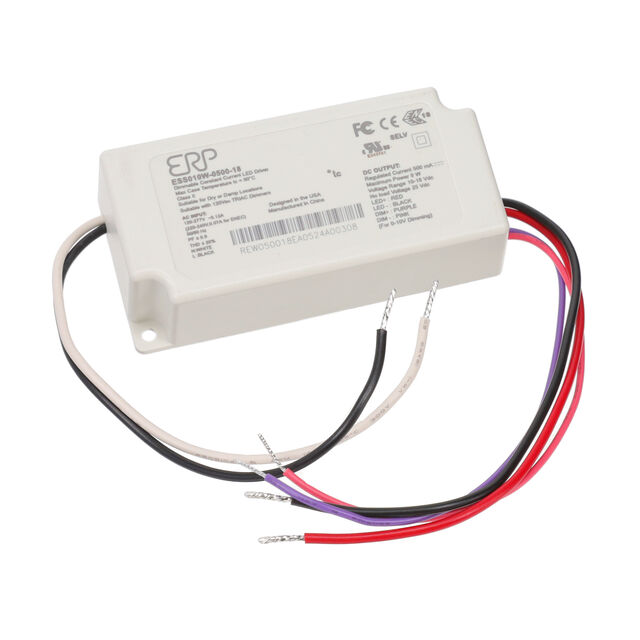

ERP Power, LLC ESS010W-0500-18	Chassis Mount	87 %	500 mA	Analog ELV TRIAC	Constant Current	1	CE cURus	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	277 VAC	AC DC Converter	120 VAC	IP64	18 V	10 V	OCP OTP SCP	9 W	Wire Leads			-30 ░C	70 °C
ERP Power, LLC ESS010W-0250-42	Chassis Mount	87 %	250 mA	Analog ELV TRIAC	Constant Current	1	CB CCC CE cRUcs CSA ENEC FC KC NEMKO SA UL	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	277 VAC	AC DC Converter	120 VAC	IP64	42 V	28 V	OCP OTP SCP	11 W	Wire Leads
