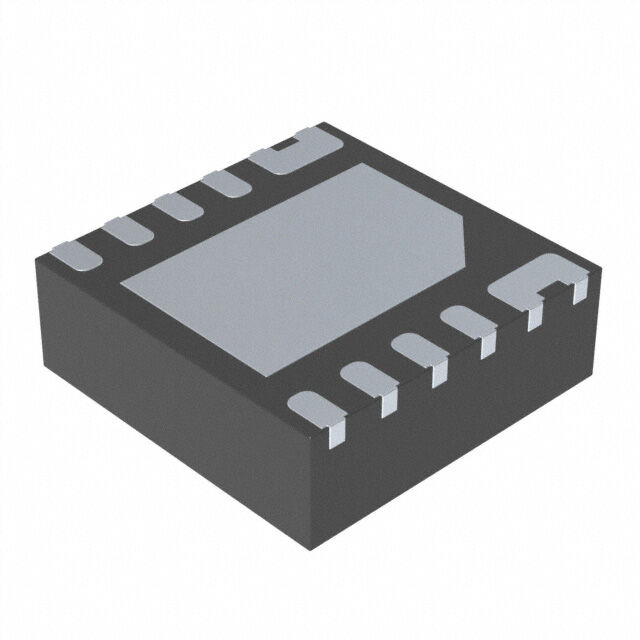

AOZ1376 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Beta
⌘K
ECPOWER 20V 20M PROTECTION SWITC
| Part | Number of Outputs | Ratio - Input:Output | Input Type | Rds On (Typ) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Vcc/Vdd) | Voltage - Load [Max] | Voltage - Load [Min] | Package / Case | Output Type | Switch Type | Current - Output (Max) | Fault Protection | Features | Supplier Device Package | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alpha & Omega Semiconductor Inc. | 1 | 1:1 | Non-Inverting | 20 mOhm | Surface Mount | 85 C | -40 ¯C | Not Required | 22 V | 3.4 V | 12-VFDFN Exposed Pad | N-Channel | General Purpose | 5 A | Over Temperature Over Voltage Reverse Current UVLO | Slew Rate Controlled | 12-DFN (3x3) | High Side |
 Alpha & Omega Semiconductor Inc. | 1 | 1:1 | Non-Inverting | 20 mOhm | Surface Mount | 85 C | -40 ¯C | Not Required | 22 V | 3.4 V | 12-VFDFN Exposed Pad | N-Channel | General Purpose | 5 A | Over Temperature Over Voltage Reverse Current UVLO | Slew Rate Controlled | 12-DFN (3x3) | High Side |
