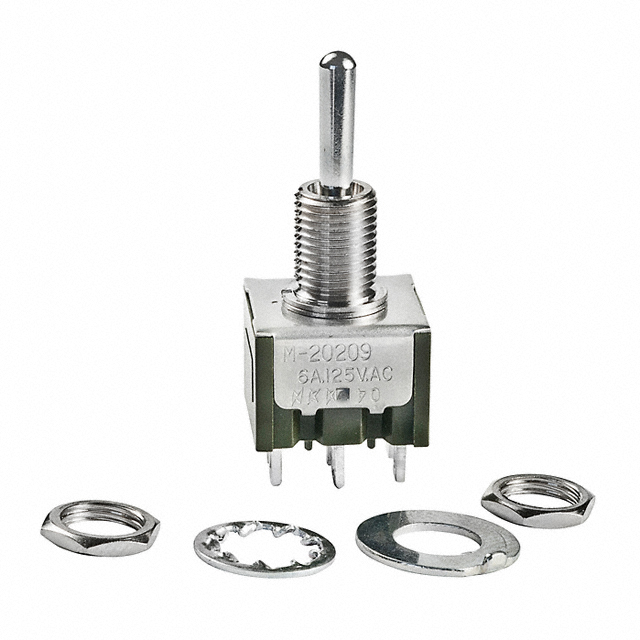

M2027SS Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SP3T 6A 125V
| Part | Actuator Material | Electrical Life | Actuator Type | Mounting Type | Current Rating (Amps) | Voltage Rating - DC | Voltage Rating - AC | Switch Function | Circuit | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Illumination | Features | Bushing Thread | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | Standard Round with Cap | Panel Mount | 3 A 6 A | 30 V | 125 V | On-On-Mom | SP3T | 6.5 mm | 13.5 mm | Non-Illuminated | Jumper needed to achieve triple throw | 1/4-40 | 85 °C | -30 ░C | PC Pin |
 NKK Switches | Brass Chrome Plated | 25000 Steps | Standard Round | Panel Mount | 3 A 6 A | 30 V | 125 V | On-On-Mom | SP3T | 6.5 mm | Non-Illuminated | Jumper needed to achieve triple throw | 1/4-40 | 85 °C | -30 ░C | Solder Lug |
