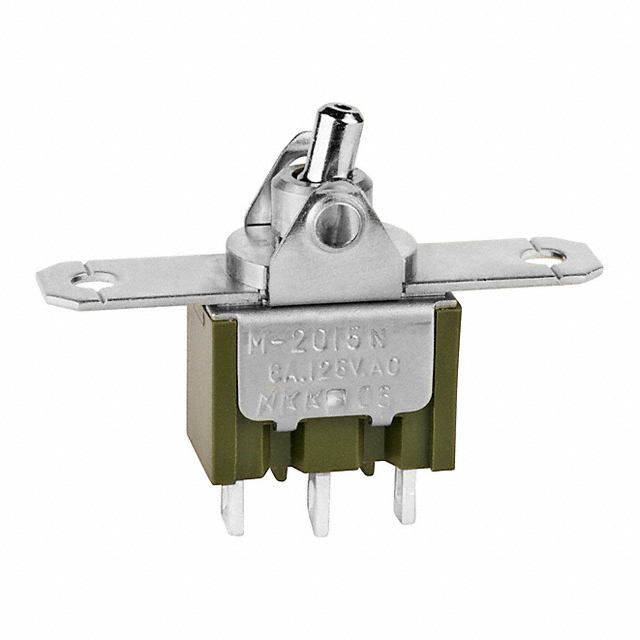

M2015TN Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 6A 125V
| Part | Mechanical Life | Electrical Life | Mounting Type | Voltage Rating - AC | Switch Function | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Approval Agency | Voltage Rating - DC | Current Rating (Amps) | Termination Style | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Features | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | On-Mom | Paddle | 12.4 mm | 0.5 in | CSA UL | 30 V | 3 A 6 A | Solder Lug | No Marking | 85 °C | -30 ░C | SPDT | ||
 NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | On-Mom | Actuator Arm Cap Required | CSA UL | 30 V | 3 A 6 A | PC Pin | Varies by Cap | 85 °C | -30 ░C | SPDT | Epoxy Sealed Terminals | |||
 NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | On-Mom | Concave | 10.1 mm | 17.8 mm | CSA UL | 30 V | 3 A 6 A | Solder Lug | No Marking | 85 °C | -30 ░C | SPDT | Epoxy Sealed Terminals | Black |
NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | On-Mom | Paddle | 10.1 mm | 17.8 mm | CSA UL | 30 V | 3 A 6 A | Solder Lug | No Marking | 85 °C | -30 ░C | SPDT | Epoxy Sealed Terminals | Black |
NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | On-Mom | Paddle | 12.4 mm | 0.5 in | CSA UL | 30 V | 3 A 6 A | Solder Lug | No Marking | 85 °C | -30 ░C | SPDT | Blue | |
 NKK Switches | 50000 Cycles | 25000 Steps | Flange Panel Mount | 125 V | On-Mom | Actuator Arm Cap Required | CSA UL | 30 V | 3 A 6 A | Solder Lug | Varies by Cap | 85 °C | -30 ░C | SPDT | Epoxy Sealed Terminals |
