GLDB01 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 6A 120V

Part	Switch Function	Operating Position	Termination Style	Voltage Rating - DC	Circuit	Overtravel	Ingress Protection	Mechanical Life	Pretravel	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Differential Travel	Operating Position	Overtravel	Pretravel	Features	Differential Travel

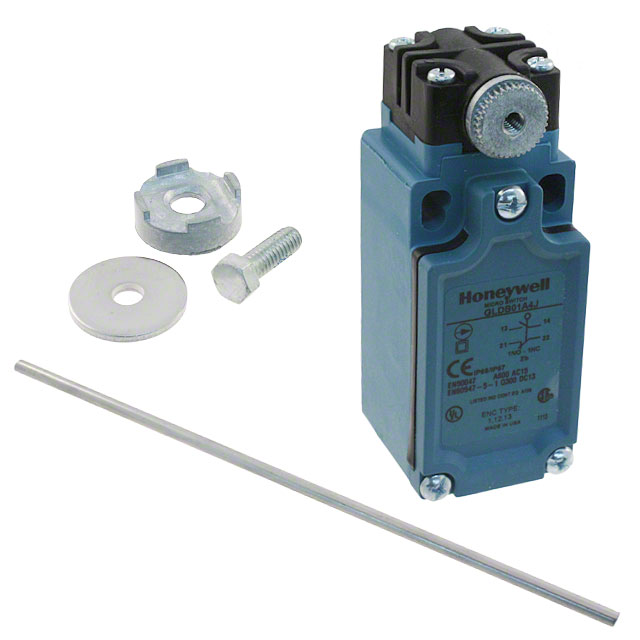

Honeywell Sensing and Productivity Solutions GLDB01A4J	On-Mom	26 °	Screw Terminal	125 VDC	SPDT	49 °	IP67 - Dust Tight Waterproof	10000000 Cycles	26 °	12 gfm	85 °C	-40 °C	Chassis Mount	6 A 550 mA	Side Rotary Adjustable Rod	120 V	12 °

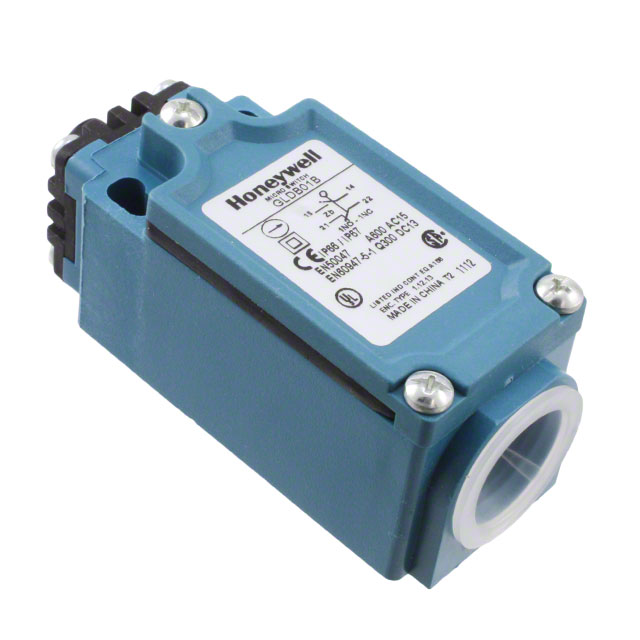

Honeywell Sensing and Productivity Solutions GLDB01B	On-Mom	0.71 "	Screw Terminal	125 VDC	SPDT	0.118 in	IP67 - Dust Tight Waterproof	15000000 Cycles	0.12 in	1632 gf	85 °C	-40 °C	Chassis Mount	6 A 550 mA	Round (Pin Plunger)	120 V		18 mm	3 mm	3 mm
Honeywell Sensing and Productivity Solutions GLDB01C	On-Mom	1.1 in	Screw Terminal	125 VDC	SPDT	0.118 in	IP67 - Dust Tight Waterproof	15000000 Cycles	0.12 in	1632 gf	85 °C	-40 °C	Chassis Mount	6 A 550 mA	Roller Plunger	120 V		28 mm	3 mm	3 mm
Honeywell Sensing and Productivity Solutions GLDB01A2Y	On-Mom	26 °	Screw Terminal	125 VDC	SPDT	49 °	IP67 - Dust Tight Waterproof	10000000 Cycles	26 °	12 gfm	85 °C	-40 °C	Chassis Mount	6 A 550 mA	Side Rotary Adjustable Roller	120 V	12 °				Rubber Roller

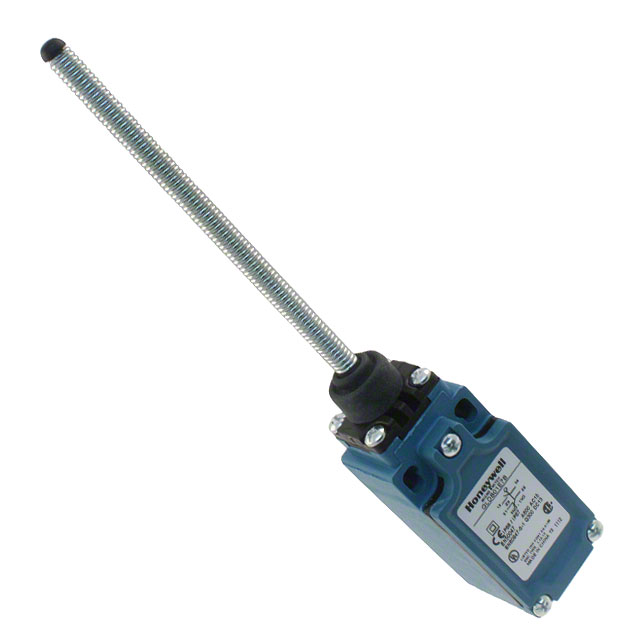

Honeywell Sensing and Productivity Solutions GLDB01E7B	On-Mom	16 °	Screw Terminal	125 VDC	SPDT	35 °	IP66	5000000 Cycles	16 °	132 gf	85 °C	-25 °C	Chassis Mount	6 A 550 mA	Coil Spring	120 V	10 °

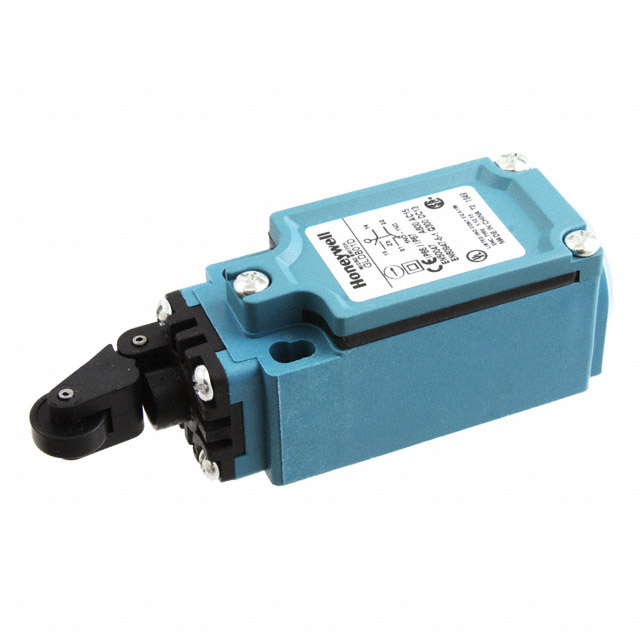

Honeywell Sensing and Productivity Solutions GLDB01D	On-Mom	1.409 in	Screw Terminal	125 VDC	SPDT	0.205 in	IP67 - Dust Tight Waterproof	10000000 Cycles	0.138 in	953 gf	85 °C	-40 °C	Chassis Mount	6 A 550 mA	Lever Roller	120 V	0.05 in	35.8 mm	5.2 mm	3.5 mm		1.3 mm
