1337583 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

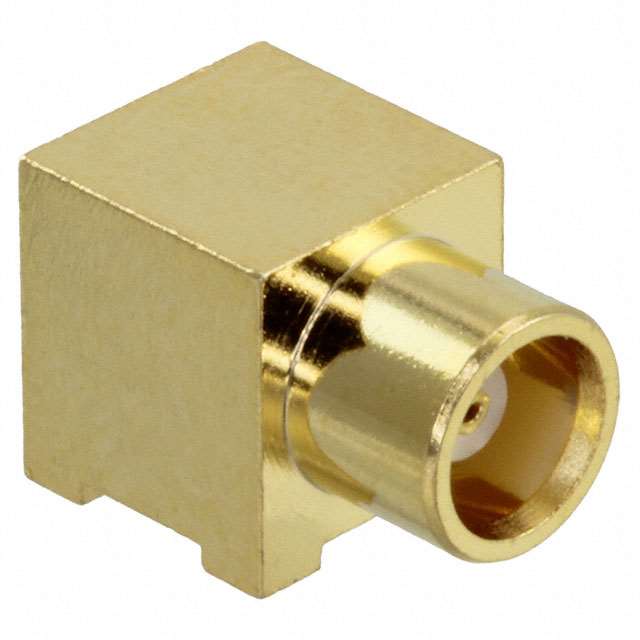

MCX R/A SMT SKT 50OHM GOLD PLTD
| Part | Body Finish | Dielectric Material | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Plating | Voltage Rating | Mating Cycles | Impedance | Mounting Type | Housing Color | Center Contact Material | Number of Ports | Connector Type | Shield Termination | Contact Termination | Connector Style | Frequency - Max [Max] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Polytetrafluoroethylene (PTFE) | 0.1 dB | 85 °C | -40 C | Brass | Gold | 335 V | 500 | 50 Ohms | Right Angle Surface Mount | Gold | Beryllium Copper | 1 | Female Socket Jack | Solder | Solder | MCX | 6000 MHz | Snap-On |
 TE Connectivity AMP Connectors | Gold | Polytetrafluoroethylene (PTFE) | 0.1 dB | 85 °C | -40 C | Brass | Gold | 335 V | 500 | 50 Ohms | Right Angle Surface Mount | Gold | Beryllium Copper | 1 | Female Socket Jack | Solder | Solder | MCX | 6000 MHz | Snap-On |
