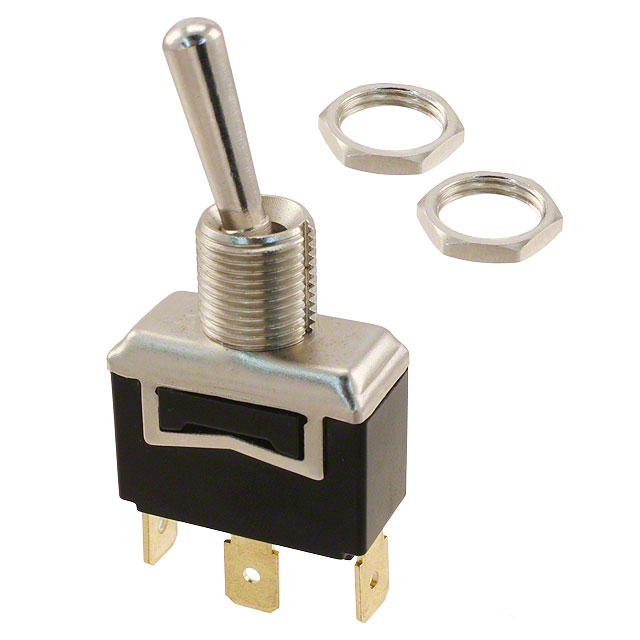

ST14 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE SPDT 20A 125V
| Part | Actuator Material | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Bushing Thread | Current Rating (Amps) | Termination Style | Voltage Rating - AC | Mounting Type | Switch Function | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Circuit | Actuator Type | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Brass Nickel Plated | 6000 Cycles | 0 °C | 85 °C | M12 x 1 | 20 A | Quick Connect - 0.250" (6.3mm) | 125 V | Panel Mount | Mom-Off-Mom | 12 mm | 13 mm | SPDT | Standard Round | Non-Illuminated |
 E-Switch | Brass Nickel Plated | 6000 Cycles | 0 °C | 85 °C | M12 x 1 | 20 A | Quick Connect - 0.250" (6.3mm) | 125 V | Panel Mount | Mom-Off-Mom | 12 mm | 19.5 mm | SPDT | Standard Round | Non-Illuminated |
 E-Switch | Brass Nickel Plated | 6000 Cycles | 0 °C | 85 °C | M12 x 1 | 20 A | Quick Connect - 0.250" (6.3mm) | 125 V | Panel Mount | On-Off-Mom | 12 mm | 19.5 mm | SPDT | Standard Round | Non-Illuminated |
E-Switch | Brass Nickel Plated | 6000 Cycles | 0 °C | 85 °C | 15/32-32 | 20 A | Quick Connect - 0.250" (6.3mm) | 125 V | Panel Mount | On-Off | 12 mm | 19.5 mm | SPST | Standard Round | Non-Illuminated |
