826941 Series

Catalog

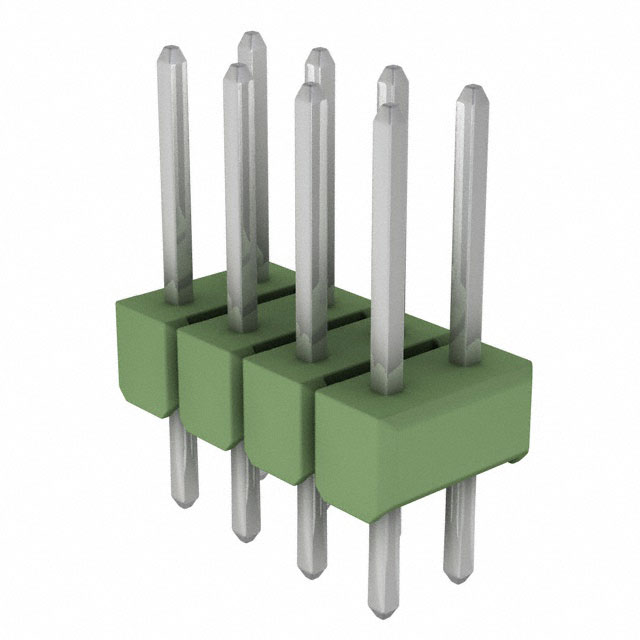

CONN HEADER VERT 8POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Termination	Insulation Color	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions	Contact Material	Shrouding	Contact Type	Number of Positions Loaded	Connector Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Mounting Type	Contact Shape	Contact Length - Mating	Contact Length - Mating
TE Connectivity AMP Connectors 826941-4	78.7 µin	2 µm	Solder	Green	Tin	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	0.1 "	2.54 mm	5 A	UL94 V-0	0.1 in	2.54 mm	Push-Pull	12 mm	0.472 in	8	Copper Alloy	Unshrouded	Male Pin	All	Header Breakaway	Board to Board Cable	105 ░C	-65 ░C	2.5 mm	0.098 in	2	Through Hole	Square	6.7 mm	0.264 in
