TPS82671 Series
Manufacturer: Texas Instruments
Beta
⌘K

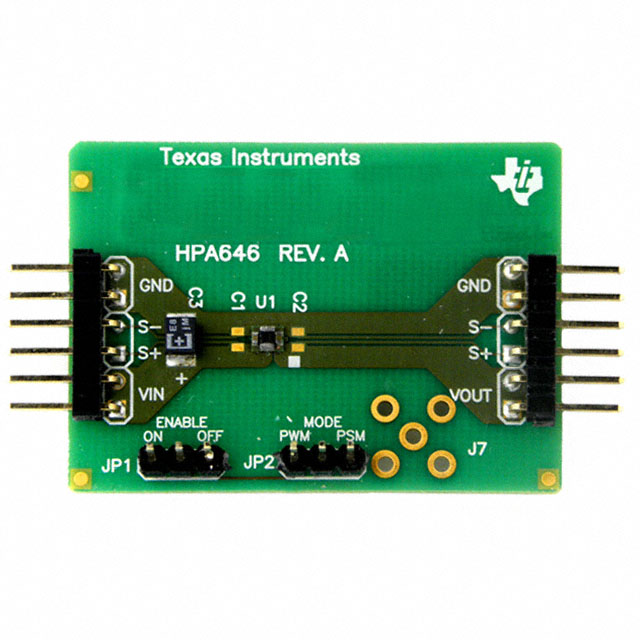

EVAL MODULE FOR TPS82671-646
| Part | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Contents | Current - Output | Utilized IC / Part | Regulator Topology | Frequency - Switching | Main Purpose | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Features | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Type | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Current - Output (Max) [Max] | Voltage - Output 1 | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Board(s) | 600 mA | TPS82671-646 | Buck | 6 MHz | DC/DC Step Down | 1.8 V | 4.8 V | 2.3 V | |||||||||||||||||||||||
 Texas Instruments | ITE (Commercial) | OCP OTP Remote On/Off UVLO | 2.3 V | 4.8 V | Non-Isolated PoL Module | 90 % | 85 °C | -40 C | 1 | 8-SMD Module | 2.4 mm | 0.09 " | 0.04 in | 3 mm | 0.12 inches | 1 mm | Surface Mount | 600 mA | 1.8 V | 2.3 | 8-uSIP | 2.9 | Active High Enable | |||||||||||||
Texas Instruments | ITE (Commercial) | OCP OTP Remote On/Off UVLO | 2.3 V | 4.8 V | Non-Isolated PoL Module | 90 % | 85 °C | -40 C | 1 | 8-SMD Module | 2.4 mm | 0.09 " | 0.04 in | 3 mm | 0.12 inches | 1 mm | Surface Mount | 600 mA | 1.8 V | 2.3 | 8-uSIP | 2.9 | Active High Enable |
