172487 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 2POS 2.5MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Type	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Connector Type	Contact Finish - Post	Style	Insulation Material	Number of Rows	Contact Material	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Contact Shape	Number of Positions	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
TE Connectivity AMP Connectors 2-172487-2	General Purpose	0.8 µm	31.5 µin	Black	14 mm	0.551 in	UL94 V-0	Male Pin	Detent Lock	Through Hole	31.5 µin	0.8 µm	Solder	Header	Tin	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	1	Brass	7.49 mm	0.295 in	250 VAC 350 VDC	Square	2	2 A	All	2.5 mm	0.098 in	Shrouded - 1 Wall	0.142 in	3.6 mm	0.409 in	10.4 mm
TE Connectivity AMP Connectors 172487-2	General Purpose	0.8 µm	31.5 µin	Natural	14 mm	0.551 in	UL94 V-0	Male Pin	Detent Lock	Through Hole	31.5 µin	0.8 µm	Solder	Header	Tin	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	1	Brass	7.49 mm	0.295 in	250 VAC 350 VDC	Square	2	2 A	All	2.5 mm	0.098 in	Shrouded - 1 Wall	0.142 in	3.6 mm	0.409 in	10.4 mm

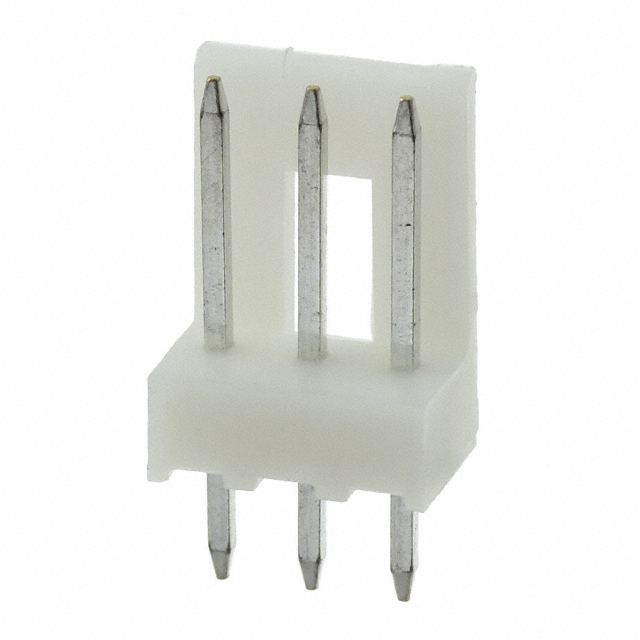

TE Connectivity AMP Connectors 172487-3	General Purpose	0.8 µm	31.5 µin	Natural	14 mm	0.551 in	UL94 V-0	Male Pin	Detent Lock	Through Hole	31.5 µin	0.8 µm	Solder	Header	Tin	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	1	Brass	7.49 mm	0.295 in	250 VAC 350 VDC	Square		2 A	All	2.5 mm	0.098 in	Shrouded - 1 Wall	0.142 in	3.6 mm	0.409 in	10.4 mm
