1393304 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

POWER RELAY 24VDC 100A SPST-NO-DM(25.9X25.9X27.4)MM THT

Part	Coil Resistance	Release Time	Must Release Voltage	Must Operate Voltage	Contact Material	Relay Type	Coil Voltage	Operate Time	Termination Style	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating (Current)	Contact Form	Coil Current	Coil Type	Coil Power	Termination Style
TE Connectivity AMP Connectors 6-1393304-8	324 Ohms	2 ms	3.2 VDC	14.4 VDC	Silver Alloy	General Purpose	24 VDC	7 ms	PC Pin	28 VDC	125 °C	-40 C	Through Hole	15 A	DPST-NO (2 Form A)	74.1 mA	Non Latching

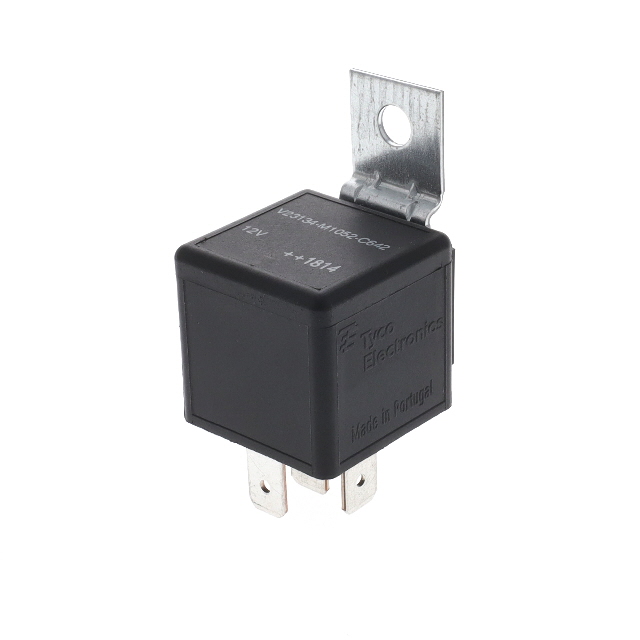

TE Connectivity AMP Connectors 7-1393304-1	90 Ohms	2 ms	1.6 VDC	7.2 VDC	Silver Alloy	General Purpose	12 VDC	7 ms		14 VDC	125 °C	-40 C	Chassis Mount	25 A	SPST-NO (DM) (1 Form U)	133.3 mA	Non Latching
TE Connectivity AMP Connectors 1-1393304-1	324 Ohms	2 ms	3.2 VDC	14.4 VDC	Silver Alloy		24 VDC	7 ms	Plug In Quick Connect	24 VDC	125 °C	-40 C	Chassis Mount	70 A	SPST-NO (1 Form A)		Non Latching	1.8 W

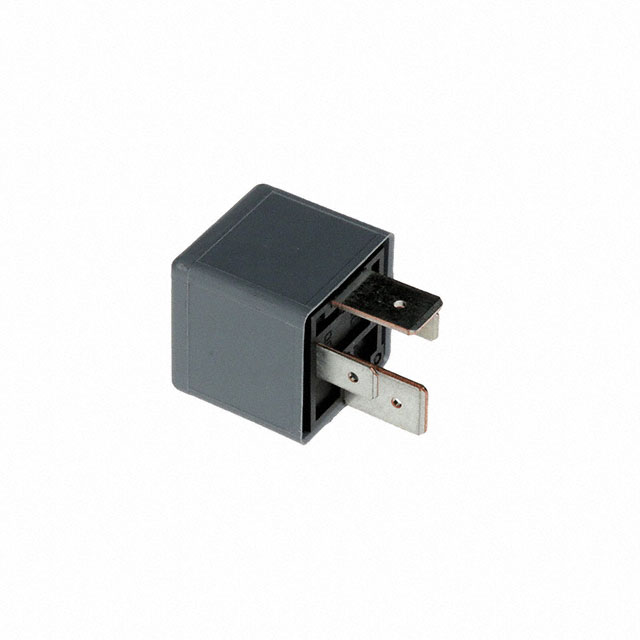

TE Connectivity AMP Connectors 1393304-5	268 Ohms	2 ms	4 VDC	16 VDC	Silver Alloy	General Purpose	24 VDC	7 ms	Quick Connect	24 VDC	125 °C	-40 C	Socketable	70 A	SPST-NO (1 Form A)	89.6 mA	Non Latching		0.187 in 0.25 in

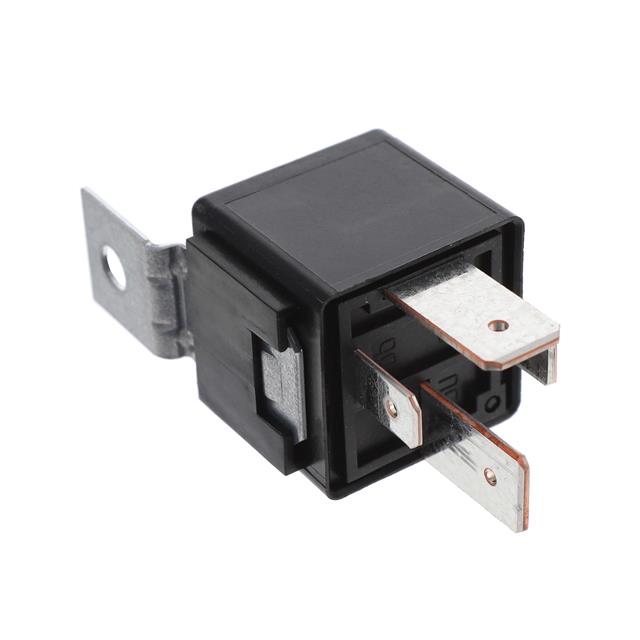

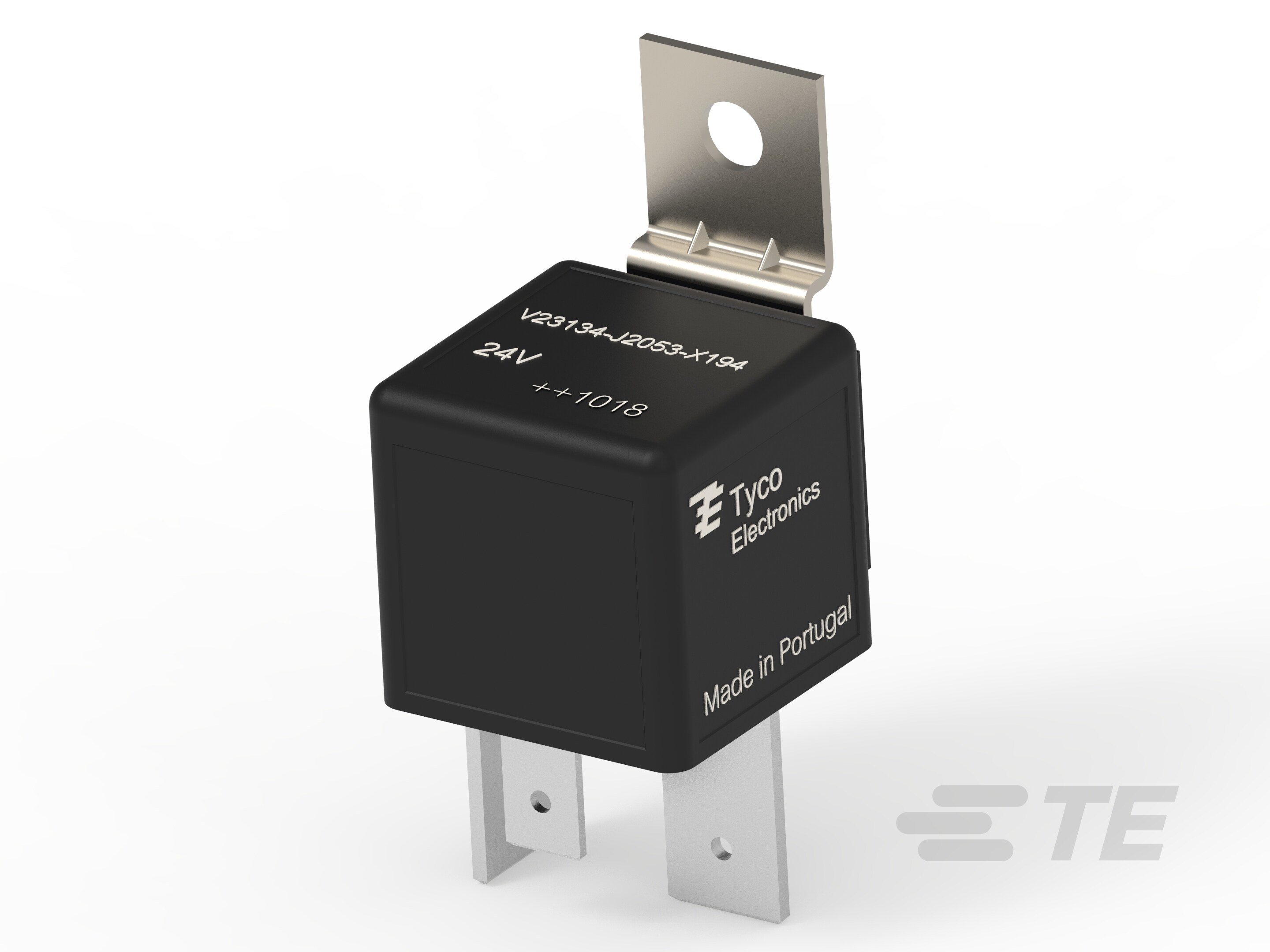

TE Connectivity AMP Connectors 1-1393304-8		2 ms	3.2 VDC	14.4 VDC	Silver Alloy	General Purpose	24 VDC	7 ms	Quick Connect	24 VDC	125 °C	-40 C	Chassis Mount	70 A	SPST-NO (1 Form A)	74.1 mA	Non Latching		0.187 in 0.25 in
TE Connectivity AMP Connectors 5-1393304-7	90 Ohms	2 ms	1.6 VDC	7.2 VDC	Silver Alloy	General Purpose	12 VDC	7 ms	PC Pin	14 VDC	125 °C	-40 C	Through Hole	25 A	DPST-NO (2 Form A)	133.3 mA	Non Latching
TE Connectivity AMP Connectors 1-1393304-8	324 Ohms	2 ms	3.2 VDC	14.4 VDC	Silver Alloy	General Purpose	24 VDC	7 ms	Quick Connect	24 VDC	125 °C	-40 C	Chassis Mount	70 A	SPST-NO (1 Form A)	74.1 mA	Non Latching		0.187 in 0.25 in
