59K106 Series
Manufacturer: Rosenberger
Beta
⌘K

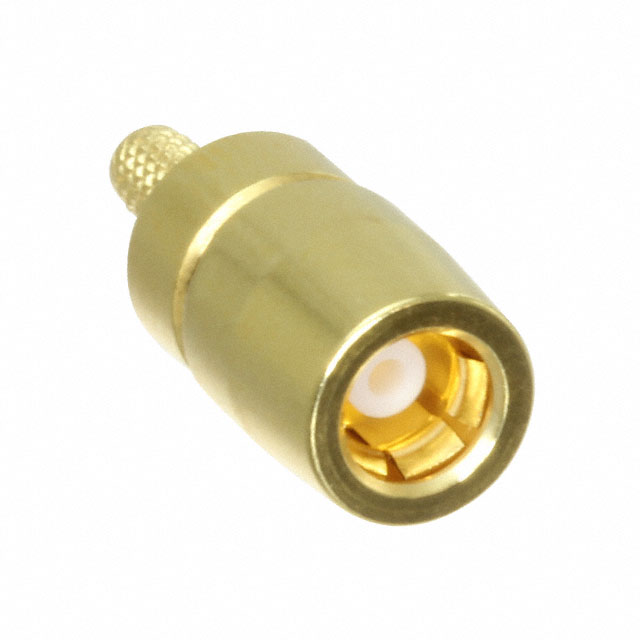

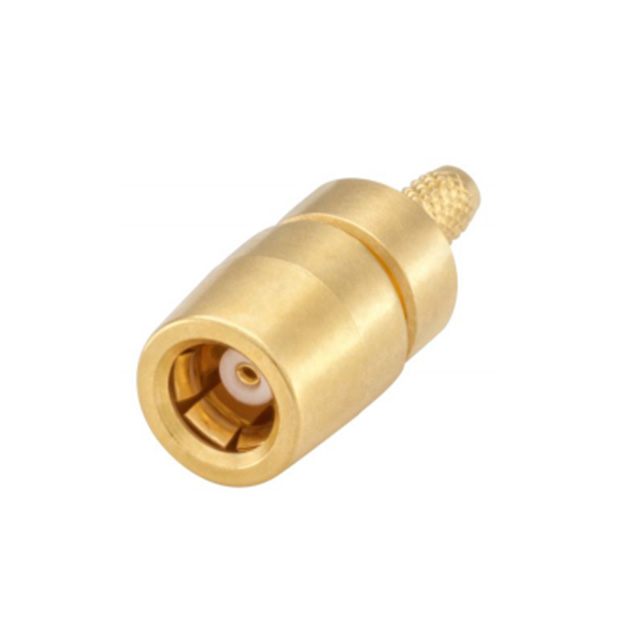

CONN SMB JACK STR 50OHM CRIMP
| Part | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Voltage Rating | Body Finish | Center Contact Plating | Includes | Dielectric Material | Frequency - Max [Max] | Connector Type | Cable Group | Connector Style | Center Contact Material | Mounting Type | Number of Ports | Contact Termination | Fastening Type | Impedance | Housing Color | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | 155 C | -55 C | 500 | 250 V | Gold | Gold | 1 Connector 1 Contact 1 Ferrule | Polytetrafluoroethylene (PTFE) | 4 GHz | Female Socket Jack | RG-316 | SMB | Beryllium Copper | Free Hanging (In-Line) | 1 | Crimp | Snap-On | 50 Ohms | Gold | Crimp |
 Rosenberger | Beryllium Copper | 155 C | -55 C | 500 | 250 V | Gold | Gold | 1 Connector 1 Contact 1 Ferrule | Polytetrafluoroethylene (PTFE) | 4 GHz | Female Socket Jack | 196A RG-178B | SMB | Beryllium Copper | Free Hanging (In-Line) | 1 | Crimp | Snap-On | 50 Ohms | Gold | Crimp |
