M80-842 Series

Catalog

4 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Connector Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Material	Insulation Color	Number of Rows	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Style	Contact Finish - Mating	Fastening Type	Features	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Termination	Number of Positions	Contact Length - Post	Contact Length - Post	Shrouding	Contact Type	Current Rating (Amps)	Mounting Type	Contact Material	Insulation Height	Insulation Height	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]
Harwin Inc. M80-8420445	29.5 µin	0.75 µm	Circular	Header	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Black	1	120 VDC	-55 C	125 °C	Gold	Board to Board Cable	Gold	Latch Lock	Strain Relief Clips	0.079 "	2 mm	All	UL94 V-0	Solder	4	0.118 in	3 mm	Shrouded - 4 Wall	Male Pin	2.2 A	Right Angle Through Hole	Phosphor Bronze	0.156 in	3.96 mm
Harwin Inc. M80-8420542			Circular	Header	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Black	1	120 VDC	-55 C	125 °C	Tin	Board to Board Cable	Gold	Latch Lock	Strain Relief Clips	0.079 "	2 mm	All	UL94 V-0	Solder	5	0.118 in	3 mm	Shrouded - 4 Wall	Male Pin	2.2 A	Right Angle Through Hole	Phosphor Bronze	0.156 in	3.96 mm	118.1 µin	3 µm

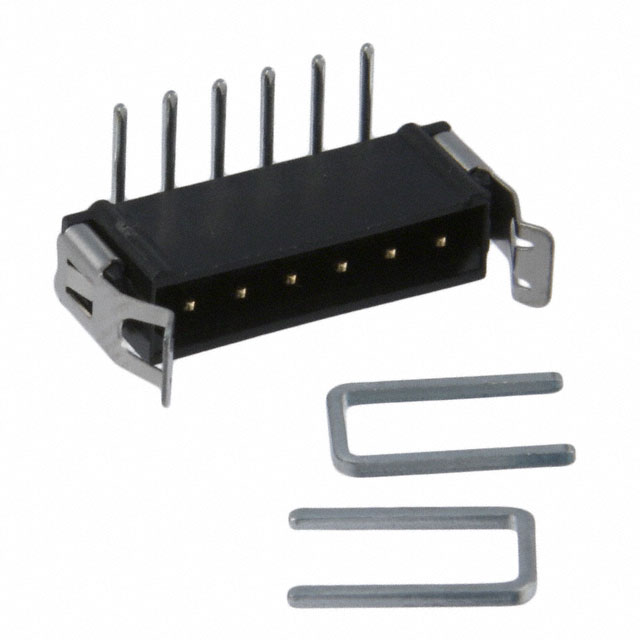

Harwin Inc. M80-8420642			Circular	Header	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Black	1	120 VDC	-55 C	125 °C	Tin	Board to Board Cable	Gold	Latch Lock	Strain Relief Clips	0.079 "	2 mm	All	UL94 V-0	Solder	6	0.118 in	3 mm	Shrouded - 4 Wall	Male Pin	2.2 A	Right Angle Through Hole	Phosphor Bronze	0.156 in	3.96 mm	118.1 µin	3 µm

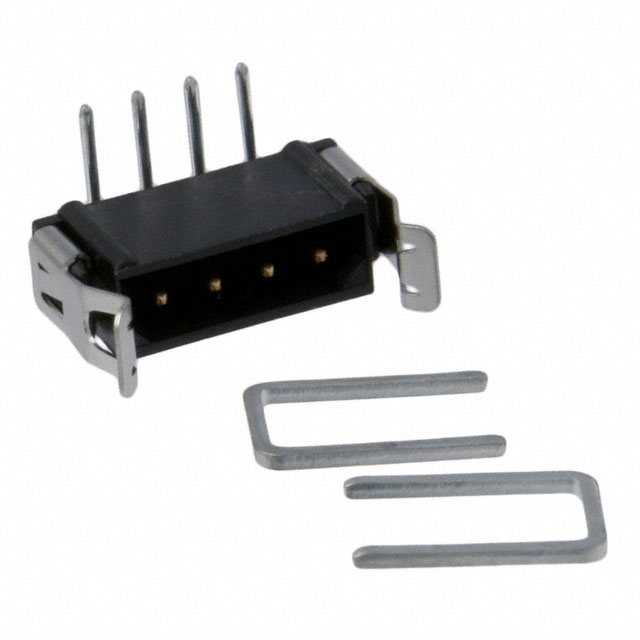

Harwin Inc. M80-8420442			Circular	Header	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Black	1	120 VDC	-55 C	125 °C	Tin	Board to Board Cable	Gold	Latch Lock	Strain Relief Clips	0.079 "	2 mm	All	UL94 V-0	Solder	4	0.118 in	3 mm	Shrouded - 4 Wall	Male Pin	2.2 A	Right Angle Through Hole	Phosphor Bronze	0.156 in	3.96 mm	118.1 µin	3 µm
Harwin Inc. M80-8420245	29.5 µin	0.75 µm	Circular	Header	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Black	1	120 VDC	-55 C	125 °C	Gold	Board to Board Cable	Gold	Latch Lock	Strain Relief Clips	0.079 "	2 mm	All	UL94 V-0	Solder	2	0.118 in	3 mm	Shrouded - 4 Wall	Male Pin	2.2 A	Right Angle Through Hole	Phosphor Bronze	0.156 in	3.96 mm
Harwin Inc. M80-8420345	29.5 µin	0.75 µm	Circular	Header	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Black	1	120 VDC	-55 C	125 °C	Gold	Board to Board Cable	Gold	Latch Lock	Strain Relief Clips	0.079 "	2 mm	All	UL94 V-0	Solder		0.118 in	3 mm	Shrouded - 4 Wall	Male Pin	2.2 A	Right Angle Through Hole	Phosphor Bronze	0.156 in	3.96 mm

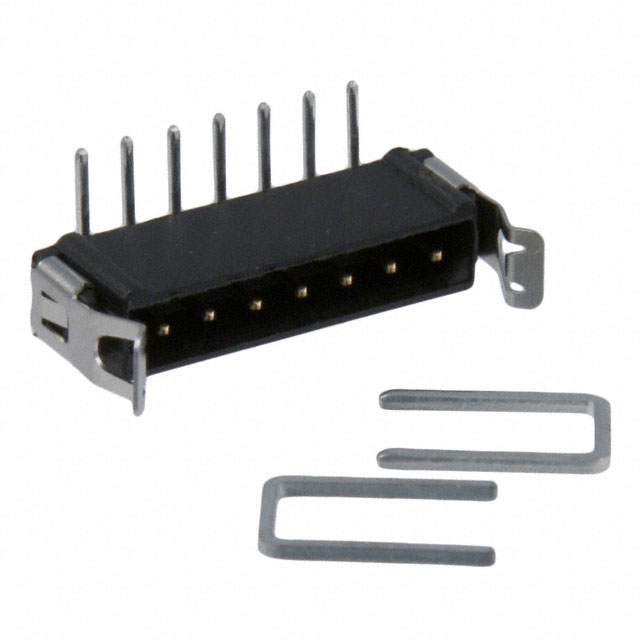

Harwin Inc. M80-8420742			Circular	Header	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Black	1	120 VDC	-55 C	125 °C	Tin	Board to Board Cable	Gold	Latch Lock	Strain Relief Clips	0.079 "	2 mm	All	UL94 V-0	Solder	7	0.118 in	3 mm	Shrouded - 4 Wall	Male Pin	2.2 A	Right Angle Through Hole	Phosphor Bronze	0.156 in	3.96 mm	118.1 µin	3 µm

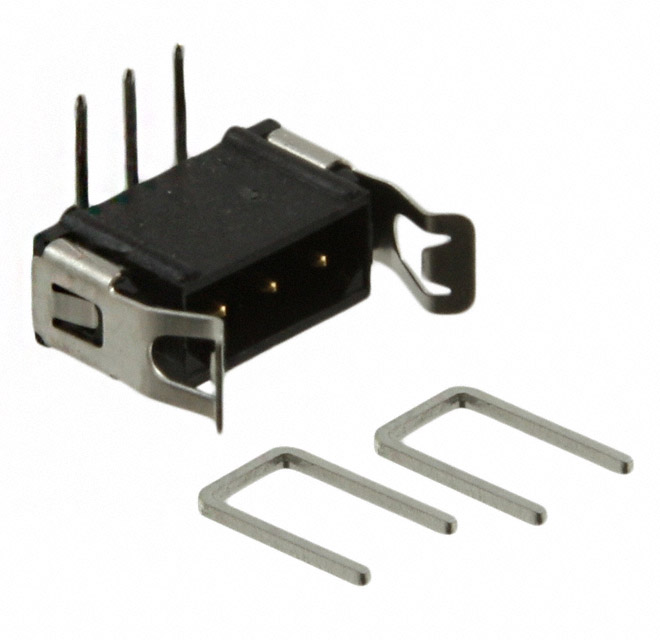

Harwin Inc. M80-8420342			Circular	Header	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Black	1	120 VDC	-55 C	125 °C	Tin	Board to Board Cable	Gold	Latch Lock	Strain Relief Clips	0.079 "	2 mm	All	UL94 V-0	Solder		0.118 in	3 mm	Shrouded - 4 Wall	Male Pin	2.2 A	Right Angle Through Hole	Phosphor Bronze	0.156 in	3.96 mm	118.1 µin	3 µm
